Home Wall Packs 11W/15W/21W/26W E110S Series Architectural LED Trapezoid Wallpack, CCT Selectable, 120-277V, 0-10V Dimming, Bronze Finish by Trace-Lite
Specification Sheet

11W/15W/21W/26W E110S Series Architectural LED Trapezoid Wallpack, CCT Selectable, 120-277V, 0-10V Dimming, Bronze Finish by Trace-Lite

$133.09

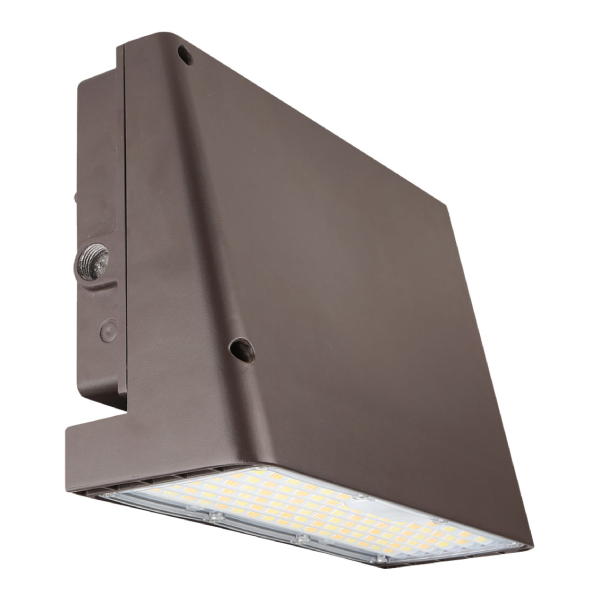

The E110S Series architectural trapezoid wallpack is designed for optimal light control and distribution. The die-cast aluminum construction provides ideal thermal management and durability. This series features field switchable power (3,800 to 14,500 lumens) and color temperature (3000K, 4000K and 5000K CCT). The E110S has a zero uplight design to eliminate light pollution and is offered with battery backup and photocontrol options. It is UL Listed for Wet Locations and is DesignLights Consortium® (DLC) PREMIUM Qualified for maximum energy savings and utility rebates. This series is ideal for new constructions or retrofit applications.


Brand :
Trace-Lite
Model Number :
E110S-26-CP-BR
Style :
Full Cut Off
Optics :
Not Available
Mounting :
Fixed Wall Mount
Watts :
Selectable 11W/15W/21W/26W
Lumens :
1,882 - 3,800 lm
Voltage :
120-277V
Color Temperature :
3000K, 4000K, 5000K, Selectable
CRI :
80+
Finish :
Bronze
Dimmable :
Yes
Ratings :
Wet Location
Certifications :
DLC Premium, UL Listed
Dimensions (L x W x H) :
13.10" x 10.40" x 9.60"
