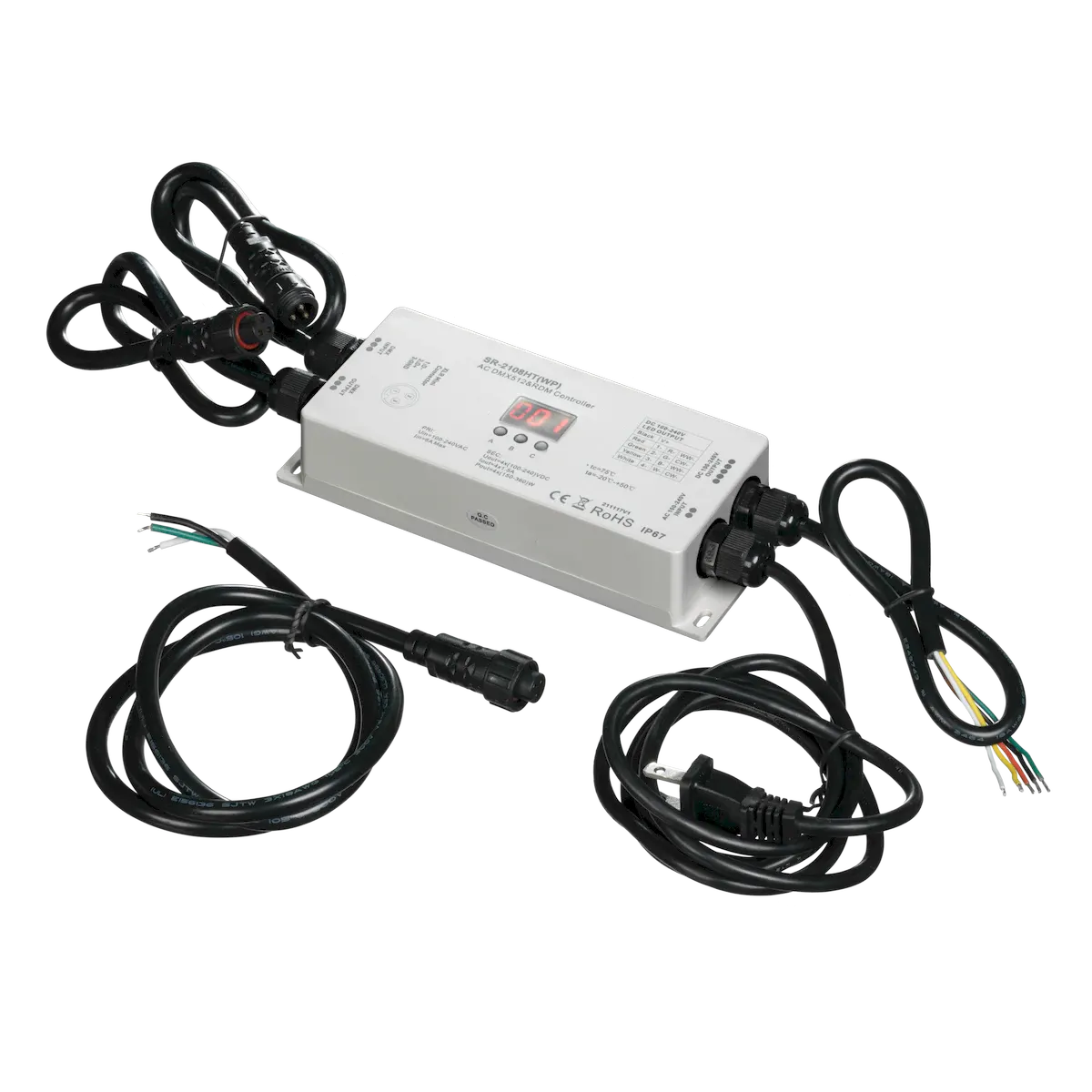

120-CTRL-4CH 120V DC DMX Decoder by American Lighting

120V DC output DMX 512 controller with out door rating housing and wiring junction box included.

• RDM enabled DMX controller
• Output for high voltage DC100~240V DC LED
• Standard DMX512 compliant control interface
• With digital display
• Total 4 channels LED output, common anode
• DMX address manually settable
• DMX channel quantity from 1CH~4CH settable
• Output PWM frequency from 500HZ ~ 35K HZ settable, but do not set it higher than 3KHz.
• Output dimming curve gamma value from 0.1 ~ 9.9 settable
• Waterproof grade: IP67

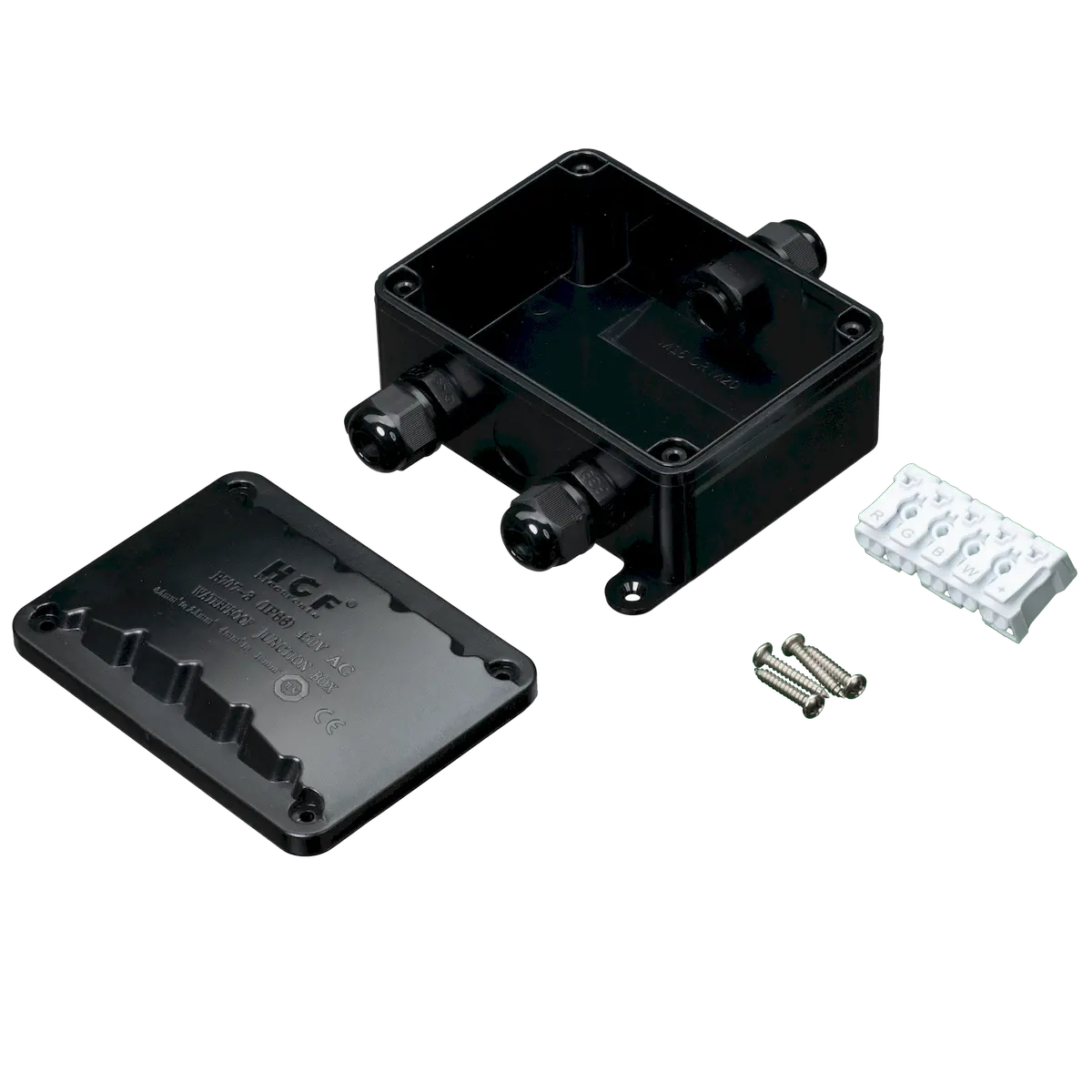

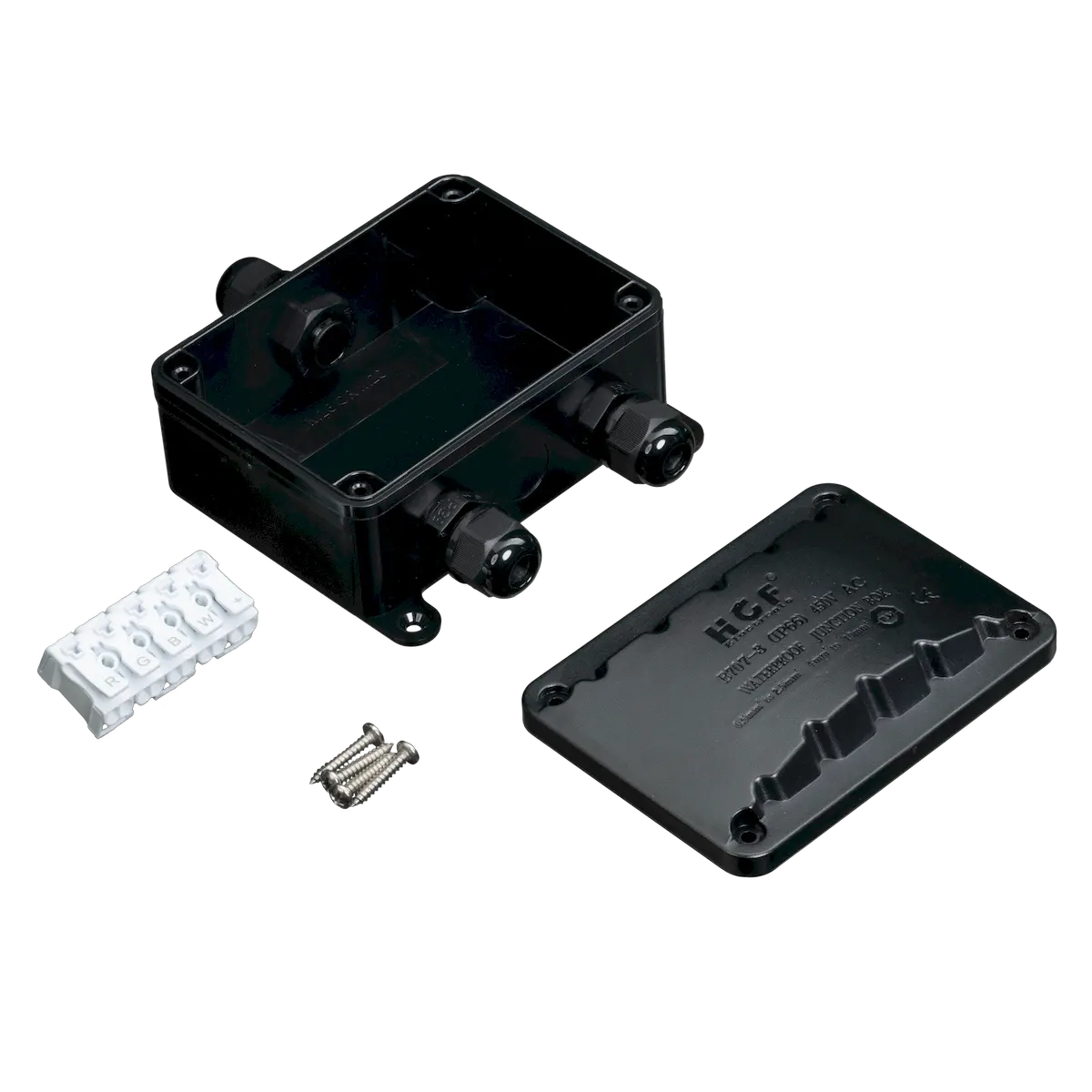

• Includes watertight junction box for cable connections
