Home Emergency 12W SmartSafe 2-Piece LED Emergency Backup Driver and Battery by Keystone
Specification Sheet

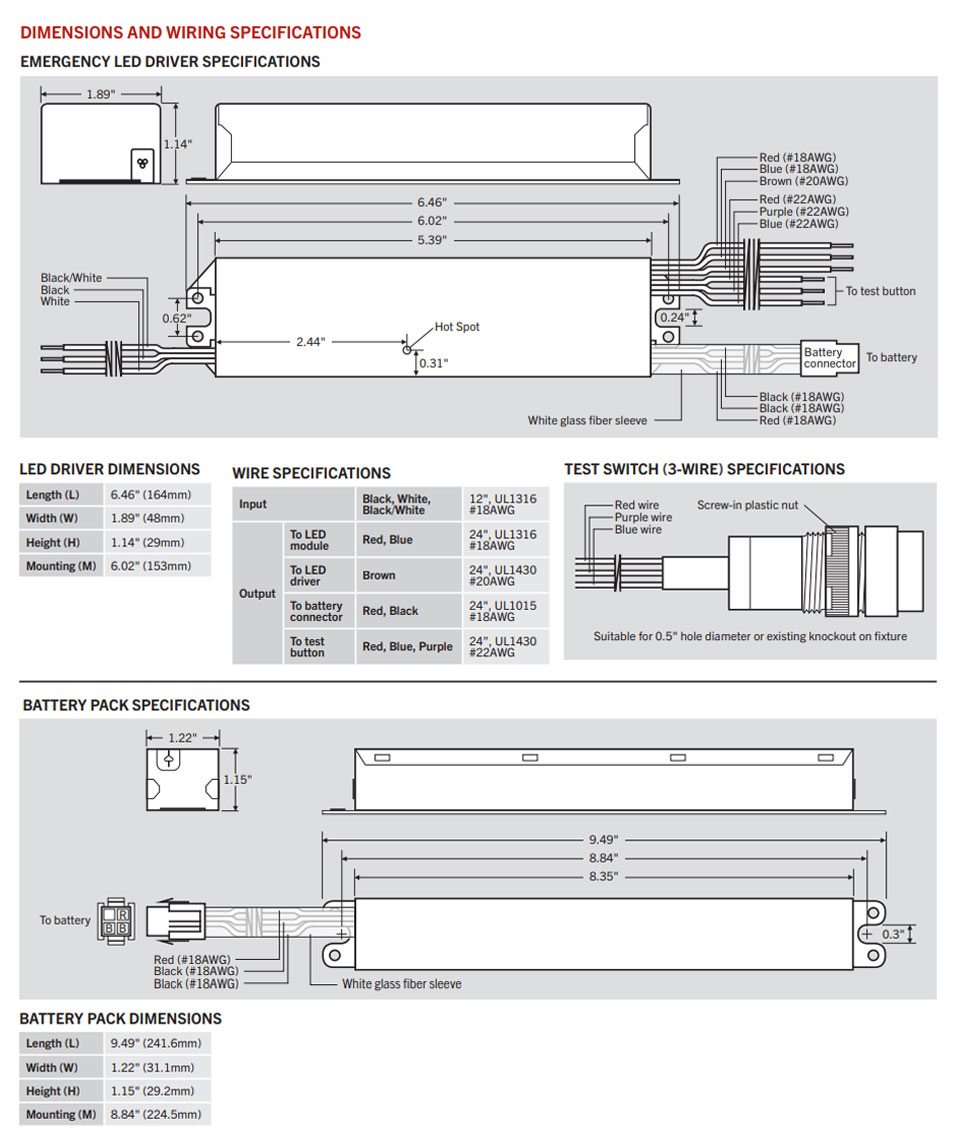

Dimensions

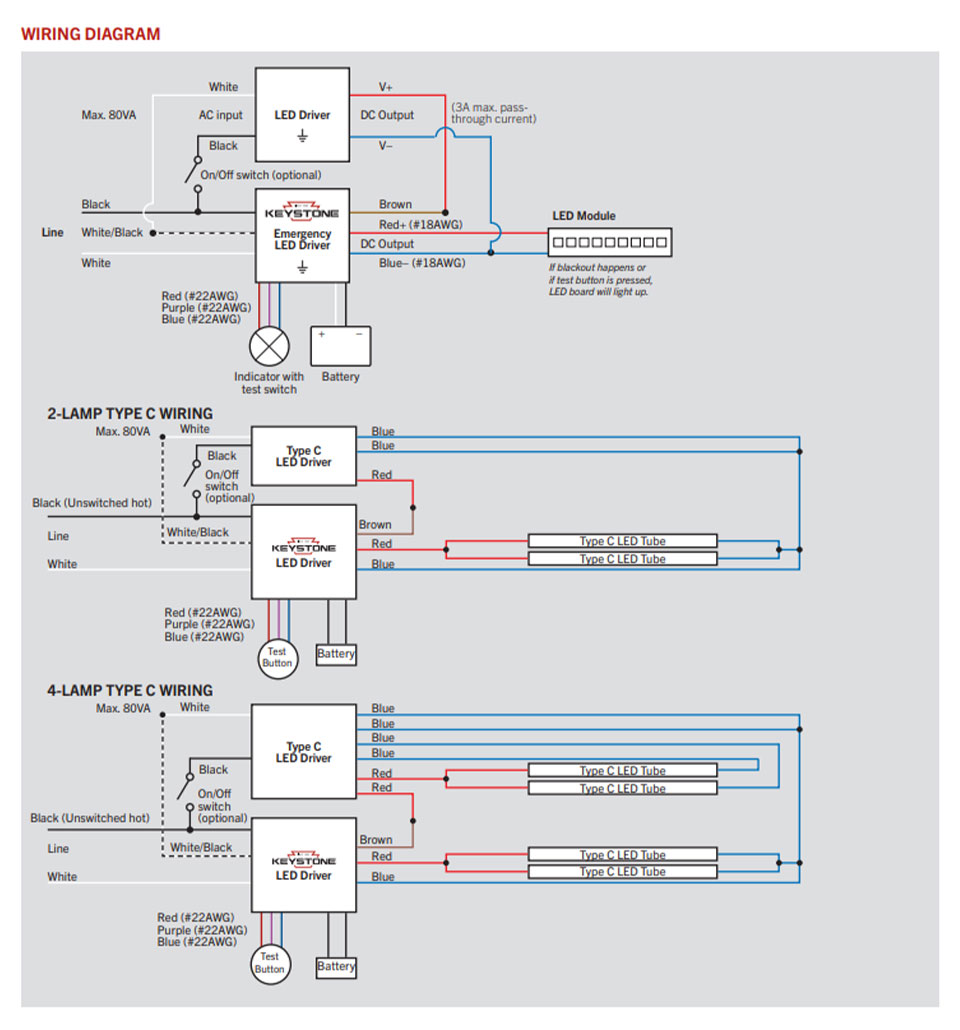

Wiring Diagram

12W SmartSafe 2-Piece LED Emergency Backup Driver and Battery by Keystone

$220.67

Keystone’s Smart Safe LED emergency battery backup line offers a dependable solution for virtually every LED lighting application, with options tailored for both new fixture constructions and field installation applications to convert them from standard to emergency fitting

  • LED Emergency Back-Up Driver
  • 12W Max. Output Power
  • 120-277V Input Voltage
  • 20-60V Output Voltage
  • 250-600mA Output Current
  • 2-Piece Driver and Battery Solution
  • UL 924, RoHS Compliant
  • 5 years warranty
Model No. KT-EMRG-LED-12C-1200
UPC No. 843654103112




SKU :
KT-EMRG-LED-12C-1200
Brand :
Keystone
Max Wattage :
12W
Input Voltage Range :
120-277V
Output Voltage :
20-60V
Current Range :
250-600mA
Certifications :
UL 924, RoHS, cULus
Classification :
Class 2
CEC Compliant :
Yes
Illumination Time :
90 min
Power Factor :
≥ 0.5
Dimmable :
No
Wire Type :
Standard Wire Leads
Mounting Method :
Ceiling Mount, Adhesive Mount
Dimensions (L x W x H) : :
6.46" x 1.89" x 1.14"
