1.5-Meter 40W Adapter Single Color OnCloud LED Powertape 800 Kit by Liteline

From : $194.05

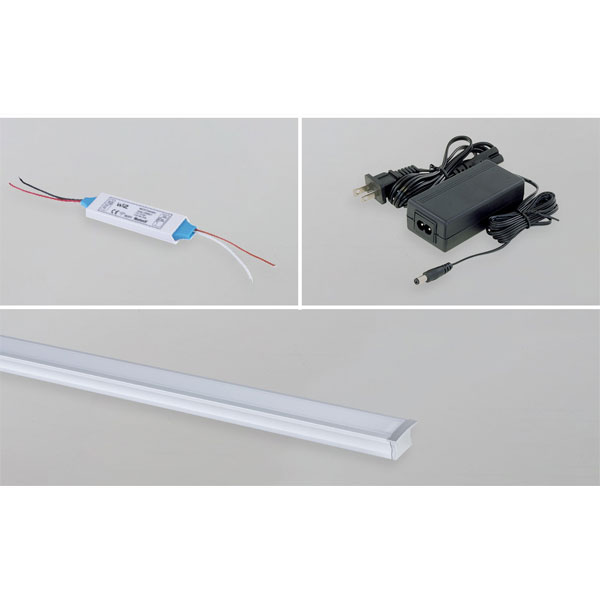

The Powertape 800 Kit includes Tape at selected length, LED driver, OnCloud Adapter, low-voltage powerfeed, and extrusion (optional). This LED tape provides ample illumination for residential, retail and commercial general illumination. Suitable for dry locations.

  • Lighting Performance - Available in 2500 lumens per meter, this high density LED tape maintains uniform intensity. Single CCT options 2700 K, 3000 K, 3500 K and 4000 K producing up to 2500 lumens per meter at 3500 K.
  • Color Temperature - Single CCT options 2700 K, 3000 K, 3500 K and 4000 K, with 90+ CRI.
  • Lumen Maintenance - LEDs reduce ongoing maintenance, has a rated life of over 50,000 hours.
  • Power Consumption - Operates as a constant voltage load at 24VDC, and consumes 30 Watts per meter.
  • Dimming - The LED tape is Wi-Fi dimmable when used with our OnCloud Adapter / High Power Oncloud Adapter (sold separately). See page 2 for driver options. Note: Not compatible with standard dimmers.
  • Beam Spread - This LED tape features a 120° linear beam spread to provide eve light distribution.
  • Mounting - This flexible LED tape is provided with a 3M® high bond adhesive backing that provides secure mounting to smooth surfaces.
  • Environment - Suitable for dry locations; IP20 rated.
  • LED Driver - 24V DC driver available as plug-in or hardwire, with a DC 2.1 connector. Drivers feature open and short circuit protection, and over voltage protection.
  • OnCloud Adapter / High Power OnCloud Adapter - An integrated constant voltage LED driver and a Wi-Fi + Bluetooth controller module. Available in 40W and 96W.
  • Kit Includes - Tape at selected length with powerfeed • LED driver • 24V 1-channel OnCloud adapter • DC 2.1 jack low-voltage powerfeed • Extrusion with lens and end caps (optional)



* When used with OnCloud Driver Kit
Color Temperature :
Driver :
Lens + Channel :
Brand :
Liteline
Model Number :
TP-0140-xx30-OCKIT
Type :
Traditional
Mounting :
Self-Adhesive Tape
Input Voltage :
24V
Environment :
Interior
CRI :
90+
Color Temperature :
2700K, 3000K, 3500K, 4000K
Lumens per Foot :
750 lm
Dimmable :
Other
Watts per Foot :
9.14W
Beam Angle :
120°
Maximum Distance :
3.2 ft.
Ratings :
Dry
