150W PrimaVolt No Minimum Load Dimmable Driver with Junction Box by Alloy LED

$225.00


PrimaVolt No Minimum Load Dimmable Drivers with Junction Box provide the smoothest, most stable, and most efficient power and dimming capability in our line of power supplies.

  • 150W PrimaVolt® Dimmable Driver
  • Compatible with leading- and trailing-edge ELV, MLV, and incandescent dimmers, and on/off switches
  • Wide-range compatibility, flicker-free dimming

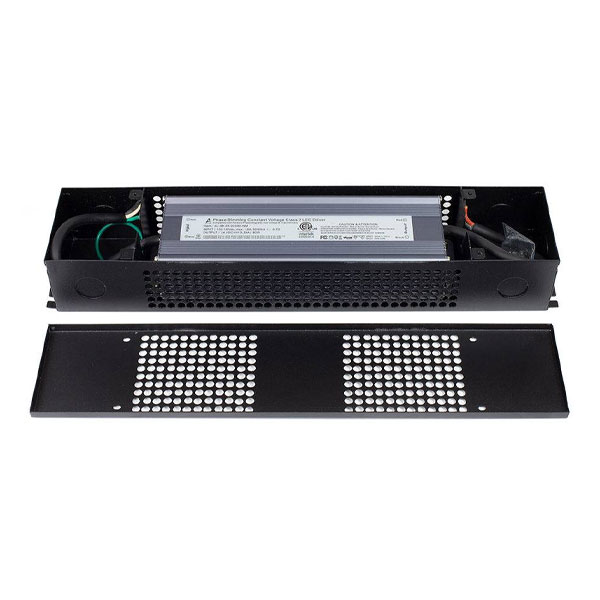

  • Includes ETL Listed junction box
  • Short circuit and over current protection
  • Air-cooled for longer life
  • Dry/damp location (IP20)

Note: For an inspection-ready solution, Alloy LED recommends using the included junction box.


SKU :
AL-98-03-24150-NM
Brand :
Alloy LED
Max Wattage :
150W
Input Voltage Range :
120V
Output Voltage :
24V
Current Range :
6250mA
Default Current :
6250mA
Dimmable :
ELV, Leading Edge, MLV, Trailing Edge
Dimming Range :
0-100%
Weight :
3.99

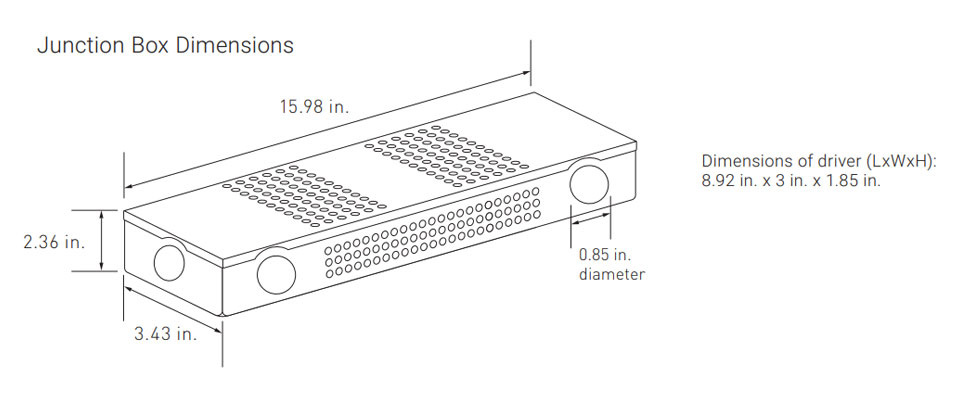

Dimensions (L x W x H) :
15.98" x 3.43" x 2.36"
