Home Light Bulbs 2' U-Bend LED T8 Type A+B Dual Mode Lamp, Power & Color Selectable, White Finish by Eiko
Specification Sheet
Installation Instructions

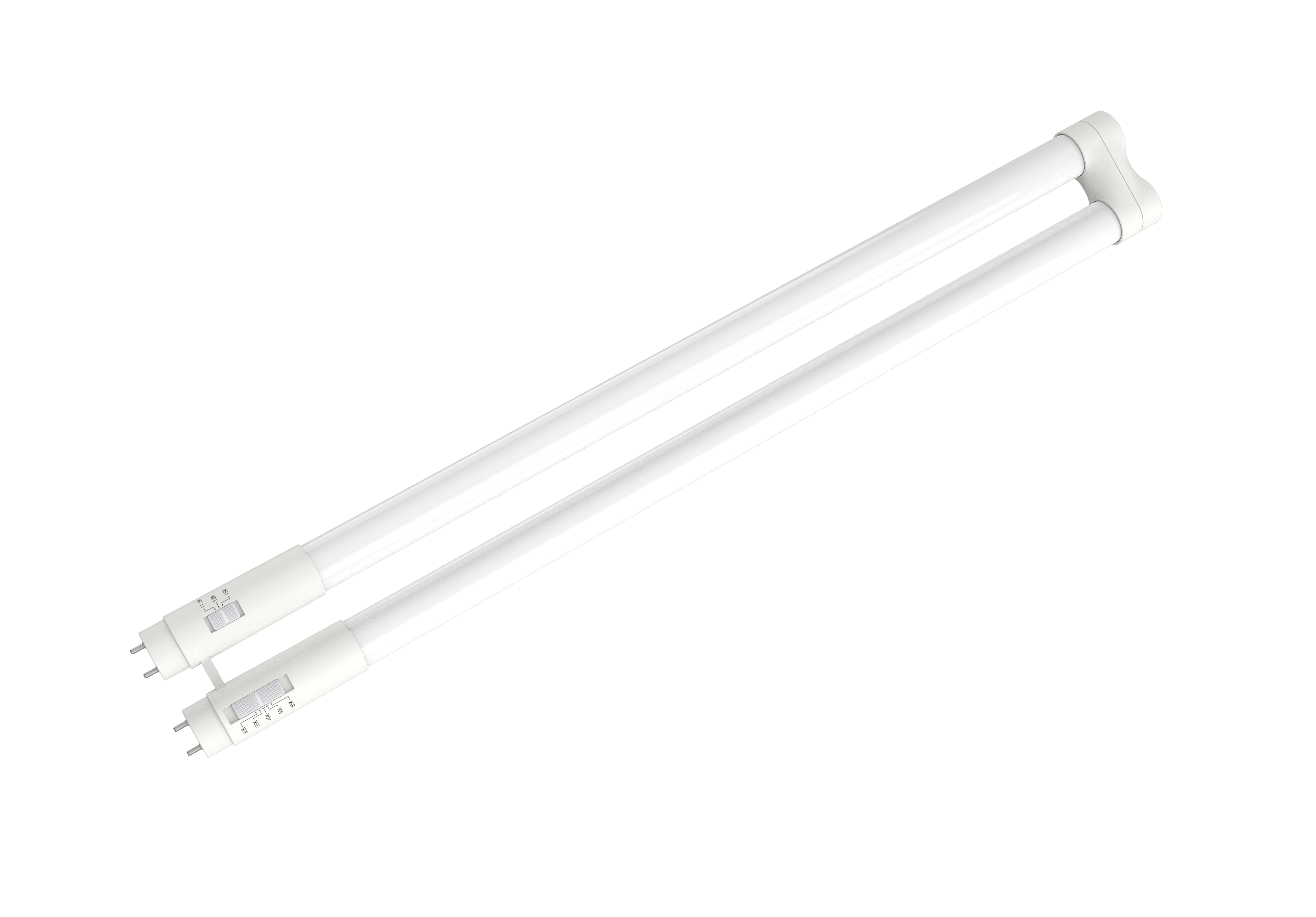

2' U-Bend LED T8 Type A+B Dual Mode Lamp, Power & Color Selectable, White Finish by Eiko

$39.28

  • LED T8 Type A+B Dual Mode lamps easily replaces existing T8 fluorescent lamps in two ways: either by working with the existing fluorescent ballast (Type A) or bypassing the ballast and wiring directly to line voltage (Type B)
  • Internal LED driver (when using the Type B installation method) means no need to replace a ballast resulting in long-term maintenance savings
  • No socket changes when using shunted sockets for Type A applications
  • For Type A installation, functions on most electronic T8 (instant & programmed) and battery backup ballasts
  • Instantaneous full light output upon power-up
  • Wide illumination angle provides 330° of light distribution
  • Glass material for better light transmission on linear lamps
  • Frosted glass lens reduces visual glare and provides optimal heat dissipation
  • FC8 and FC12 replacements available in rugged plastic to reduce breakage

Brand :
Eiko
Model Number :
LPS15T8/U1/ABSDG/U/FCCT
Shape Type :
T8, Type A +B Hybrid, U-Bent
Base :
G13
Watts :
Selectable 15/13/11.5W
Lumens :
2,200/2,000/1,800 lm
Color Temperature :
3000K, 3500K, 4000K, 5000K, 6500K, Color Selectable
CRI :
80
Input Voltage :
120-277V
Dimmable :
Yes
Beam Angle :
330°
Environment :
Damp Location
Ratings :
RoHS, FCC, UL Listed
Safety Certification :
UL 924
Dimensions (L x W x H) : :
22.4" x 2" x 1.6"
