Home High and Low Bays XFit 14" Round 200W LED High Bay by Keystone
Specification Sheet

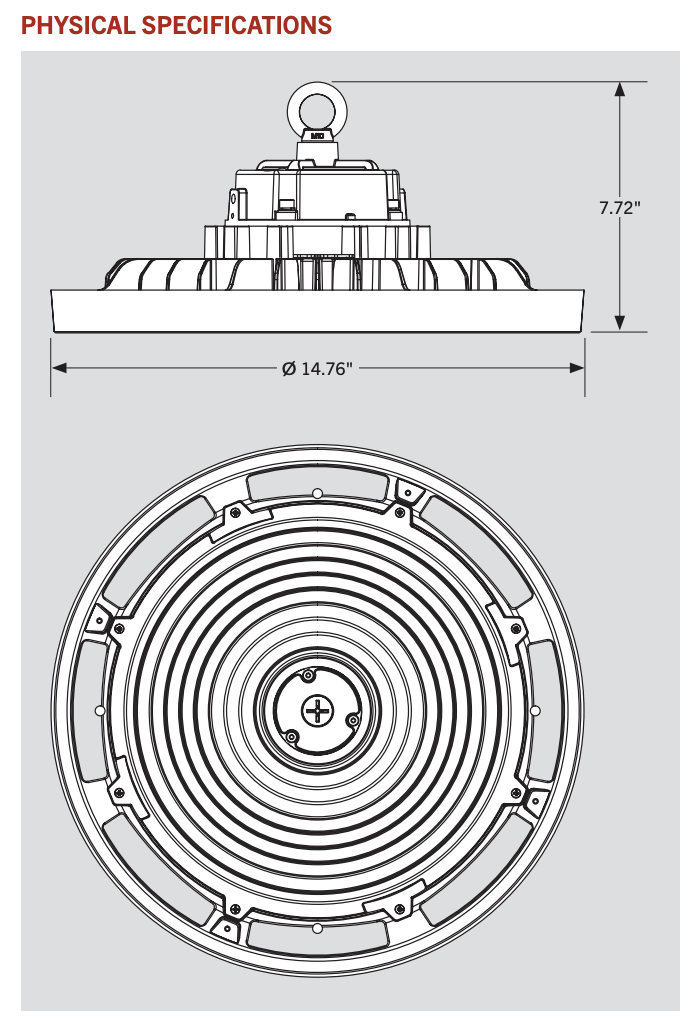

Dimensions

XFit 14" Round 200W LED High Bay by Keystone

From : $329.25


200W Dimmable Compact Round LED High Bay Fixture used for commercial and industrial high bay lighting applications.

  • Designed to accept easy screw-in installation of optional sensors
  • Powered by Keystone 0–10V dimming LED driver
  • Ring-bolt mounting accessory included
  • 6' cord for input and dimming wires
  • Powder-coated aluminum housing; Polycarbonate lens
  • Ribbed lens to reduce glare
  • Low optical flicker
  • Built-in 6kV surge protection
  • LED lifetime: L70 >100,000 hours @ 25°C fixture ambient
  • Ambient operating temperature: −40°C/−40°F to 50°C/122°F
  • IP65 rated, wet location
  • Listed on QPL DLC, Premium




Color Temperature :
Sensor :
Sensor Remote Control :
Emergency Battery Backup :
Wire Guard :
Mounting Accessories :
Reflector :
Stepdown Transformer :
Brand :
Keystone
Model Number :
KT-RHLED200-14C-8
Type :
UFO
Lumens :
31,800 lm,32,000 lm
Watts :
200W
Voltage :
120–277V
Color Temperature :
4000K, 5000K
CRI :
80+
Optics :
Wide
Mounting :
Ceiling, Pendant
Environment :
IP65, Wet Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
IP65, Wet Location
Safety Certification :
DLC 5.1 Premium
Dimensions (L x W x H) :
14.76" x 14.76" x 7.72"
Weight :
9.99
