Home Canopy & Parking Garage 20/30/40W Ace LED Canopy 2, 30/40/50K, 120-277V, Bronze Finish by LinmoreLED

Specification Sheet
Installation Instructions

20/30/40W Ace LED Canopy 2, 30/40/50K, 120-277V, Bronze Finish by LinmoreLED

$101.40

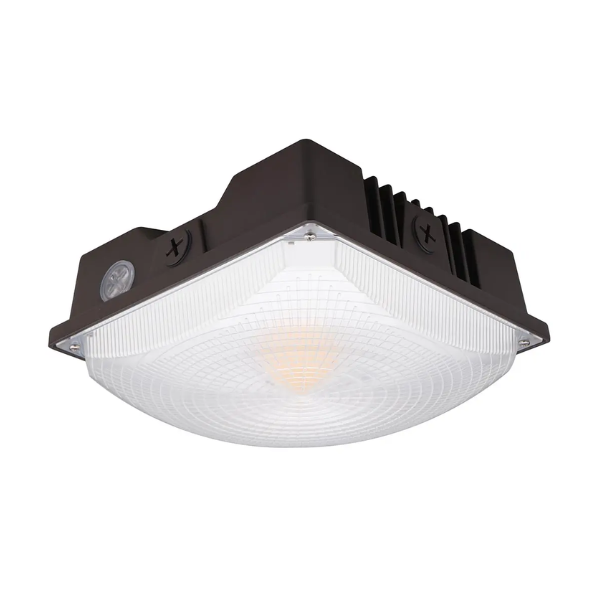

The new Ace LED Canopy (AC2) is made to last with its rugged aluminum die-cast housing and shatter-resistant lens. A silicon-sealed gasket ensures dust, water, and contaminants do not enter the fixture. Its integrated photocell makes this fixture perfect for energy-saving projects in all canopy and parking garage applications.

  • 3000/4000/5000K CCT & 20/30/40W Wattage Selectable
  • 2,500 - 5,400 Lumens
  • Up to 135 LPW
  • Up to 45°C (113°F) Ambient
  • Die-Cast Aluminum Housing and Heatsink
  • Shutter Resistant Lens
  • Silicon Sealed Gasket
  • 120-277V Input Voltage
  • 0-10V standard. Dimming range 100% to Off.
  • 80+ standard CRI
  • Clear ribbed polycarbonate. 150° beam angle.
  • 5 Year Warranty

Brand :
LinmoreLED
Shape :
Square
Distribution :
Wide
Mounting :
Pendant, Surface
Lumens :
2,500-5,400 lm
Watts :
20/30/40W
Input Voltage :
120-277V
Color Temperature :
Color Selectable, 3000K, 4000K, 5000K
CRI :
80+
Dimmable :
Yes
Finish :
Bronze
Ratings :
Wet Location
Safety Certification :
UL Listed, RoHS
Dimensions (L x W x H) :
8.04" x 8.04" x 3.67"
