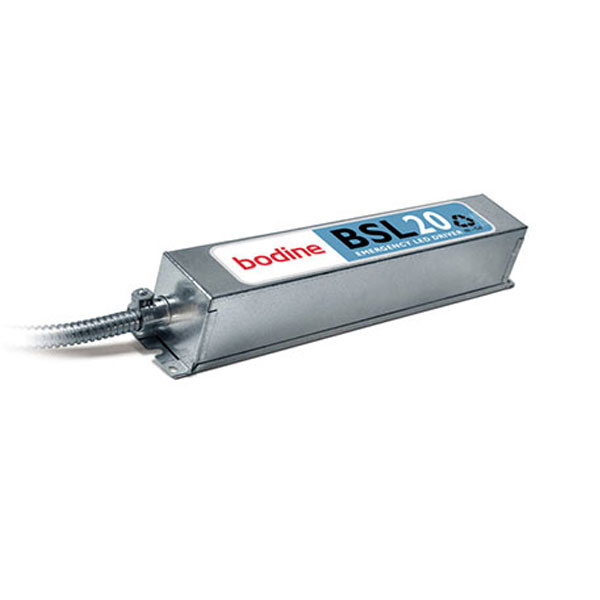

20W BSL20HV Emergency LED Driver by Bodine

$451.67

  • Smart Charger Technology for low energy consumption
  • Meets CEC Title 20 (California Energy Commission) efficiency standards
  • Listed for field or factory installation - UL 924 and CSA C22.2 No. 141 Emergency Lighting Compliant
  • Class 2 output - UL 1310 Certified, CSA 22.2 No 223-M91 compliant (BSL20LV only)
  • Emergency mode nominal lumen output of up to 2,600 lumens
  • Universal input (120-277 VAC)
  • 2 wire input to help reduce wiring errors
  • Auto-sensing output within each range
  • RoHS Compliant



  Note: Product has been discontinued by the manufacturer, but a replacement is available. Any orders of this product will be fulfilled with an equivalent substitute.


SKU :
BSL20HV
Brand :
Bodine
Max Wattage :
20W
Input Voltage Range :
120-277V
Output Voltage :
125-200V
Current Range :
160mA-100mA
Certifications :
UL 924 and CSA C22.2 No. 141, RoHS Compliant, CEC Title 20 (California Energy Commission)
Classification :
Class 2
CEC Compliant :
Yes
Illumination Time :
90 min
Power Factor :
Not Available
Dimmable :
No
Wire Type :
Single Flex Cable
Mounting Method :
Wall Mount, Ceiling Mount
Dimensions (L x W x H) : :
16.6" x 2.8" x 2.85"
