Home Constant Current 240W 4900mA ESM-240S670MT Programmable Constant Current Driver by Inventronics
Specification Sheet

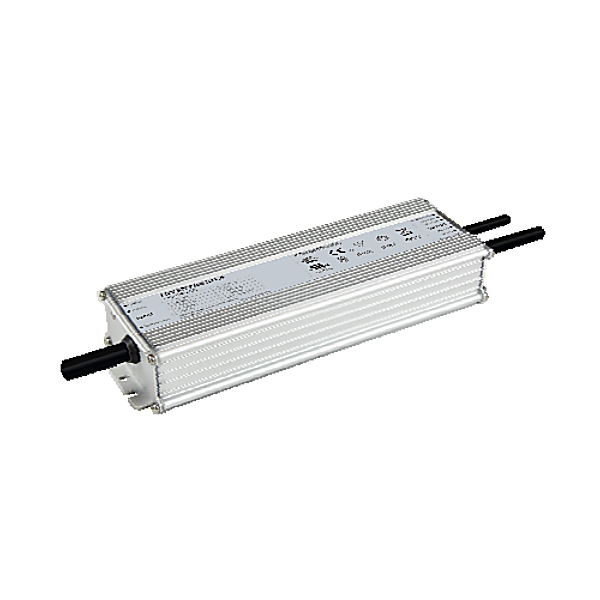

240W 4900mA ESM-240S670MT Programmable Constant Current Driver by Inventronics

$78.29

The ESM-240SxxxDx series is a 240W, constant-current, programmable and IP66/IP67 rated LED driver thatboperates from 249-528Vac input with excellent power factor. It is created for many lighting applications including high bay, high mast and roadway, etc. The high efficiency of these drivers and compact metal case enablesbthem to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.


Please specify the desired current output (mA) in the box below. If you do not know it, please specify the manufacturer and model number of the fixture or contact us for assistance.

SKU :
ESM-240S670MT
Brand :
Inventronics
Max Wattage :
240W
Input Voltage Range :
249-528V
Output Voltage :
18-57V
Current Range :
4200-6700mA
Default Current :
4900mA
Dimmable :
0-10V
Dimming Range :
10-100%
Dimensions (L x W x H) :
7.91" x 2.66" x 1.52"
