25W Auto-Select LED Emergency Battery Pack Inverter by Compass

$392.13

The Compass CPL25 is a 25 Watt LED battery pack that maintains 90 minutes of full Lumen output, compatible with switched and unswitched loads. It has full battery recharge in 32 hours after complete discharge.

  • Auto-Select 120/277VAC Input/Output
  • Remote Test Switch included standard
  • Damp Location Listed for 20°C - 40°C operation
  • Maintenance-free NiCd battery
  • Microprocessor-based controller encased in single polymer housing
  • Flexible Metal Conduit (FMC) houses all external wires for fixture connections



SKU :
CPL25
Brand :
Compass
Max Wattage :
25W
Input Voltage Range :
120V, 277V
Output Voltage :
120V, 277V
Current Range :
90mA, 208mA
Certifications :
cULus, NFPA 101, NFPA 70
Classification :
Not Available
CEC Compliant :
No
Illumination Time :
90 min
Power Factor :
Not Available
Dimmable :
No
Wire Type :
Not Available
Mounting Method :
Ceiling Mount, Remote Mount

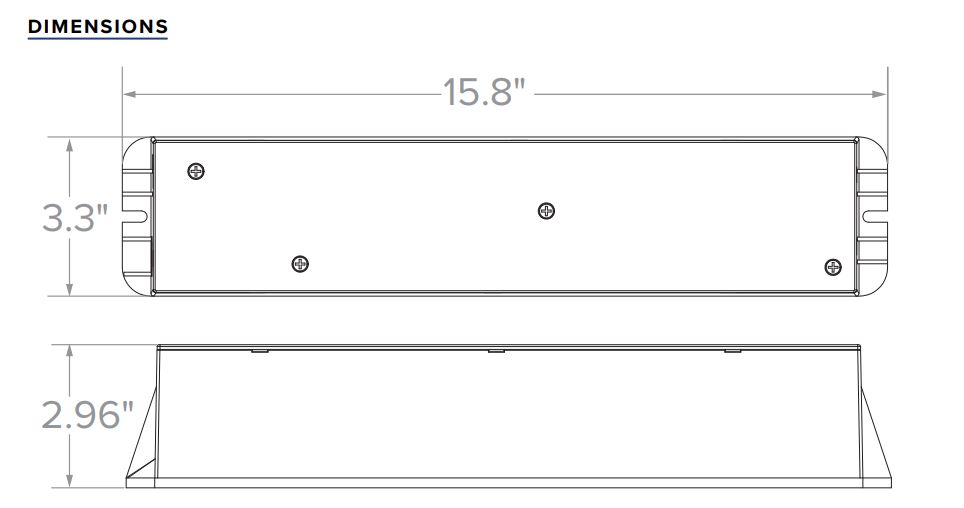

Dimensions (L x W x H) : :
15.80" x 3.30" x 2.96"
