2x2 FluxPanel Selectable Recessed LED Backlit Panel, 2,700/3,800/4,500 lm, 35/40/50K, 120-277V, 0-10V Dimming, White Finish by Day-Brite
$45.00

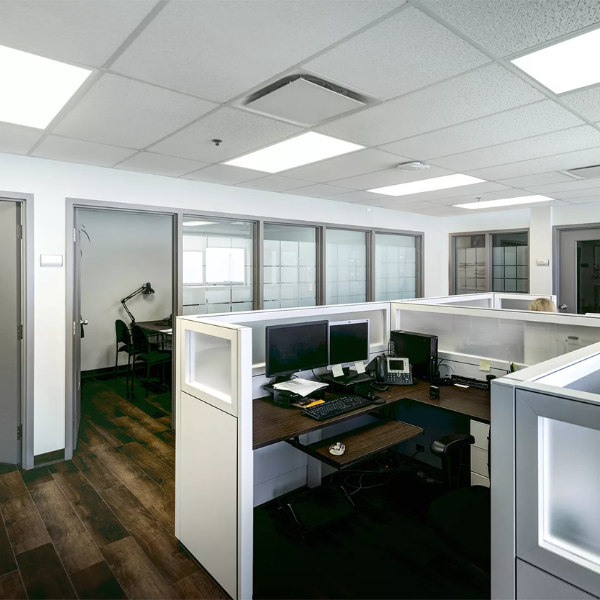

Day-Brite/CFI Selectable backlit panel is a highly versatile luminaire designed to provide three lumen and three CCT packages per size. Available for use in recessed and surface mount applications, the SBP is a versatile luminaire that is ideal for general lighting applications such as open office, schools, healthcare, and retail.
- Overall 1-1/2" deep luminaire, including driver box, provides minimal intrusion into the plenum space
- CCT can easily be selected in the field between 5000K, 4000K, or 3500K.
- Extruded aluminum frame post painted with gloss white enamel finish
- Standard configurations are 0-10V dimming to 5%
- Back-lit LED arrays with optics provide highly efficient and unpixilated transfer of light to the lens
- Wattage selection allows for easy field selection between three lumen packages
- Suitable for Damp Locations
- 5-Year Limited Warranty
Brand :
Day-Brite
Model Number :
2SBP2035L8DS-2-UNV-DIM
Type :
Back Lit
Size :
2x2
Lumens :
Selectable 2,700/3,800/4,500 lm
Watts :
Selectable 30/35/40W
Color Temperature :
3500K, 4000K, 5000K, Color Selectable
CRI :
80+
Voltage :
120-277V
Driver :
0-10V
Dimmable :
Yes
Environment :
Damp Location
Ratings :
Damp, DLC Standard, IC
Safety Certification :
CSA, FCC, UL Listed
Dimensions (L x W x H) :
23.75" x 23.75" x 1.25"
