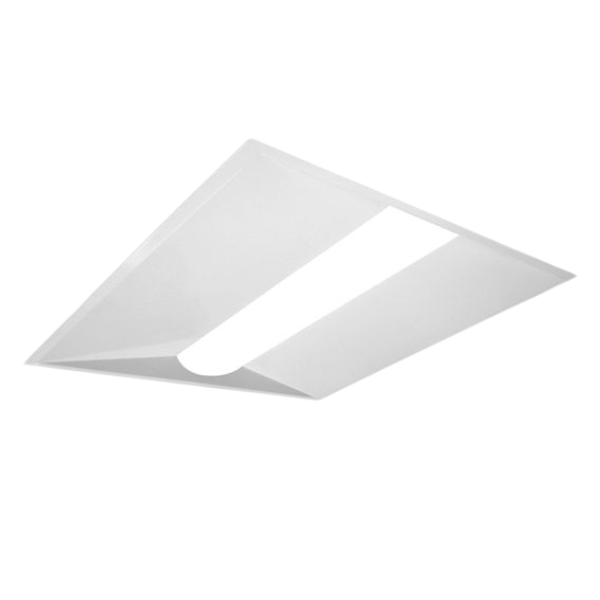

2x2 TACS2 Series Architectural LED Troffer, 3CCT, White Finish (2-Pack) by Nicor

$176.58

The NICOR TACS2 Series Selectable Architectural LED Flat Panel Troffer delivers versatile, high-performance illumination with easily adjustable color temperature and brightness settings in a single unit. Its ultra-thin, lightweight profile allows for effortless handling and installation directly into grid ceilings. Designed with a sealed, precision lens and a backlit system, it provides smooth, glare-free light distribution without shadows or hotspots while keeping out dust and debris. Insulation-contact rated and compatible with standard dimming systems.

  • Includes one 2-pack of NICOR's architectural LED troffers (TACS222U)
  • Three selectable color temperatures (3500K, 4000K, and 5000K)
  • Three selectable wattage settings (20W, 25W, and 30W)
  • Dual-Voltage driver compatible with 120V and 277V applications
  • Equipped with 1-10VDC full-range dimming
  • Matte white powder-coat finished steel frame
  • Precision-engineered acrylic diffuser lens
  • Integrated grid tie clips and suspension wire outlets
  • Protected by NICOR’s 5-year limited warranty

Brand :
Nicor
Model Number :
TACS222U-2PK
Type :
Flat Panel
Size :
2x2
Lumens :
Selectable 2,729-4,118 lm
Watts :
Selectable 20/25/30W
Color Temperature :
3500K, 4000K, 5000K, Color Selectable
CRI :
80+
Voltage :
120-277V
Driver :
0-10V
Dimmable :
Yes
Environment :
Damp Location, IC Rated, Indoor
Ratings :
Damp, DLC Standard, IC
Safety Certification :
FCC, RoHS Compliant, UL Listed
Dimensions (L x W x H) :
23.7" x 23.7" x 2.75"
