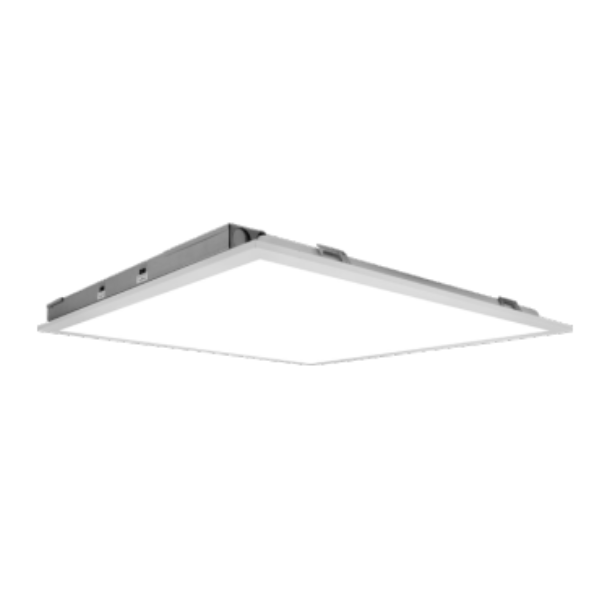

Home Troffers 2x2 TGL4 20/25/30W LED Backlit Troffer, 3CCT, Sensor Ready, White Finish (4-Pack) by Nicor

Specification Sheet

2x2 TGL4 20/25/30W LED Backlit Troffer, 3CCT, Sensor Ready, White Finish (4-Pack) by Nicor

$316.58

The NICOR TGL4S Series Premium LED Troffer delivers high-performance commercial lighting with built-in controls-ready flexibility via an integrated sensor socket for wireless systems. Engineered with a sealed, maintenance-free chamber and a spacious junction box, it keeps out dust and debris while streamlining installation. Featuring selectable color temperature settings and adjustable lumen output options, it provides fully customizable illumination tailored to any space. DLC 5.1 Premium certified and ideal for offices, healthcare, and commercial facilities, this versatile fixture offers long-lasting efficiency and advanced lighting management.

  • Durable stamped steel housing
  • Selectable CCT: 3500/4000/5000K
  • Selectable Wattages: 20/25/30W
  • 80 CRI
  • Input voltage: 120-277V
  • White finish
  • Sensor-ready socket for field-installable sensors
  • Operating temperature range: -4°F to 104°F (-20°C to 40°C)
  • Dim-to-off dimming via 0-10VDC controls
  • cULus 1598 Listed for damp locations
  • 5-year limited system warranty standard

Brand :
Nicor
Model Number :
TGL42230SUS8S-4PK
Type :
Back Lit, Flat Panel
Size :
2x2
Lumens :
Selectable 2,484-3,871 lm
Watts :
Selectable 20/25/30W
Color Temperature :
3500K, 4000K, 5000K, Color Selectable
CRI :
80+
Voltage :
120-277V
Driver :
0-10V
Dimmable :
Yes
Environment :
Damp Location, IC Rated, Indoor
Ratings :
Damp, DLC Standard, IC
Safety Certification :
FCC, RoHS Compliant, UL Listed
Dimensions (L x W x H) :
23.74" x 23.74" x 1.46"
