3" NU3QD PRO Series Square Downlight Warm Dim by Alphabet Lighting
From : $264.25
- 3/4" bezel regress with 1/16" micro flange
- 65° - 80° optical beam control
- UGR < 20
- Up to 62 LPW
- Glare control, specialty optics, trim options, and custom finishes available
- Microban® antimicrobial finish available on all exposed painted surfaces
- 120V-277V, 120 only Triac / ELV
- Power factory ≥ 0.9
- 2kV driver input surge protection
- Remote emergency test switch
- 7W, 10W (T20 CEC) and 12W EM 90min battery
- Max. ambient installation temperature 95°F (35°C)
Brand :
Alphabet
Model Number :
NU3QD-WD-3018-97
Style :
Fixed Recessed
Aperture Size :
3"
Shape :
Square
Lumens :
800 - 2,360 lm
Watts :
13-40W
Input Voltage :
120-277V
Color Temperature :
Dim-to-Warm
CRI :
90+
Beam Angle :
65°, 75°, 80°
Housing :
IC Rated, IC Box with Chicago Penum Rating
Dimmable :
Yes
Trim Finish :
White, Black
Baffle Finish :
Ratings :
Chicago Plenum, Damp, IC, Non-IC, Wet
Safety Certification :
CSA, UL Listed

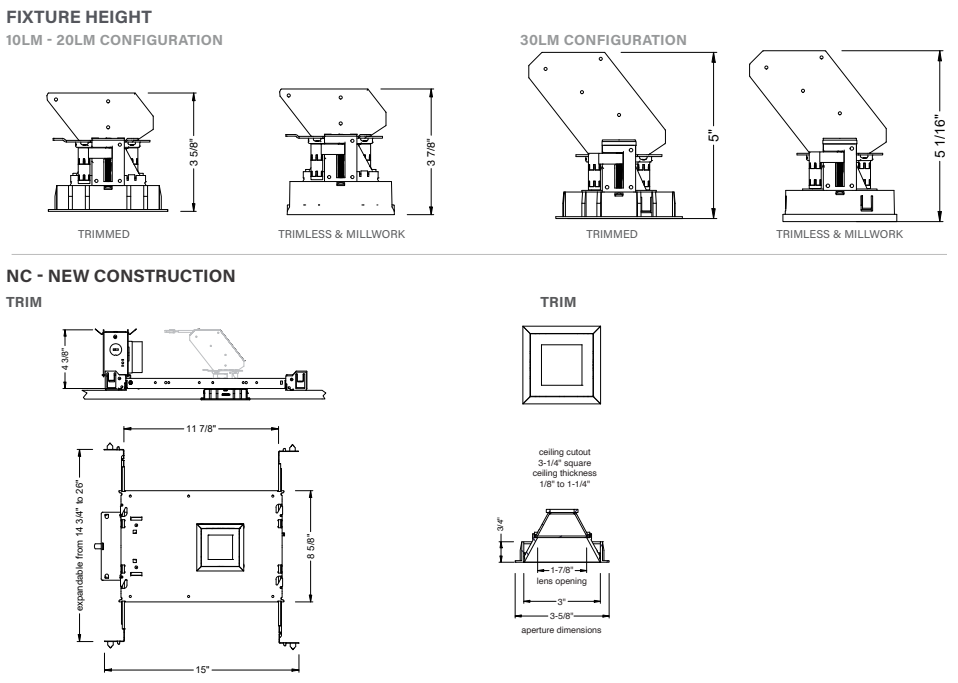

Dimensions (L x W x H) :
3.625" x 3.625" x 3.625"
