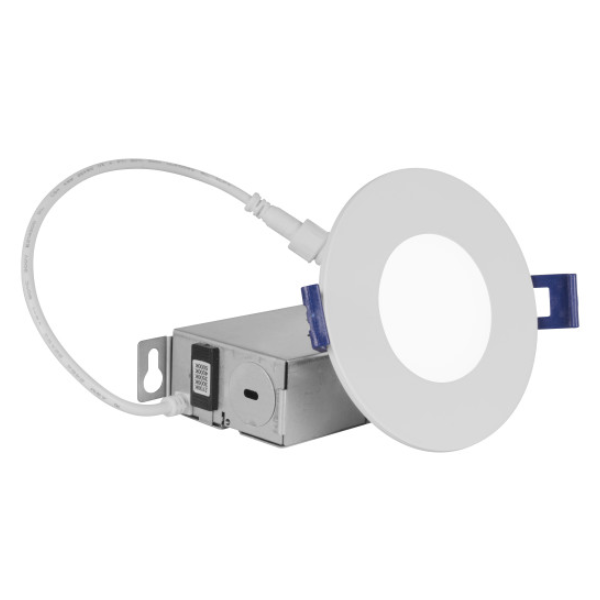

3" REL Series LED Wafer Downlight, 5CCT, White Finish by Nicor

$31.58

The NICOR REL Series 3-inch Round Canless LED Downlight features an ultra-thin, edge-lit design measuring under an inch deep. Its off-board driver includes a field-selectable CCT switch (2700K–5000K), smooth dimming capabilities, and high-performance color accuracy (92 CRI, R9 > 50). Installing directly into drywall using spring-loaded tabs and the included 3.25-inch template, it requires no recessed housing or separate junction box. Backed by a 5-Year Limited Warranty, this ready-to-install kit offers flexible placement and superior thermal management.

  • Includes White downlight, driver/junction box, and linking cable
  • Five selectable color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K)
  • Available in four sizes: 3-inch, 4-inch, 6-inch, and 8-inch fixtures
  • Installs directly into ceiling, no housing required
  • 3.25” diameter cut-out template included
  • Dimmable to 5% using standard TRIAC or ELV dimmers
  • Protected by NICOR's 5-year limited warranty

Brand :
Nicor
Model Number :
REL31120SRDWH
Style :
Fixed Recessed
Aperture Size :
3"
Shape :
Round
Lumens :
553-616 lm
Watts :
8W
Input Voltage :
120V
Color Temperature :
2700K
CRI :
90+
Beam Angle :
111°
Housing :
Canless, Shallow - Low Profile
Dimmable :
Yes
Trim Finish :
White
Ratings :
Airtight, IC, JA8, Title 24, Wet
Safety Certification :
ETL Listed, FCC, RoHS Compliant
Dimensions (L x W x H) :
3.8" x 3.8" x 1.04"
