Home Lighting Controls 3-Way Electronic Countdown Timer, Programmable, 120-277V, SPST, White Finish by Intermatic
Specification Sheet
Installation Instructions

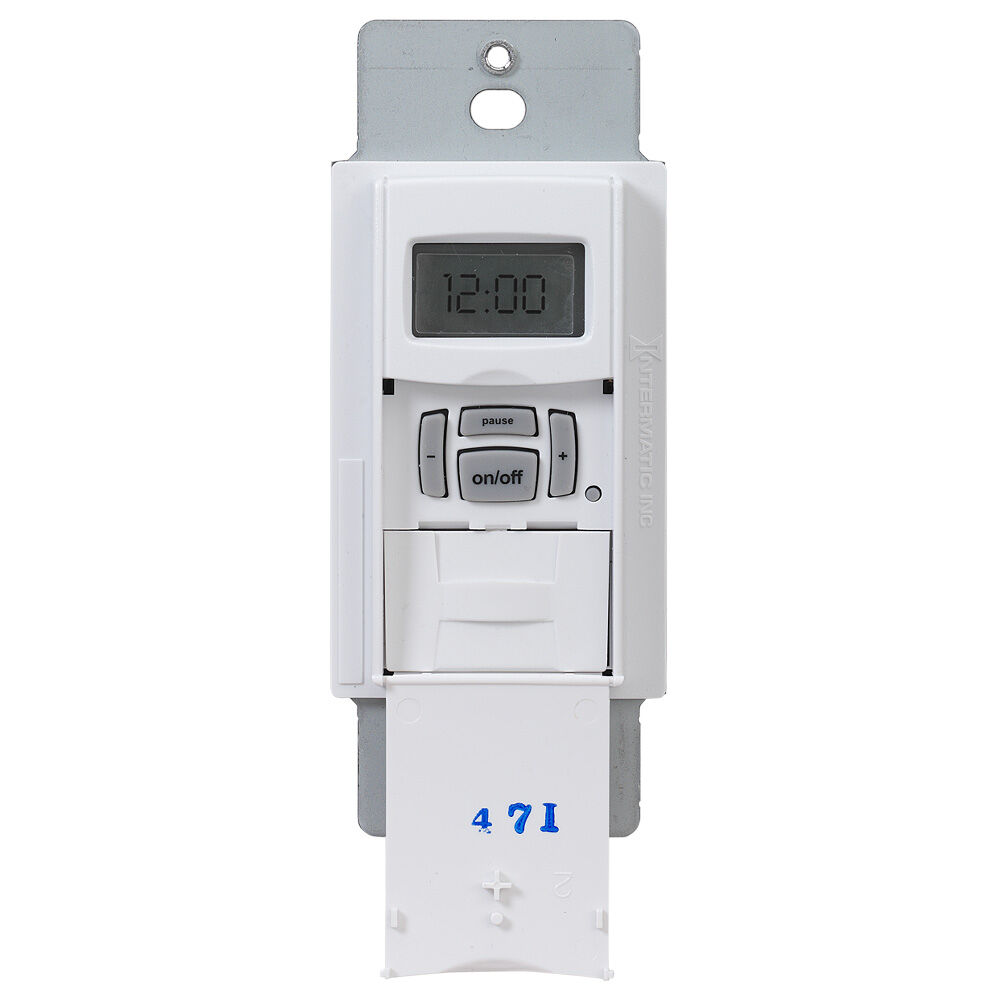

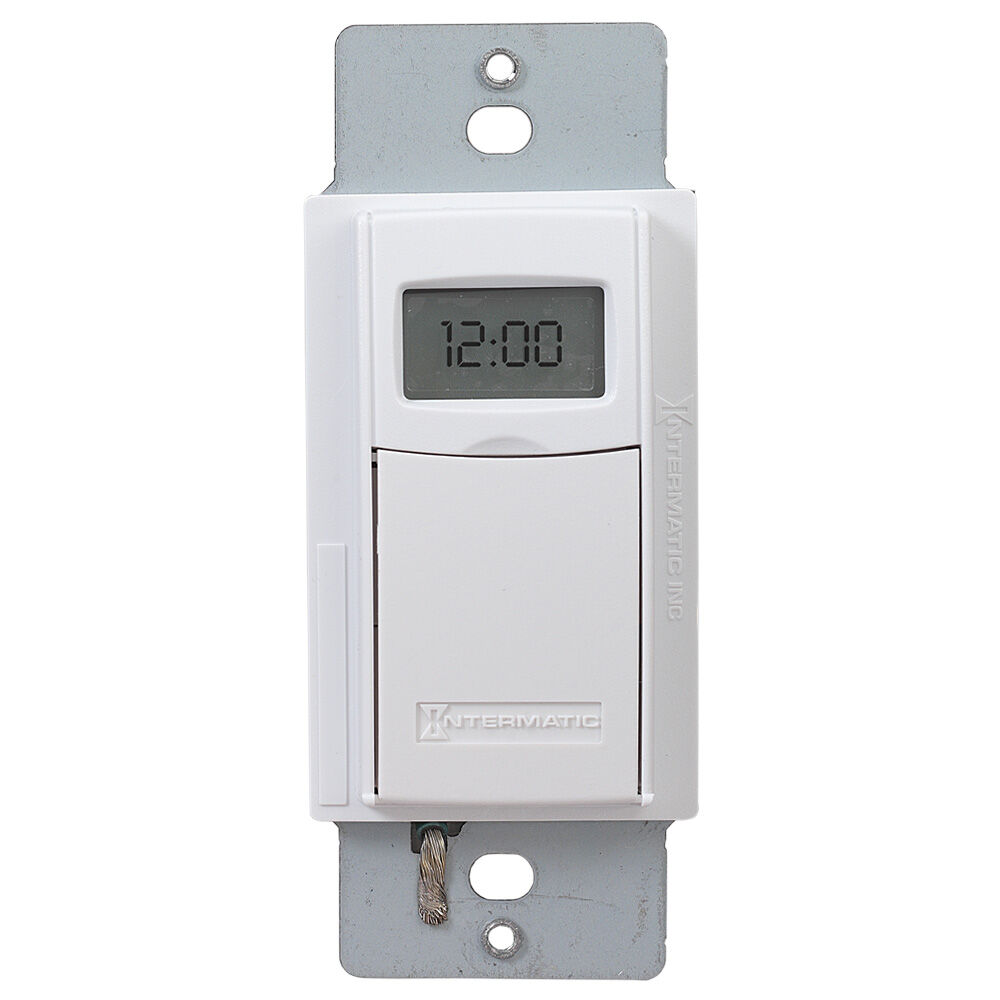

3-Way Electronic Countdown Timer, Programmable, 120-277V, SPST, White Finish by Intermatic

$98.02

Offering a programmable countdown time between one second and 24 hours, this versatile timer can handle any application, regardless of load type. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

  • Programmable countdown time interval from one second to 24 hours
  • Settings stored in non-volatile memory
  • Optional audible and/or visual warning of impending load switch OFF
  • Lockable settings help avoid unintended changes
  • Single-pole or 3-way switch-compatible installation
  • Incandescent/fluorescent/CFL/LED compatible
  • Isolated switch allows the timer to be used with any load type including AC and DC loads
  • Replaceable CR2 lithium battery provides up to three years of operation
  • No neutral wire connection enables easy retrofitting and quicker installation
  • 24-hour programming allows for continuous operation

Brand :
Intermatic
Model Number :
EI400WC
Type :
Timers
Technology :
Electronic
Dimming Type :
Not Applicable
Input Voltage :
120-277V
Finish :
White
Mounting :
In Wall
Environment :
Indoor
Load Total (Watts) :
1800W
Ratings :
UL Listed
Safety Certification :
CSA, Green Energy
Dimensions (L x W x H) :
1.19" x 1.75" x 4.12"
Weight :
0.40
