Home Constant Current 30W 700mA EUM-030S105DT Programmable Constant Current Driver by Inventronics
Specification Sheet

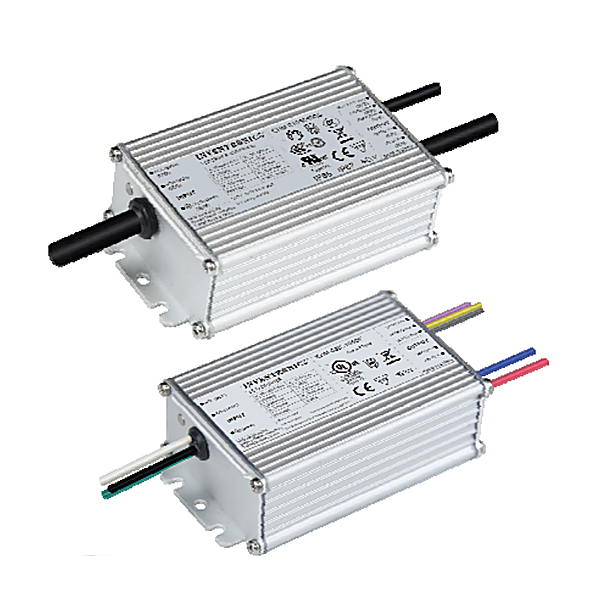

30W 700mA EUM-030S105DT Programmable Constant Current Driver by Inventronics

$33.09

The EUM-030SxxxDx series is a 30W, constant-current, programmable and IP66/IP67 rated LED driver that operates from 90-305Vac input with excellent power factor. It is created for many lighting applications including low bay, tunnel and street, etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.


Please specify the desired current output (mA) in the box below. If you do not know it, please specify the manufacturer and model number of the fixture or contact us for assistance.

SKU :
EUM-030S105DT
Brand :
Inventronics
Max Wattage :
30W
Input Voltage Range :
90-305V
Output Voltage :
17-54V
Current Range :
550-1050mA
Default Current :
700mA
Dimmable :
0-10V
Dimming Range :
10-100%
Dimensions (L x W x H) :
3.74" x 2.52" x 1.44"
