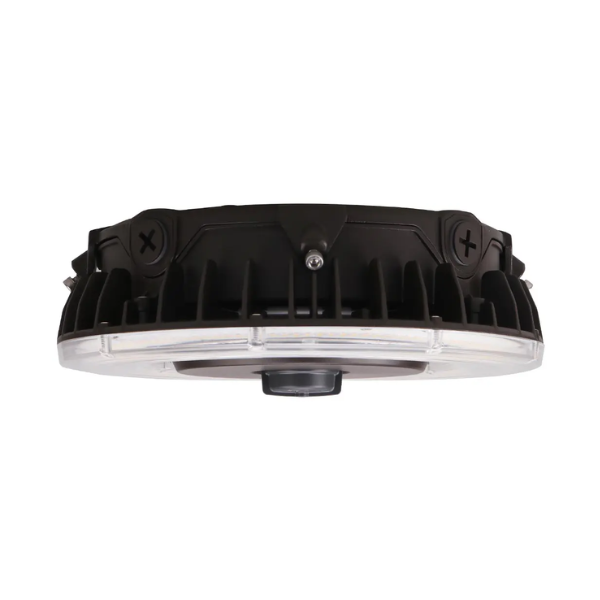

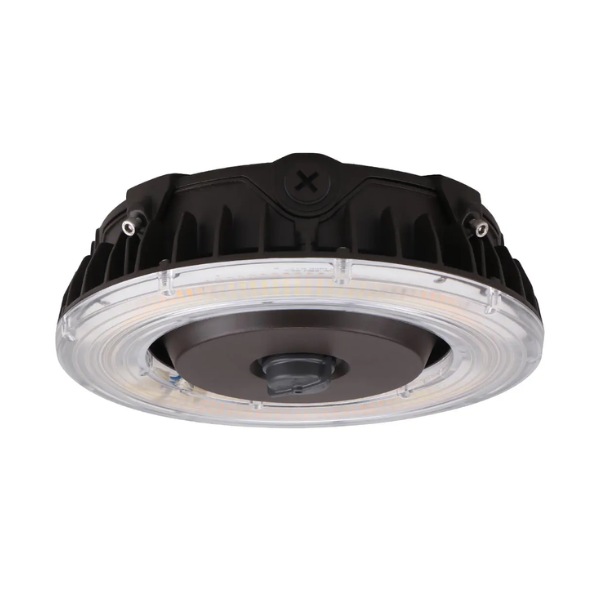

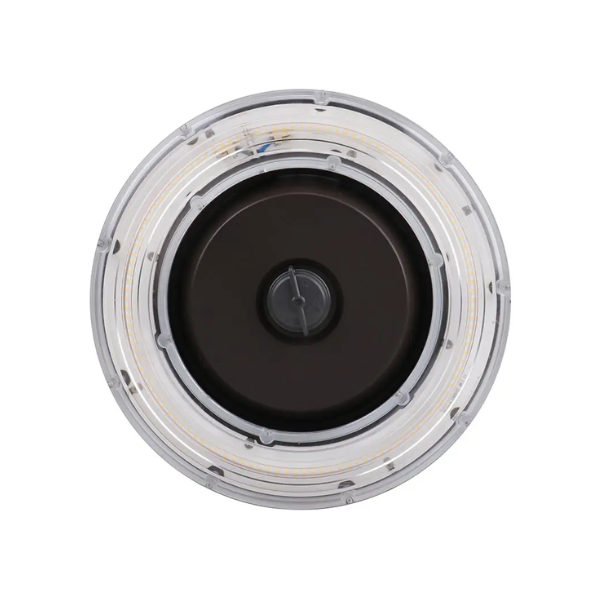

Home Canopy & Parking Garage 35/45/55W Ace LED Garage 1, 30/40/50K, EZ Connect, 120-277V, Bronze Finish by LinmoreLED

Specification Sheet
Installation Instructions

35/45/55W Ace LED Garage 1, 30/40/50K, EZ Connect, 120-277V, Bronze Finish by LinmoreLED

$129.80

The new Ace LED Garage (AG1) is a cost-effective solution to maximize energy savings in all parking garage and low bay applications. Made to last, its rugged aluminum die-cast construction ensures great heat dissipation and structural rigidity. Its ring-shaped lens provides a wide light distribution and some uplight for improved visual comfort.

Its EZ-Connect™ receptacle provides the option to add motion sensors, photocells and UltraLink Bluetooth controls to the fixture any time after installation with a Twist and Lock System.

  • 3000/4000/5000K CCT & 35/45/55W Wattage Selectable
  • 4,921 - 8,284 Lumens
  • Up to 153 LPW
  • Up to 50°C (122°F) Ambient
  • Die-Cast Aluminum Housing and Heatsink
  • Compact Low-Profile Design
  • Easy Open Design & Wide Beam Ring Lens
  • 120-277V Input Voltage
  • 0-10V standard. Dimming range 100% to Off.
  • 80+ standard CRI
  • Clear ribbed polycarbonate. 150° beam angle.
  • 5 Year Warranty

Brand :
LinmoreLED
Model Number :
Shape :
Round
Distribution :
Wide
Mounting :
Pendant, Surface
Lumens :
4,921-8,284 lm
Watts :
35/45/55W
Input Voltage :
120-277V
Color Temperature :
Color Selectable, 3000K, 4000K, 5000K
CRI :
80+
Dimmable :
Yes
Finish :
Bronze
Ratings :
Wet Location
Safety Certification :
UL Listed, RoHS
Dimensions (L x W x H) :
10" x 10" x 3.11"
