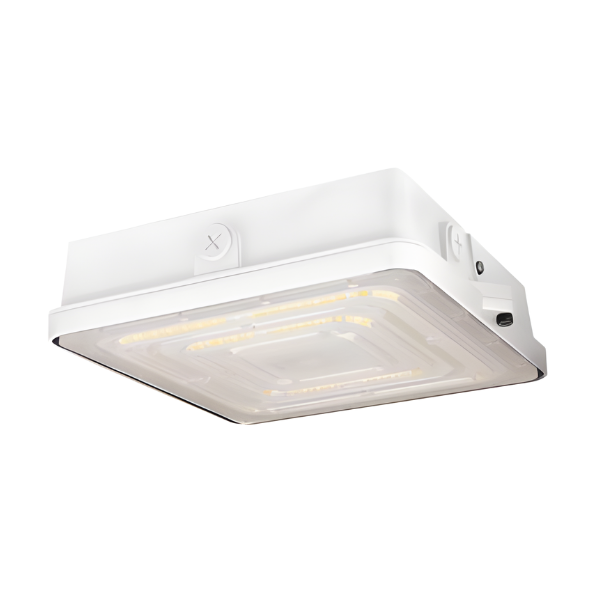

38/48/57W Enhanced Canopy/Parking Garage, 120-277V, 30/40/50K, Controls Ready, White Finish by Maxlite

$180.00

Quick to install and pay for itself, the Enhanced Canopy/Parking Garage fixture is an economical retrofit solution for 70-250W HID garage and canopy luminaires. The series comes standard with an internal c-Max control receptacle, which allows for a variety of c-Max controls to be field-installed (sold separately). The luminaire also features a single screw design that allows access to the fixture interior within seconds for quick and easy surface conduit connections or c-Max controls installation.

  • CCT selectable between 3000/4000/5000K (5K default)
  • 38/48/57W Power Output
  • 18” leads standard for easier pendant mounting
  • 120-277V Input Voltage
  • White Finish
  • Polycarbonate Lens
  • 0-10V, compatible with c-Max Controls standard
  • 100,000+ Hours Lumen Maintenance
  • Die-cast aluminum with corrosion-resistant polyester powder coat
  • 10 Year Warranty

Brand :
Maxlite
Model Number :
Shape :
Square
Distribution :
Wide
Mounting :
Pendant, Surface
Lumens :
6,960 lm
Watts :
36/48/58W
Input Voltage :
120-277V
Color Temperature :
Color Selectable, 3000K, 4000K, 5000K
CRI :
80+
Dimmable :
Yes
Finish :
White
Ratings :
Title 24, Wet Location
Safety Certification :
DLC Premium, TAA, FCC
Dimensions (L x W x H) :
11.08" x 9.84" x 2.66"
