4" DGF Series Recessed LED Floating Gimbal Downlight, 5CCT, White Finish by Nicor

$52.50

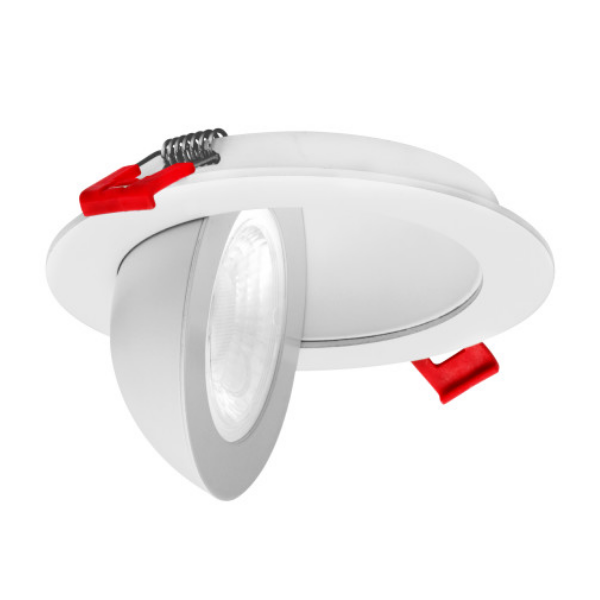

The NICOR DGF4(v3) 4-inch floating gimbal LED downlight delivers fully adjustable directional lighting with 360° rotation, a 90° tilt, and a narrow 29° beam angle. It features 5 field-selectable color temperatures (2700K–5000K) via a junction box switch, smooth dimming, and a high 96 CRI (R9 > 70) for true color accuracy. This canless, all-in-one kit installs directly into drywall using the included template and spring-loaded tabs—no recessed housing required.

  • Includes Selectable LED downlight, plenum-rated cable, and off-board driver
  • Installs directly into the ceiling; no housing or junction box required
  • Adjustable directional lighting at 90° tilt and 360° rotation
  • Produces over 720 Lumens at 9 watts (65W Equivalent)
  • Dimmable to less than 5% using standard TRIAC LED Dimmers
  • Precision optics provide smooth, uniform lighting at a narrow 29° beam angle
  • Insulation Contact rated, Damp-Location rated, Airtight, FCC compliant, and RoHS compliant
  • Lifetime rated for over 54,000 hours of use
  • Protected by NICOR's 5-Year limited warranty

Brand :
Nicor
Model Number :
DGF43120SRDWH
Style :
Adjustable (Gimbal)
Aperture Size :
4"
Shape :
Round
Lumens :
721-833 lm
Watts :
9W
Input Voltage :
120V
Color Temperature :
Selectable, 2700K, 3000K, 3500K, 4000K, 5000K
CRI :
90+
Beam Angle :
29°
Housing :
IC Rated
Dimmable :
Yes
Trim Finish :
White
Ratings :
Airtight, Damp, IC, JA8, Title 24
Safety Certification :
FCC, RoHS Compliant, UL Listed
Dimensions (L x W x H) :
4.88" x 4.88" x 1.38"
