Home High and Low Bays 4' Endeavour 2.0 Linear High Bay w/ Occupancy Sensor, 4000K, 36,000 lm, Frosted Lens by ILP

Specification Sheet
Installation Instructions
Dimensions

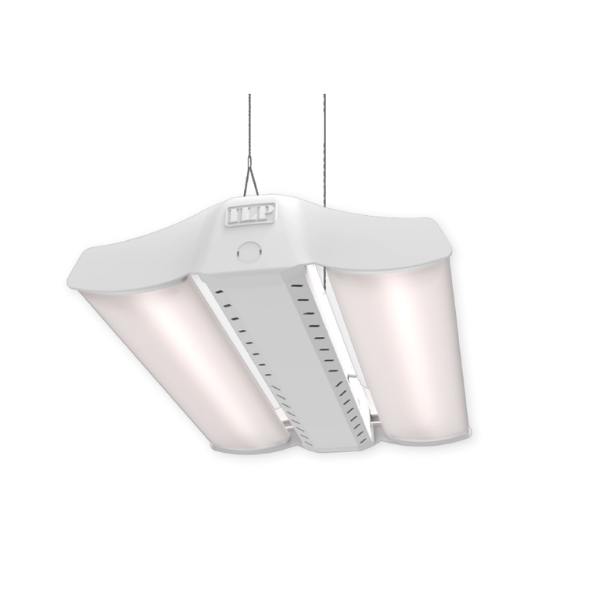

4' Endeavour 2.0 Linear High Bay w/ Occupancy Sensor, 4000K, 36,000 lm, Frosted Lens by ILP

$666.67


EDV 2.0 is the linear high bay of the future. Sturdy - but sleek, it features an aluminum body with curved end caps in white, black or custom finishes to suit even the most unique project aesthetics. It is highly selectable - with impact-resistant and IP5X-rated lens options, controls, CCT and lumen packages, and more. Its diverse mounting options allow for multitudes of design opportunities in a variety of applications with high ceilings at varied heights

  • Toolless Hinged Driver Access
  • V-Clips for dual point chain or cable hanging (standard)
  • Advanced and Basic Controls Options
  • Wide Distribution
  • ON/OFF Occupancy Sensor
  • 131°F Standard Ambient Temperature Range
  • 4000K CCT
  • Frosted Lens
  • Uplight Options to optimize full room illumination
  • 36,000 Lumens
  • >80 Color Rendering Index (CRI)
  • Calculated L70 >100,000 hrs
  • 0-10V Dimmable Driver (100%–10%)
  • ETL Listed for Damp Location
  • 5 Year Warranty

Brand :
ILP
Model Number :
EDV4-36L-U-40-FRL-FIOS
Type :
Linear
Lumens :
36,000 lm
Watts :
248W
Voltage :
120-277V
Color Temperature :
4000K
CRI :
80+
Optics :
Wide
Mounting :
Ceiling, Pendant, Suspended
Environment :
Damp Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
Damp, DLC Premium, Title 24
Safety Certification :
DLC Premium, ETL Listed
Dimensions (L x W x H) :
22.20" x 48.01" x 4"
Weight :
9.99
