Home Strips & Wraps 4' EWQ Series 32W/40W/48W LED Wrap, CCT Selectable, 120-277V, 0-10V Dimming, White Finish by Trace-Lite
Specification Sheet

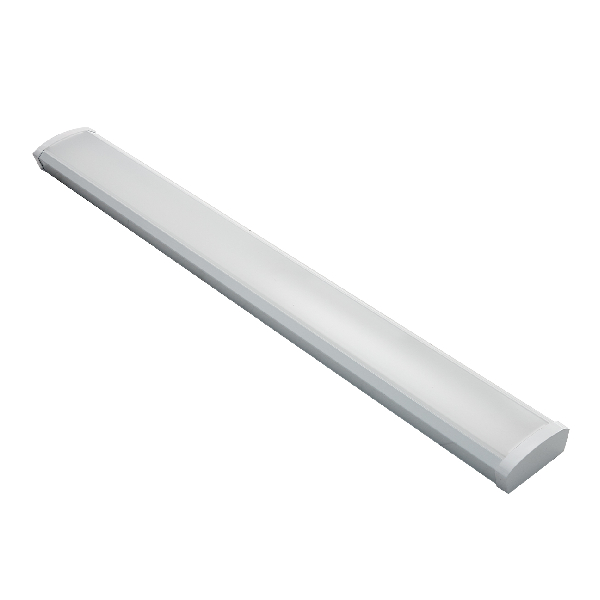

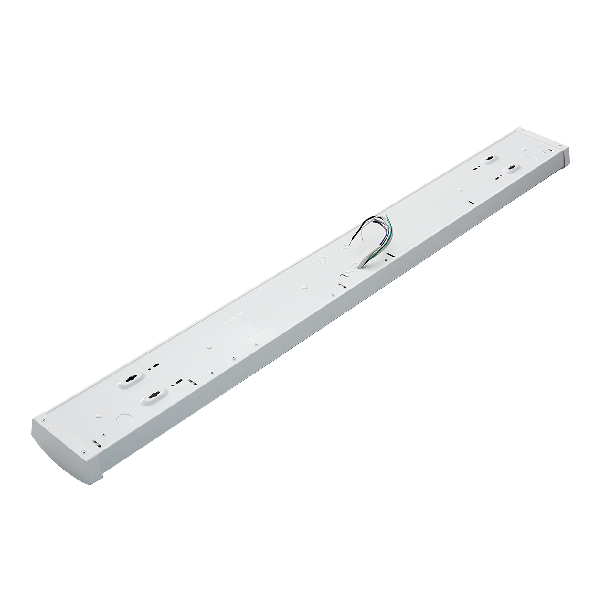

4' EWQ Series 32W/40W/48W LED Wrap, CCT Selectable, 120-277V, 0-10V Dimming, White Finish by Trace-Lite

$87.59

Trace-Lite's EWQ series is a cost effective 4’ long LED wrap luminaire that is a perfect replacement for fluorescent wraps. The unit provides flexibility while minimizing inventory by simply adjusting both CCT and wattage, from 32W to 48W offering between 3,872 and 5,616 lumens. Designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, making it the perfect choice for both new construction and retrofits. The EWQ series provides up to 123 lumens per watt, long-life, uniform illumination and standard 0-10VDC dimming capability.



Brand :
Trace-Lite
Model Number :
EWQ-4-CP
Lumens :
3,872 - 5,616 lm
Watts :
Selectable 32W/40W/48W
Voltage :
120-277V
Color Temperature :
Selectable, 3500K, 4000K, 5000K
CRI :
80+
Distribution :
Not Available
Optics :
Polycarbonate Lens
Dimming Type :
0-10V
Mounting :
Ceiling, Wall
Ratings :
Damp, DLC Standard
Safety Certification :
UL Listed
Dimensions (L x W x H) : :
47.6" x 5.3" x 2.1"
Weight :
3.7
