Home Tape 4-Meter 40W Adapter White Tuning OnCloud LED Tape Kit by Liteline
Specification Sheet
OnCloud Tape Instructions
Tape Brochure
Dimensions

4-Meter 40W Adapter White Tuning OnCloud LED Tape Kit by Liteline

From : $260.30

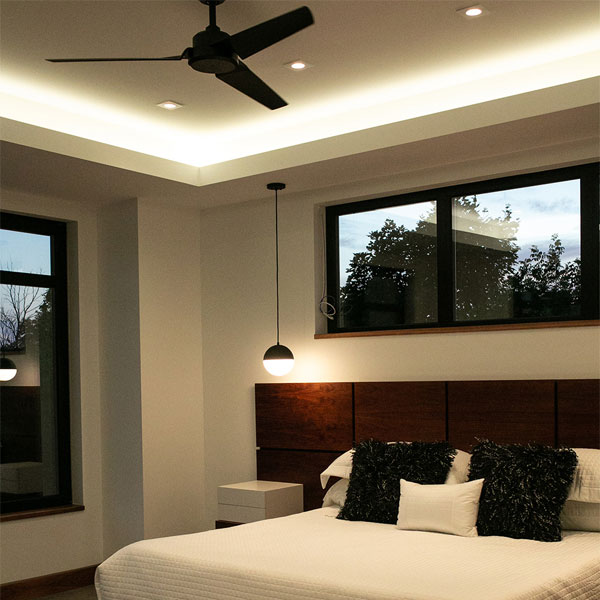

The Tunable White Tape Kit includes Tape at selected length, LED driver, OnCloud adapter, low-voltage powerfeed, and extrusion (optional). This LED tape provides ample illumination for residential, retail and commercial accent lighting. Suitable for dry and damp locations.

  • Lighting Performance - Available in 825 lumens per meter, this high density tunable white LED tape maintains uniform intensity and provides full range of 2200 K to 6500 K whites through the dedicated tunable white channels producing up to 825 lumens per meter at 3500 K.
  • Color Temperature - Tunable White (2200 K - 6500 K), with 90+ CRI.
  • Lumen Maintenance - LEDs reduce ongoing maintenance, has a rated life of over 50,000 hours.
  • Power Consumption - Operates as a constant voltage load at 24VDC, and consumes 10 Watts per meter.
  • Dimming - The LED tape is Wifi dimmable when used with our OnCloud Adapter / High Power OnCloud Adapter (sold separately) Note: Not compatible with standard dimmers.
  • Beam Spread - This LED tape features a 120° linear beam spread to provide eve light distribution.
  • Mounting - This flexible LED tape is provided with a 3M® high bond adhesive backing that provides secure mounting to smooth surfaces.
  • Environment - Suitable for dry and damp locations; IP54 rated.
  • LED Driver - 24V DC driver available as plug-in or hardwire, with a DC 2.1 connector. Drivers feature open and short circuit protection, and over voltage protection.
  • OnCloud Adapter / High Power OnCloud Adapter - An integrated constant voltage LED driver and a Wi-Fi + Bluetooth controller module. Available in 40W and 96W.
  • Kit Includes - • Tape at selected length with powerfeed • LED driver • 24V 2-channel OnCloud adapter • DC 2.1 jack low-voltage powerfeed • Extrusion with lens and end caps (optional)




Driver :
Lens + Channel :
Brand :
Liteline
Model Number :
TP-0440-TW10-OCKITxx
Type :
Flexible LED Sheet
Mounting :
Self-Adhesive Tape
Input Voltage :
24V
Environment :
Interior
CRI :
90+
Color Temperature :
Tunable White
Lumens per Foot :
Up to 251 lm
Dimmable :
Other
Watts per Foot :
3W
Beam Angle :
120°
Maximum Distance :
13 ft.
Ratings :
Dry
