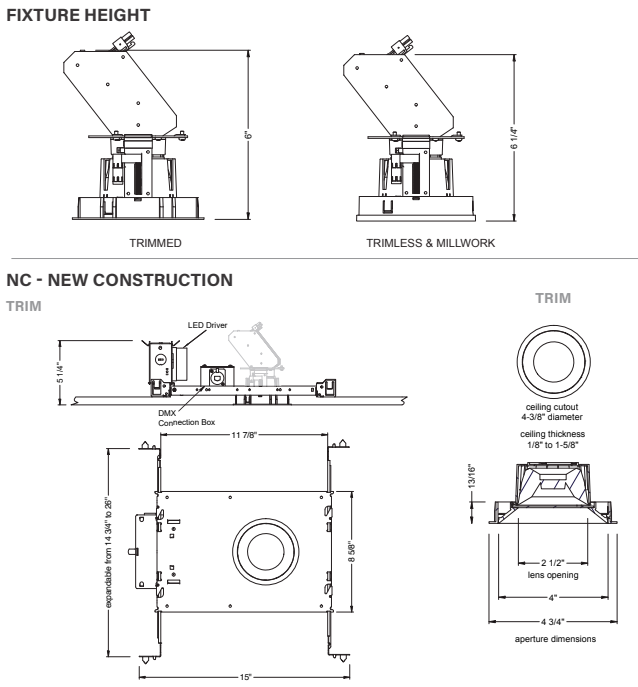

Dimensions
Warranty Information

4" NU4 Series Round Downlight RGBW by Alphabet Lighting

From : $883.33


  • RGB (W) five white CCT options available.
  • On-board, closed-loop optical feedback measures the lumen depreciation of each channel and re-balances the color model to ensure color consistency over the life of LED array.
  • 20° - 50° optical beam control
  • UGR < 5
  • Multiple mounting, trims and finishes available
  • 120-277VAC 50/60Hz input
  • Power factor > 0.9
  • Max ambient temperature 50C
  • Battery Backup not offered. Emergency Generator/Inverter/
  • Controls-Override Device supplied by others

Type :
Color Temperature :
Optics :
Bezel Lens :
Trim Color :
Bezel Color :
Mounting Options :
Dimming :
Brand :
Alphabet
Model Number :
NU4-RGBW-10LM-90-UNV
Style :
Fixed Recessed
Aperture Size :
4"
Shape :
Round
Lumens :
1,017 lm
Watts :
25W
Input Voltage :
120-277V
Color Temperature :
RGBW
CRI :
90+
Beam Angle :
25°, 30°, 35°, 50°
Housing :
IC Rated, IC Box with Chicago Penum Rating
Dimmable :
Yes
Trim Finish :
White, Black
Baffle Finish :
Ratings :
Airtight, Chicago Plenum, IC, Non-IC, Wet
Safety Certification :
CSA, UL Listed
Dimensions (L x W x H) :
4.75" x 4.75" x 6"
