Home Constant Current 50W 400-1400mA THCC-1M1UNV140P-50E Programmable and Dimmable Constant Current LED Driver by Fulham
Specification Sheet

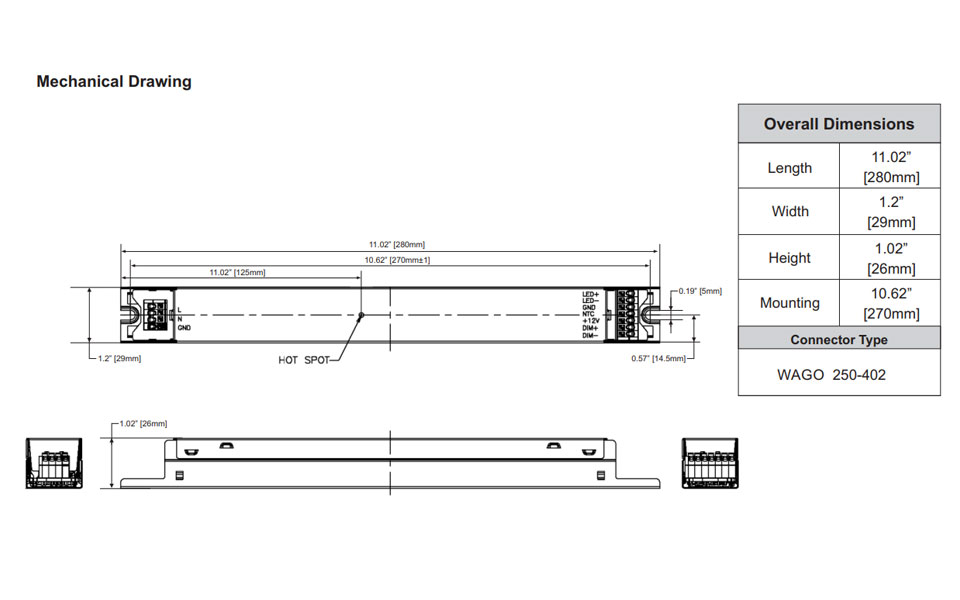

Dimensions

50W 400-1400mA THCC-1M1UNV140P-50E Programmable and Dimmable Constant Current LED Driver by Fulham

$35.22

  • 120~277VAC(NA), 220-240VAC(EU), 50/60Hz
  • cULus Listed, Class P, CE
  • Programmable: 400mA - 1400mA
  • 0-10V dimmable from 100%-1%, Dim to off (only applicable in North America)
  • 12V, 200mA AUX Output
  • Linear Form Factor with Connectors
  • Flicker Free (<4%)
  • NTC

Please specify the desired current output (mA) in the box below. If you do not know it, please specify the manufacturer and model number of the fixture or contact us for assistance.

SKU :
THCC-1M1UNV140P-50E
Brand :
Fulham
Max Wattage :
50W
Input Voltage Range :
120-277V
Output Voltage :
12-55V
Current Range :
400-1400mA
Default Current :
1400mA
Dimmable :
0-10V
Dimming Range :
1-100%
Dimensions (L x W x H) :
11.02" x 1.20" x 1.02"
