Home Wall Packs 50W/65W/80W WLZ-CP Series Zero Uplight LED Wallpack, CCT Selectable, 120-277V, 0-10V Dimming, Bronze Finish by Trace-Lite
Specification Sheet

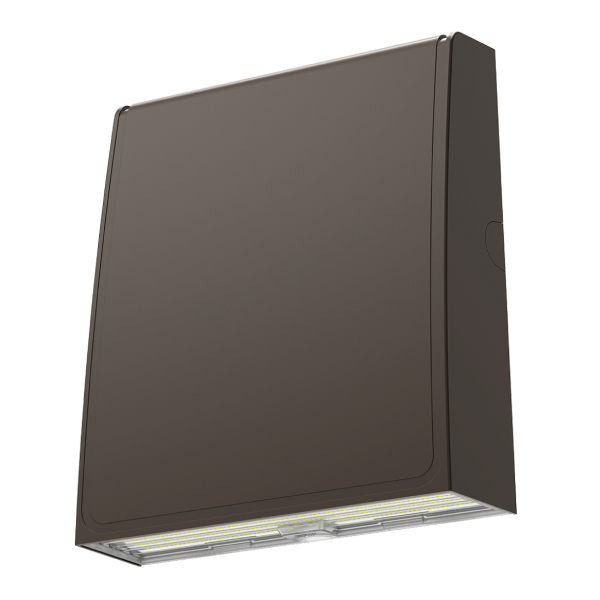

50W/65W/80W WLZ-CP Series Zero Uplight LED Wallpack, CCT Selectable, 120-277V, 0-10V Dimming, Bronze Finish by Trace-Lite

$425.00

The WLZ-CP Series elevates architectural lighting with a sleek, low-profile LED design, now offering a lumen range of 7,720 to 12,970 lumens. Engineered with a high-efficiency light engine, it delivers optimal light control and distribution with zero uplight.The WLZ-CP Series is available in multiple housing sizes to seamlessly complement any building exterior, and features field-switchable power and CCT options between 3000K, 4000K, and 5000K to provide enhanced flexibility to suit diverse lighting needs. Type II, Type III, and Type IV distribution lenses are included in the box and are easily swappable, so every project has the perfect solution. An integral emergency battery backup available in every housing size ensures reliable path-of-egress lighting with optional Cold Location operation down to -20°C.



Brand :
Trace-Lite
Model Number :
WLZ3-SD-VS-CP-BR
Style :
Low Profile
Optics :
Type II, Type III, Type IV
Mounting :
Fixed Wall Mount
Watts :
Selectable 50W/65W/80W
Lumens :
7,720 - 12,970 lm
Voltage :
120-277V
Color Temperature :
3000K, 4000K, 5000K, Selectable
CRI :
80+
Finish :
Bronze
Dimmable :
Yes
Ratings :
IP65, Wet Location
Certifications :
DLC Premium, UL Listed
Dimensions (L x W x H) :
3.9" x 9.6" x 10.8"
