Home Constant Current 55W 140-1400mA LEDrv55UNH2CHDIMAUXNFC Programmable Constant Current LED Driver by Ledvance
Specification Sheet

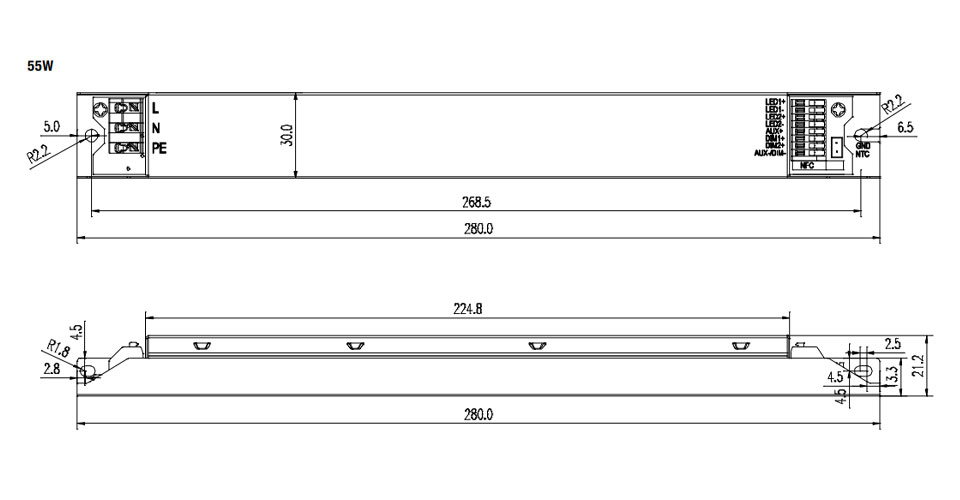

Dimensions

55W 140-1400mA LEDrv55UNH2CHDIMAUXNFC Programmable Constant Current LED Driver by Ledvance

$80.00


  • The two-channel outputs are independent of each other without interference
  • Field-programmable via free app
  • Programming does not require the driver to be powered up
  • Quick and easy output customization:
  • Current (mA) per each Independent Channel
  • Dim-to-off / Dim %
  • Constant lumen output
  • Aux Voltage
  • Soft start
  • End of life
  • Thermal protection
  • Linear models: 120-347V
  • Large programmable range from each driver, ideal when consolidating your on-hand inventory from in-house or in a service truck


Please specify the desired current output (mA) in the box below. If you do not know it, please specify the manufacturer and model number of the fixture or contact us for assistance.

SKU :
LEDrv55UNH2CHDIMAUXNFC
Brand :
Ledvance
Max Wattage :
55W
Input Voltage Range :
120-347V
Output Voltage :
8-55V
Current Range :
140-1400mA
Default Current :
140mA
Dimmable :
0-10V
Dimming Range :
1-100%
Dimensions (L x W x H) :
11.81" x 7.68" x 6.69"
