Home Downlights 5/6" IXD Series LED Downlight, 5CCT, White Finish (12-Pack) by Nicor

Specification Sheet
Installation Instructions

5/6" IXD Series LED Downlight, 5CCT, White Finish (12-Pack) by Nicor

$141.65

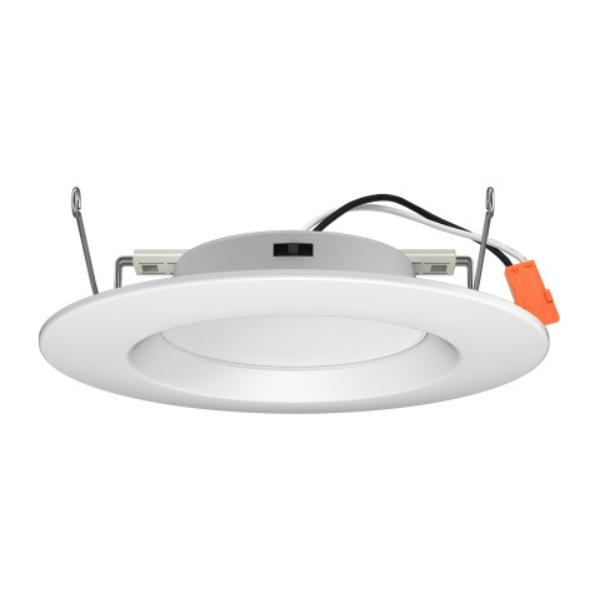

The NICOR IXD Series 5-inch/6-inch LED Downlight offers an energy-efficient retrofit solution to replace outdated recessed trims and bulbs in existing housings. Featuring a low-profile design, it mounts easily via plug-and-play installation using the included quick-connect adapter—no extra wiring or housing modifications required. With adjustable color temperature settings, smooth dimming capabilities, and vibrant color accuracy, this complete fixture is engineered for versatile performance and backed by a 5-Year Limited Warranty.

  • Available in bulk order 12-packs only
  • 5 Selectable Color Temperatures (2700K, 3000K, 3500K, 4000K, and 5000K)
  • Fits 5-inch and 6-inch recessed housings
  • Features a quick-connect port for direct installation

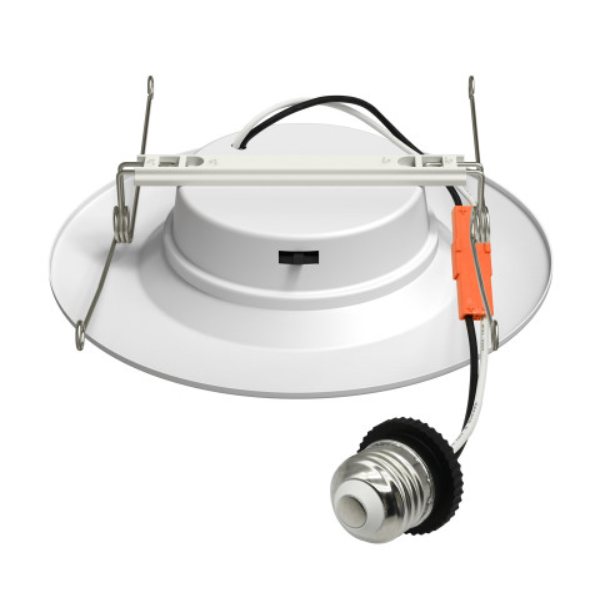

  • Includes an Edison base adapter to accommodate older housings
  • TRIAC dimmable to 10% with most major brand dimmers
  • Damp-location rated, suitable for areas with moisture and humidity
  • Meets Title 24 and JA8 compliance
  • Protected by NICOR's 5-year limited warranty

Brand :
Nicor
Model Number :
IXD561120S9WH-12PK
Style :
Fixed Recessed
Aperture Size :
5-6"
Shape :
Round
Lumens :
869-1,024 lm
Watts :
11.58-11.97W
Input Voltage :
120V
Color Temperature :
Selectable, 2700K, 3000K, 3500K, 4000K, 5000K
CRI :
90+
Beam Angle :
112°
Housing :
New Construction, Shallow - Low Profile
Dimmable :
Yes
Trim Finish :
White
Ratings :
Damp, Energy Star, JA8, Title 24
Safety Certification :
ETL Listed
Dimensions (L x W x H) :
7.16" x 7.16" x 1.63"
