Home Cylinders 6" CACM Module, 30/35/40W ARCY-Line Cylinder, CCT Selectable, Black Finish by EnvisionLED

Specification Sheet
Installation Instructions

6" CACM Module, 30/35/40W ARCY-Line Cylinder, CCT Selectable, Black Finish by EnvisionLED

$157.50

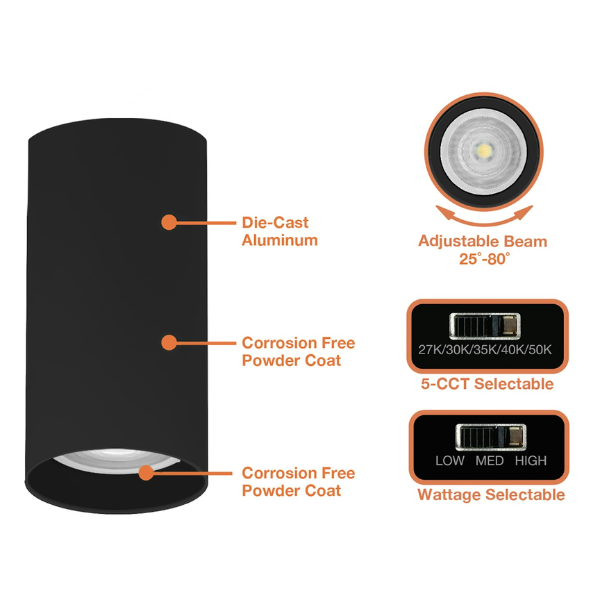

  • Deep reflector lens reduces glare and optimizes even beam distribution
  • Push-in/pull-out reflector: reflector insert and colors can be swapped
  • Adjust the beam angle in the field by hand
  • Select-n-Switch Technology: 5-CCT + 3-Power Selectable
    - Fixtures are preset to 5000k & max wattage
  • Tri-Mode Dimming: 0-10V, ELV, Triac
  • Class II isolated, Flicker Free
  • 5-CCT: 27/30/35/40/50k
  • 3-Step MacAdam Ellipses
  • Operating Temperature: -40° - 114° F
  • Lens: Clear PC, non-yellowing
  • Average life (L70) of 70,000 hours
  • 5-Year Limited Warranty

Brand :
EnvisionLED
Model Number :
LED-CACM-6-3P40-5CCT-BL-UNV
Mounting :
Surface, Suspended
Type :
Adjustable
Aperture :
6"
Shape :
Round
Lumens :
3,000/3,500/4,000 lm
Watts :
30/35/40W
Input Voltage :
120-277V
Color Temperature :
2700K, 3000K, 3500K, 4000K, 5000K, Color Selectable
CRI :
90+
Beam Angle :
35-60°
Dimmable :
0-10V, ELV, Triac
Dimensions (L x W x H) :
6" x 4.5" x 10"
