Home Downlights 6" REL Series Round LED Wafer Downlight, 5CCT, Black Finish by Nicor

Specification Sheet
Installation Instructions

6" REL Series Round LED Wafer Downlight, 5CCT, Black Finish by Nicor

$31.64

The NICOR REL Series 6-inch Round Canless LED Downlight features a sleek, low-profile profile designed to fit tight ceiling spaces. It installs directly into drywall using spring-loaded tabs and the included template, eliminating the need for a recessed housing or separate junction box. Offering adjustable color temperature settings, smooth light distribution, and vibrant color accuracy, this versatile fixture is engineered for long-lasting performance and includes a 5-Year Limited Warranty.

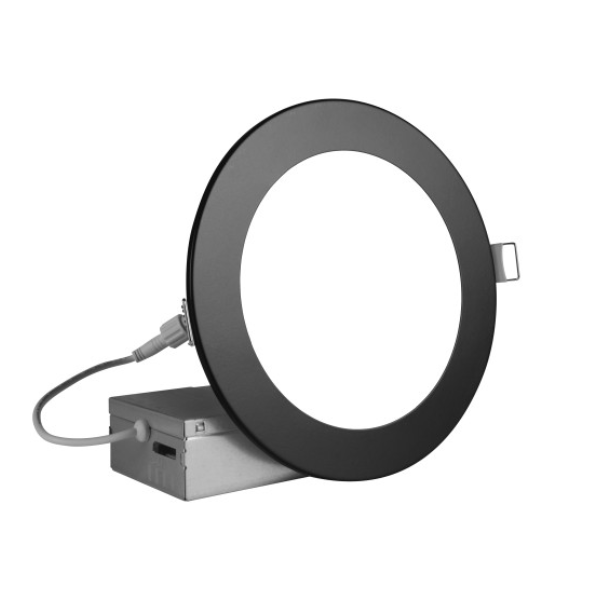

  • Includes downlight with black trim, driver/junction box, and linking cable
  • Five selectable color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K)
  • Available in four sizes: 3-inch, 4-inch, 6-inch, and 8-inch fixtures
  • Installs directly into ceiling, no housing required
  • 6.25” diameter cut-out template included
  • Dimmable to 5% using standard TRIAC or ELV dimmers
  • Airtight, Wet-Location, and Insulation Contact Rated (IC-Rated)
  • Protected by NICOR's 5-year limited warranty

Brand :
Nicor
Model Number :
REL61120SRDBK
Style :
Fixed Recessed
Aperture Size :
6"
Shape :
Round
Lumens :
1,054-1,127 lm
Watts :
13W
Input Voltage :
120V
Color Temperature :
Selectable, 2700K, 3000K, 3500K, 4000K, 5000K
CRI :
90+
Beam Angle :
113.6°
Housing :
Shallow - Low Profile
Dimmable :
Yes
Trim Finish :
Black
Ratings :
Airtight, Energy Star, IC, JA8, Title 24, Wet
Safety Certification :
ETL Listed, FCC, RoHS Compliant
Dimensions (L x W x H) :
6.7" x 6.7" x 0.83"
