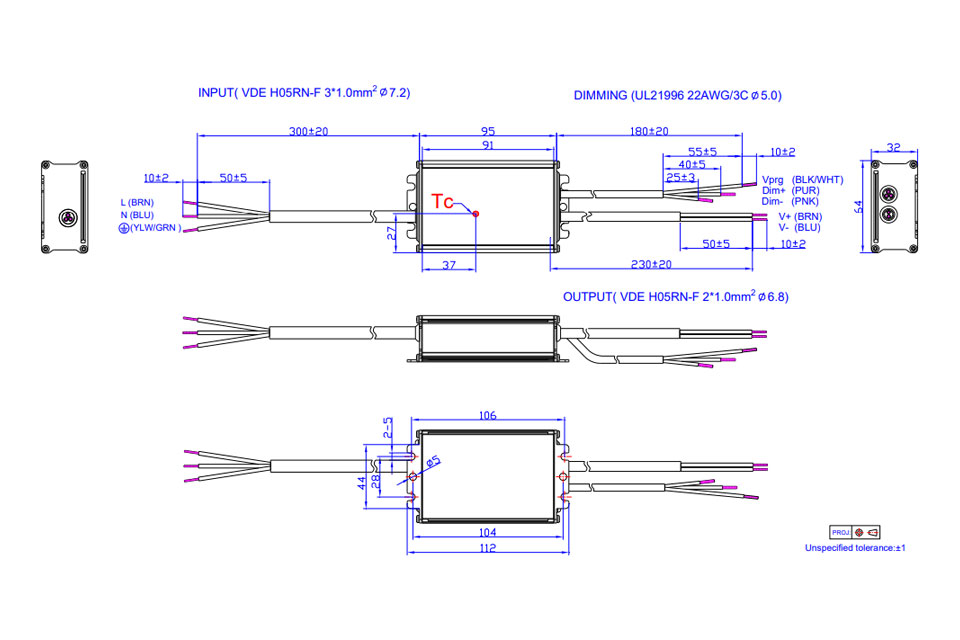

Dimensions

60W 120-1800mA EUC-060S180HV Programmable Constant Current Driver by Inventronics

$34.21

The EUC-060SxxxHx series is a 60W, constant-current IP66/IP67 LED driver that operates from 90-305Vac input with excellent power factor. It is created for many lighting applications including tunnel and street, etc. The high efficiency of these drivers and compact metal case enable them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.

Full Power at Wide Output Current Range (Constant Power)
Adjustable Output Current (AOC) with Programmability
Isolated 1(0)-5V/1(0)-10V/10V PWM/3-Timer-Modes
Adjustable Dimming Curve
High Reliability & Long Lifetime: 103,000 hrs. at 70°C Case Temperature
Dim-to-Low-Voltage(DTLV) with Standby Power ≤ 0.5W
Output Lumen Compensation
End-of-Life Indicator
Input Surge Protection: DM 4kV, CM 6kV
All-Around Protection: OVP, SCP, OTP
IP66/IP67 (HV models)
IP66 and UL Dry/Damp Location (HF models)
SELV Output
TYPE HL, for Use in a Class I, Division 2 Hazardous
(Classified) Location
Suitable for Class I Luminaires
5 Years Warranty

Programming Notes *

Please specify the desired current output (mA) in the box below. If you do not know it, please specify the manufacturer and model number of the fixture or contact us for assistance.

Add to Cart

SKU :

EUC-060S180HV

Brand :

Inventronics

Max Wattage :

60W

Input Voltage Range :

90-305V

Output Voltage :

25-50V

Current Range :
