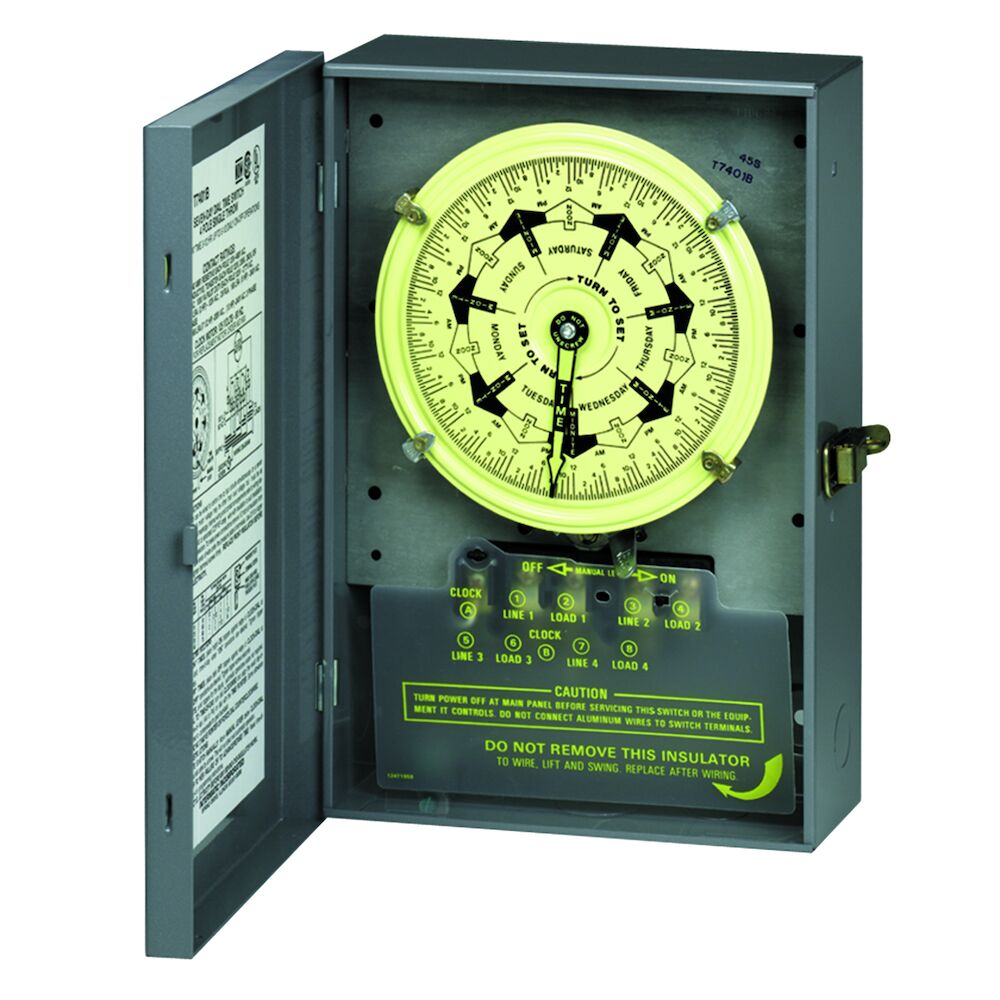

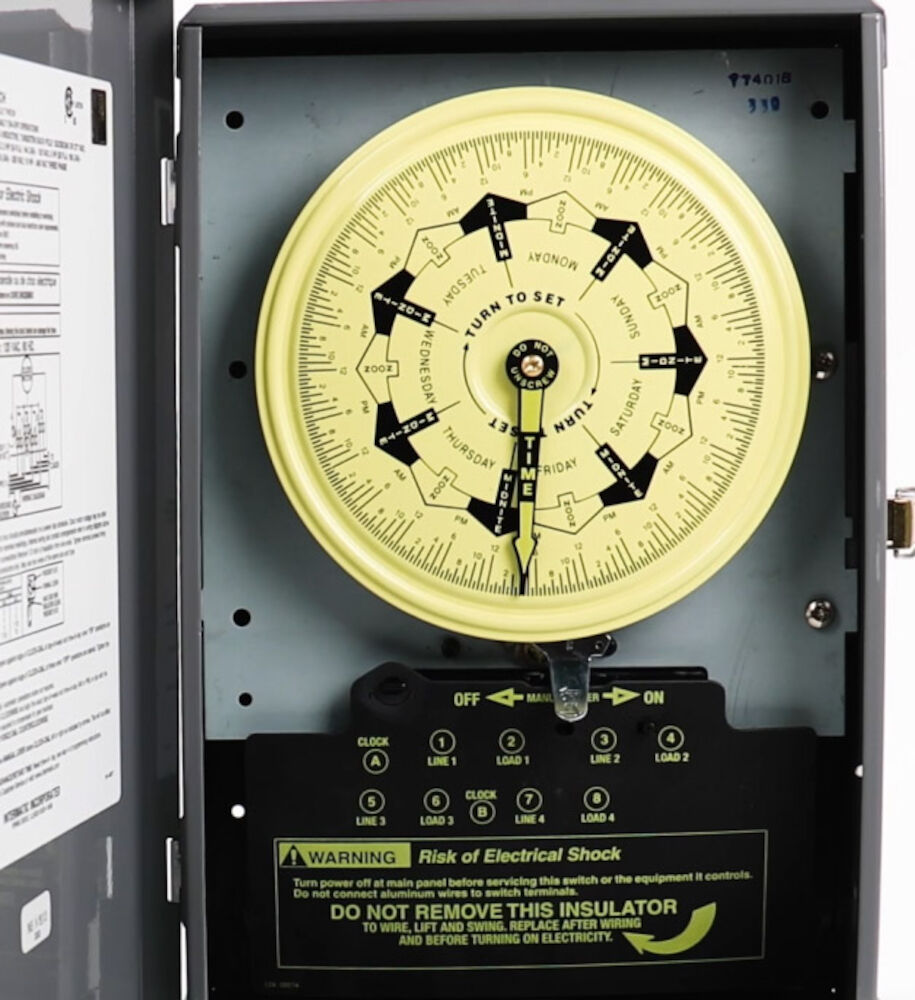

7-Day Mechanical Time Switch, 120 VAC, 60Hz, 2 NO/2 NC, Indoor Metal Enclosure, 3.5 Hour Interval by Intermatic

$299.33

These 7-Day Mechanical Time Switches offer the capability of having a different schedule for each day of the week. They can handle up to 40 A of electrical loads per circuit and have separate terminals for powering the clock motor. These time switches can handle up to four loads per clock, providing a single control for easier installation. Each time switch comes with 7 ON and 7 OFF trippers, allowing for at least one ON/OFF operation each day.

Different ON/OFF programs each day of the week
True 7-day load control with minimum ON/OFF time of 3 1⁄2 hours
Separate clock motor terminals for switching loads not on line voltage
Carry-over automatically rewinds when power resumes
Minimum of 16-hour carry-over for maintaining preset schedules during power failures
Available with Type 3R rated outdoor metal enclosure or Type 1 rated indoor metal in gray finish with separate grounding terminal
