70/80/90W Arcy-Line Square Canopy, 30/40/50K, 120-277V, Bronze Finish by EnVisionLED

$183.33

.

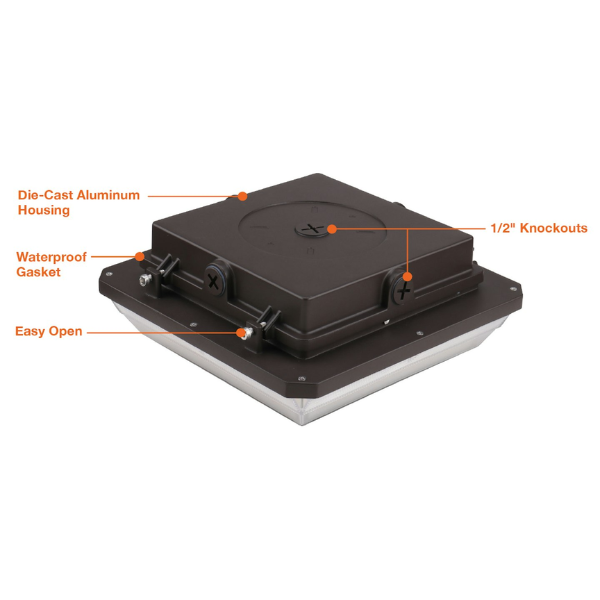

  • Sturdy die-cast aluminum housing finished with corrosion-free powder coat

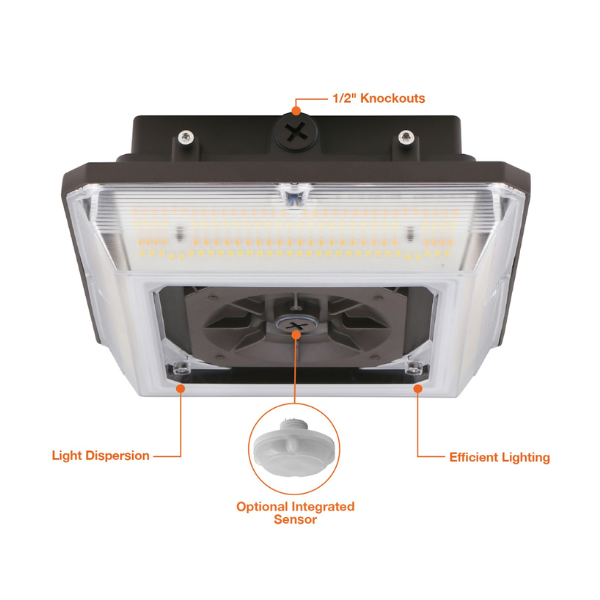

  • Four 1/2" knockouts: 1 on each side for convenient installation
  • 10% up-light standard
  • Wet Location Rated
  • 70/80/90W Power Output
  • Operating Temperature: -4° - 124° F
  • 10,150/11,600/13,050 Lumens
  • Beam Angle: 150°
  • 120-277V Input Voltage
  • 0-10V Dimmable
  • Clear Ribbed Acrylic Lens
  • Bronze Finish
  • Average life (L70) of 50,000 hours
  • 3O or 4O J-Box Surface Mount, ¾” Pendant Mount
  • 5 Year Warranty

Brand :
EnvisionLED
Model Number :
LED-SQUC-3P90-TRI-BZ
Shape :
Square
Distribution :
Wide
Mounting :
J-Box, Pendant, Surface
Lumens :
Selectable 10,150/11,600/13,050 lm
Watts :
Selectable 70/80/90W
Input Voltage :
120-277V
Color Temperature :
Color Selectable, 3000K, 4000K, 5000K
CRI :
80+
Dimmable :
Yes
Finish :
Bronze
Ratings :
Wet Location
Safety Certification :
DLC Standard, UL Listed

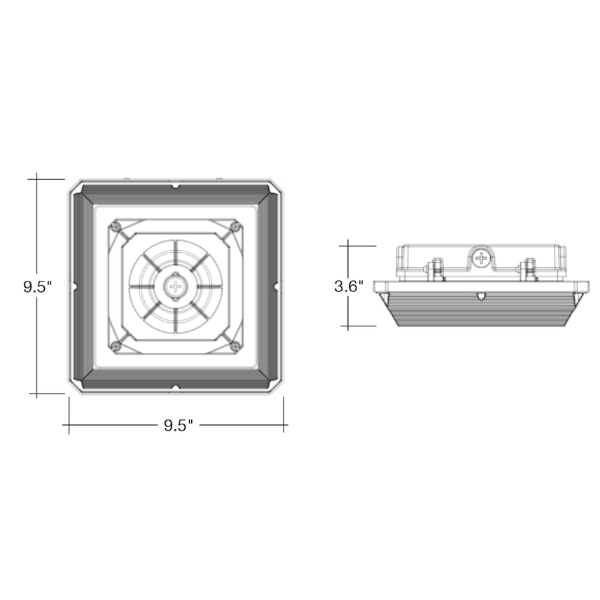

Dimensions (L x W x H) :
9.5" x 9.5" x 3.6"
