Home Downlights 8" Round JFR Series LED Fire-Rated Wafer, 20W, 120V, Triac Dimming, 5CCT Selectable, White Finish by ASD
Specification Sheet

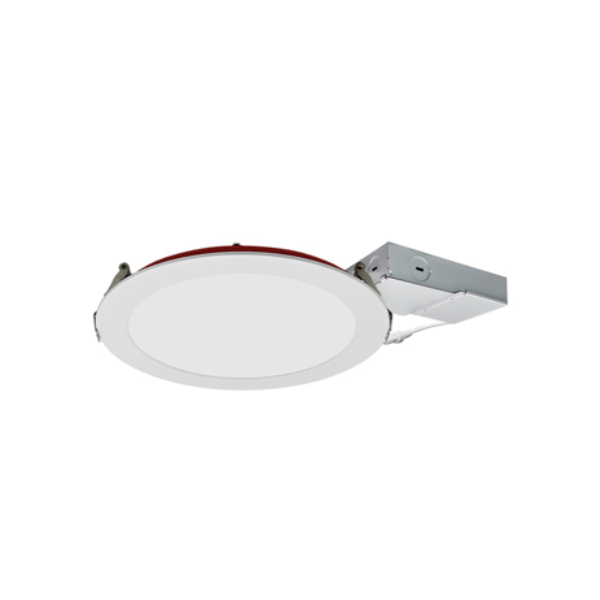

8" Round JFR Series LED Fire-Rated Wafer, 20W, 120V, Triac Dimming, 5CCT Selectable, White Finish by ASD

$25.73

The ASD-JFR-8D20AC-WH is an 8-inch round fire-rated LED wafer downlight featuring 20W output and selectable 2700K/3000K/3500K/4000K/5000K color temperatures. Operating on 120V with Triac dimming, it delivers up to 1,784 lumens with a CRI of 90+. The fixture features an aluminum housing, flat trim, IC-rated canless design, 2-hour fire resistance rating, and wet location rating, making it ideal for residential and commercial applications requiring code-compliant fire-rated recessed lighting.


Brand :
ASD
Model Number :
ASD-JFR-8D20AC-WH
Style :
Flat - Panel
Aperture Size :
8"
Shape :
Round
Lumens :
1,784 lm
Watts :
20W
Input Voltage :
120-277V
Color Temperature :
Selectable, 2700K, 3000K, 3500K, 4000K, 5000K
CRI :
90+
Beam Angle :
112°
Housing :
Canless, Fire Rated, IC Rated
Dimmable :
Yes
Trim Finish :
White
Ratings :
Airtight, Energy Star, IC, JA8, Title 24, Wet
Safety Certification :
ETL Listed
Dimensions (L x W x H) :
8.81" x 8.81" x 2.31"
