Home Hazardous Location 80W 5000K XPL1B – Proteus Hazardous Location LED Linear Emergency Luminaire by Nicor
Specification Sheet
Installation Sheet

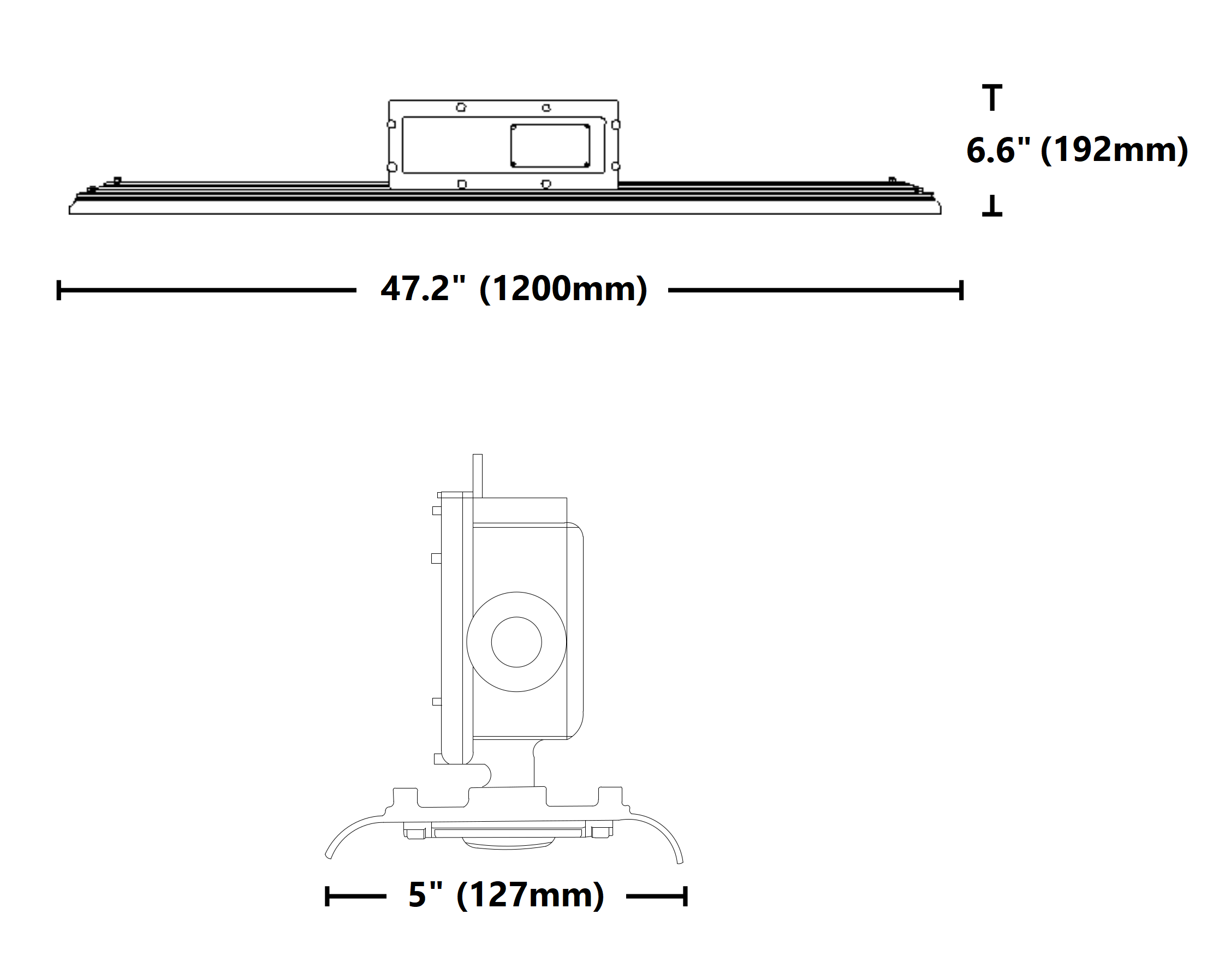

Dimensions

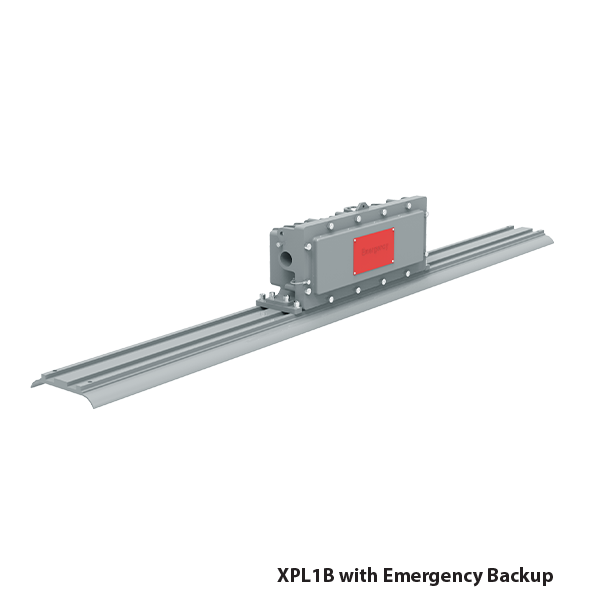

80W 5000K XPL1B – Proteus Hazardous Location LED Linear Emergency Luminaire by Nicor

$1, 406.25

The Proteus Hazardous Location LED luminaire is designed for installations where moisture, dirt, corrosion and vibration may be present. For use in locations made hazardous by the presence of flammable vapors or gases as defined by the NEC, Proteus fixtures are available in classes C1D1 and C1D2 in 40W with a 2′ length or in 80W with a 4′ length. Proteus Series is ideal for retrofit of existing HPS/MH & FL and offers higher efficacy for increased energy savings, lower maintenance costs and shorter paybacks.




Brand :
Nicor
Model Number :
209087
Lumens :
11,548 lm
Watts :
80W
Voltage :
120-277V
Color Temperature :
5000K
Dimmable :
No
Safety Certification :
Class 2 Division 1, Class 2 Division 2, CSA, cULus Listed, RoHS Compliant, UL844 Hazardous
Ratings :
DLC Standard, IP66, NEMA4X, Wet Location
Material :
Die-Cast Aluminum
Finish :
Gray
Mounting :
Ceiling, Suspended, Wall
Dimensions (L x W x H) :
47.24" x 8.10" x 5.00"
