Home Hazardous Location 80W 5000K XPQ1B – Titan Hazardous Location LED Flood/High Bay Light with Pendant Mount by Nicor
Specification Sheet
Installation Sheet

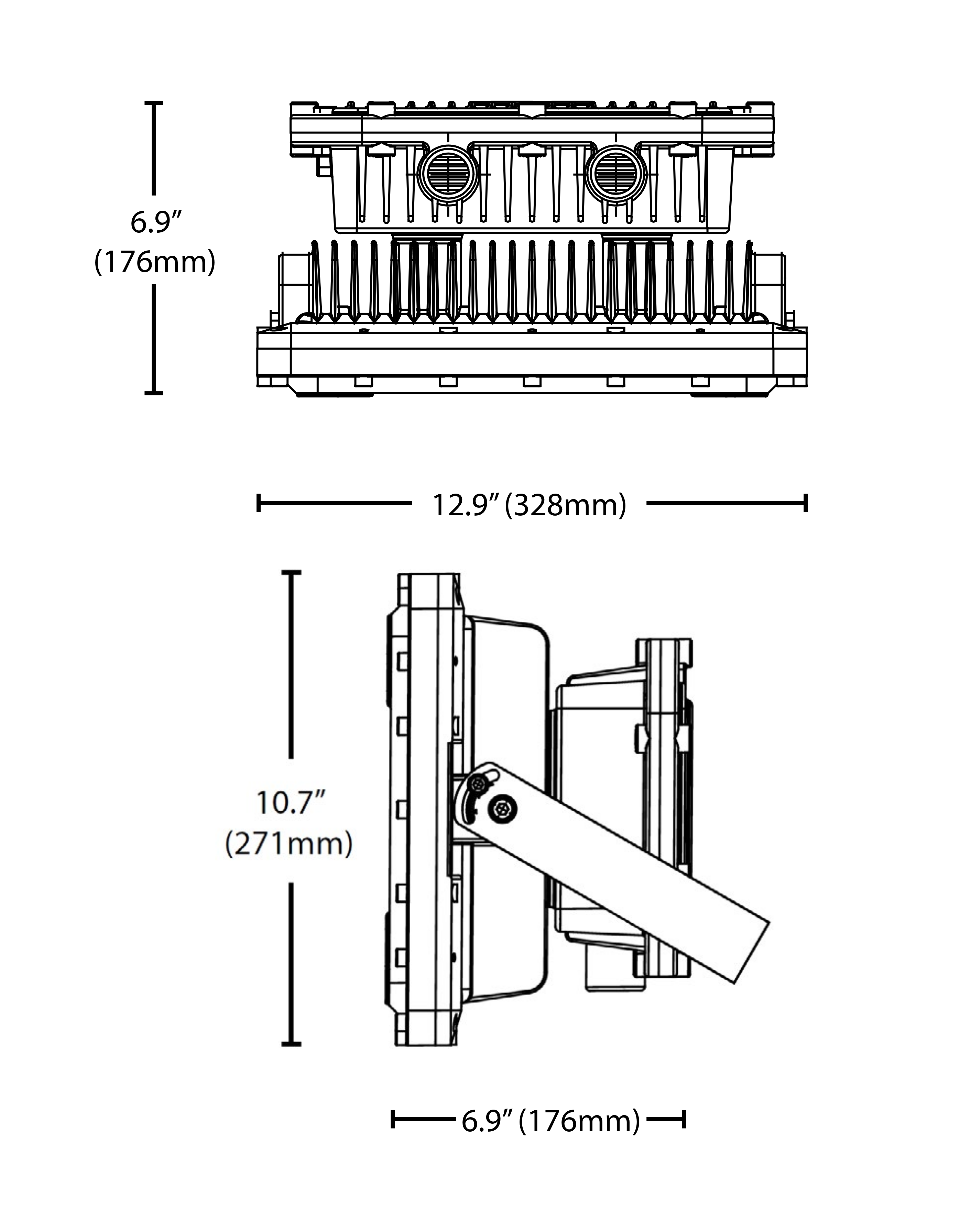

Dimensions

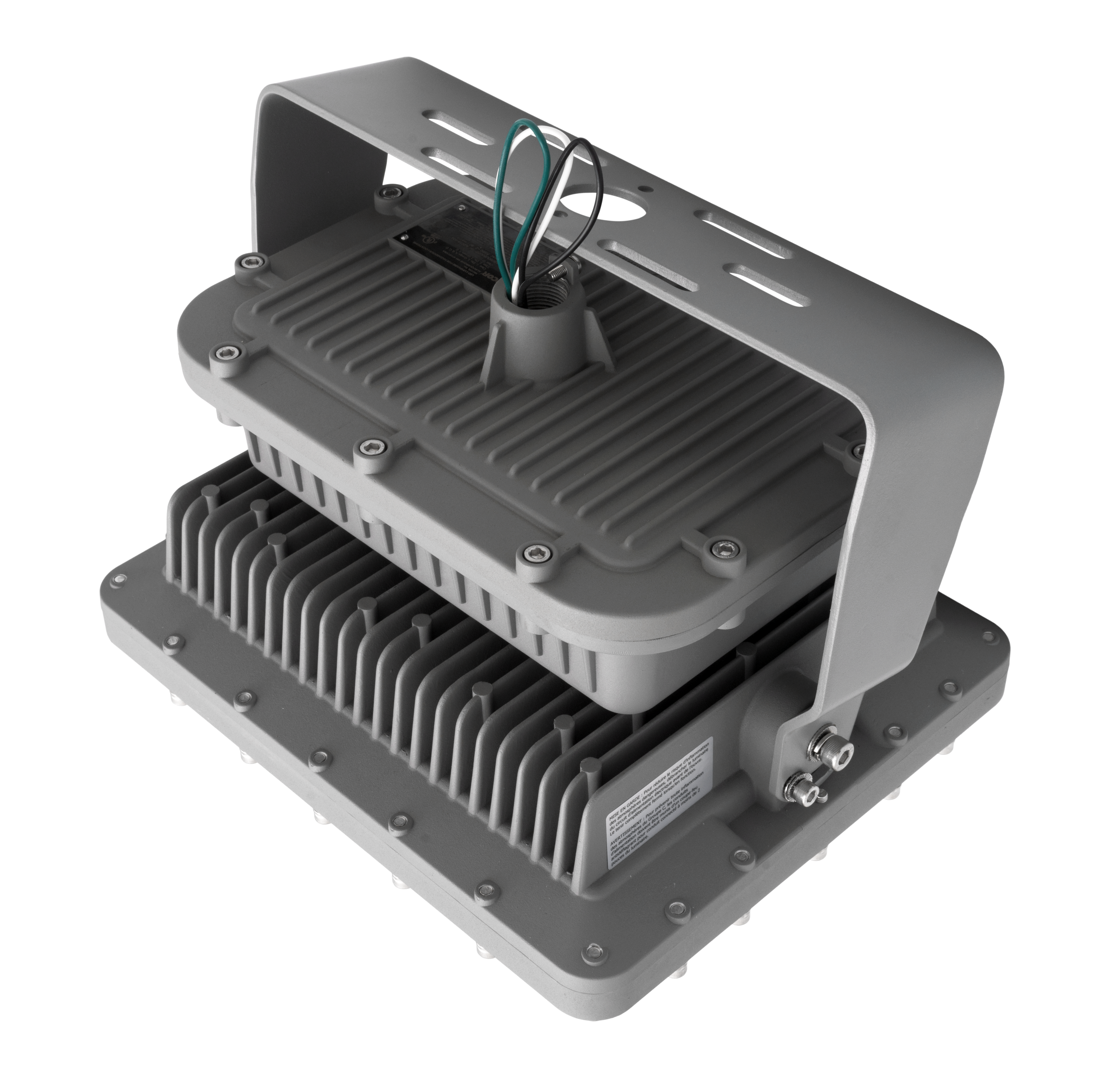

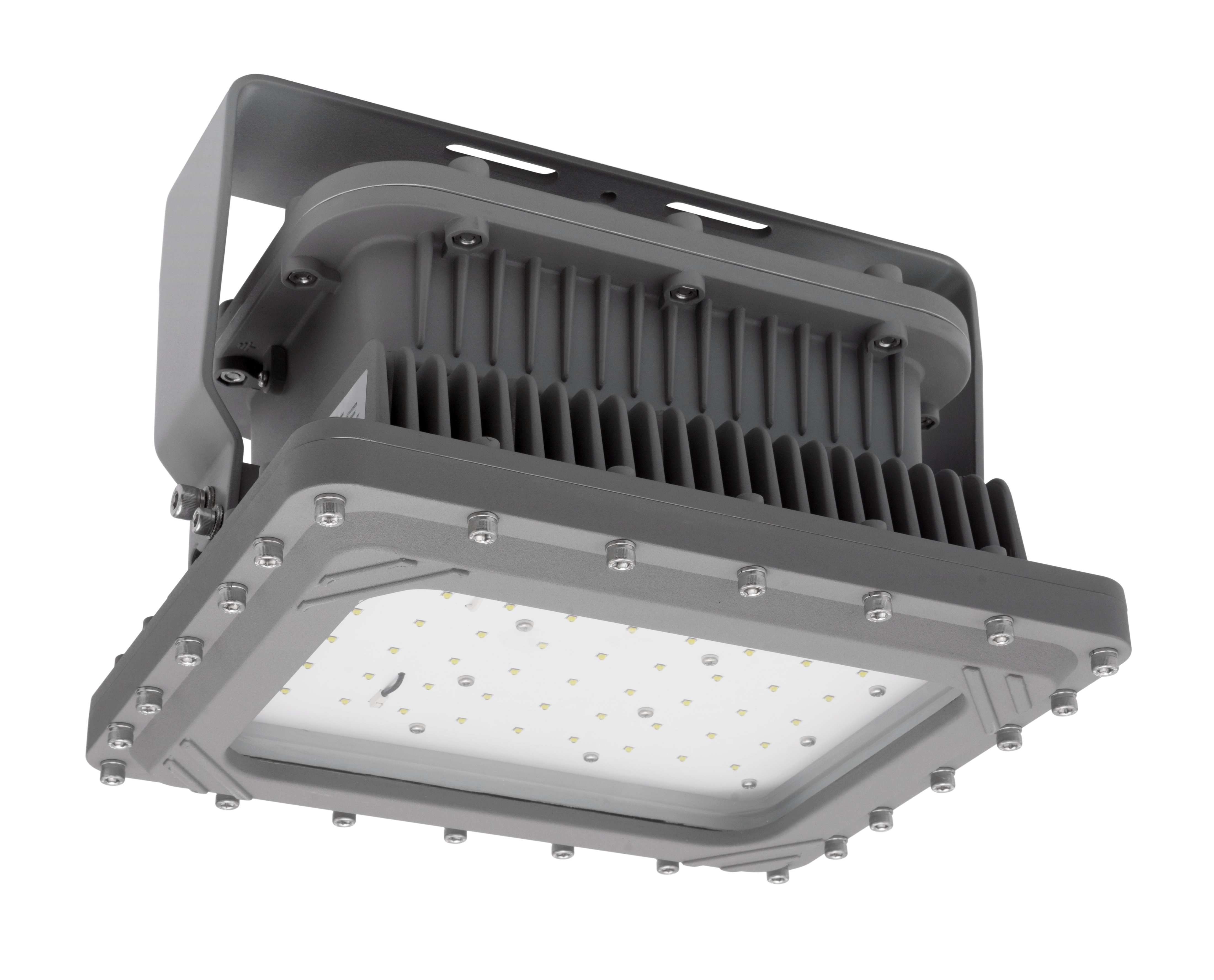

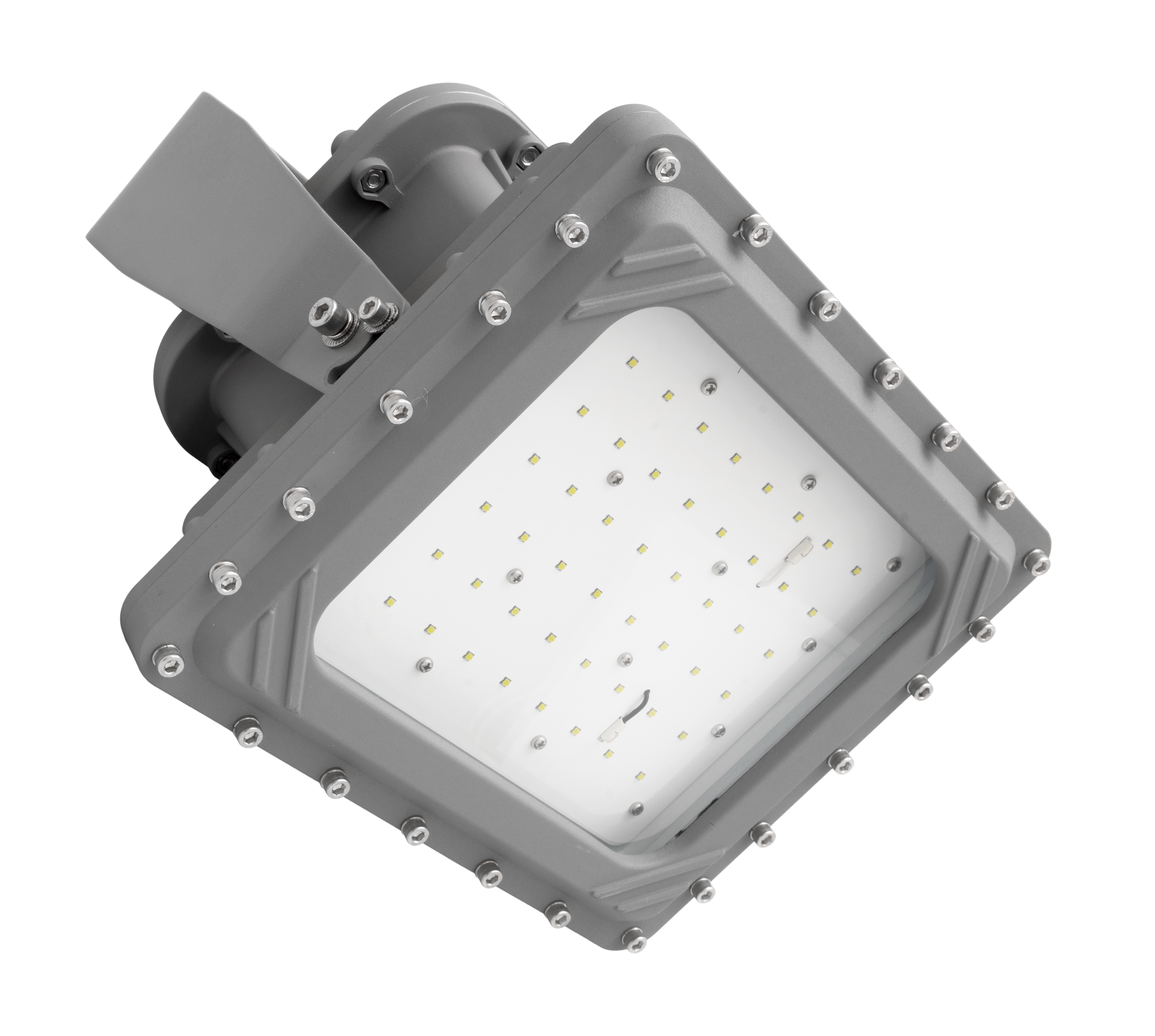

80W 5000K XPQ1B – Titan Hazardous Location LED Flood/High Bay Light with Pendant Mount by Nicor

$1, 384.68

The Titan LED Luminaire is designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4X areas where wind, water, snow or high ambient temperature can be expected. For use in locations made hazardous by the presence of flammable vapors, gases, or combustible dusts as defined by the NEC and IEC. Titan fixtures are available in 80W, 100W, and 150W packages. The Titan is ideal for retrofit of existing HPS/MH and offers higher efficacy for increased energy savings, lower maintenance costs and shorter pay backs.




Brand :
Nicor
Model Number :
XPQ1B080U50GRP
Lumens :
9,240 lm
Watts :
73.6W
Voltage :
120-277V
Color Temperature :
5000K
Dimmable :
No
Safety Certification :
Class 1 Division 1, Class 1 Division 2, CSA, cULus Listed, RoHS Compliant, UL844 Hazardous
Ratings :
IP66, NEMA4X, Wet Location
Material :
Die-Cast Aluminum
Finish :
Gray
Mounting :
Pendant
Dimensions (L x W x H) :
12.91" x 10.71" x 6.91"
