85W FHSAC1-UNV-85S Programmable Normal and Emergency LED Driver by Fulham
$126.23
- Rated Output Current: 700-2400mA
- Class 2 LED Driver
- Output Voltage Range of 10-55VDC
- Minimum Dimming Output Current 7mA
- Output Power: 85W for LED load
- Emergency Output Power: 5W-10W (Factory default 10W)
- UL 924 Self-Diagnostics
- 0-10V Dimmable: 100%-1%, 0% or Pulse DIM
- Compatible with Fulham SmartSet
SKU :
FHSAC1-UNV-85S
Brand :
Fulham
Max Wattage :
85W
Input Voltage Range :
100-277V
Output Voltage :
10-55V
Current Range :
700-2400mA
Certifications :
CEC Title 20, RoHS Compliant, UL Listed
Classification :
Class 2
CEC Compliant :
Yes
Illumination Time :
Not Available
Power Factor :
>0.90
Dimmable :
Yes
Wire Type :
Push In Terminals
Mounting Method :
Not Available

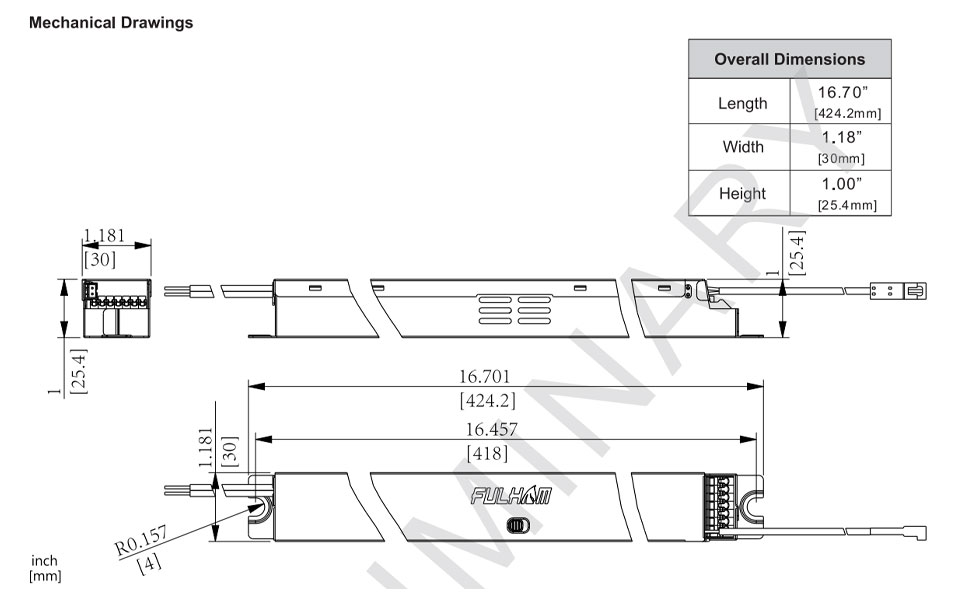

Dimensions (L x W x H) : :
16.70" x 1.18" x 1.00"
