Home Emergency 8W CoreTech Type C LED Emergency Driver by Espen
Specification Sheet

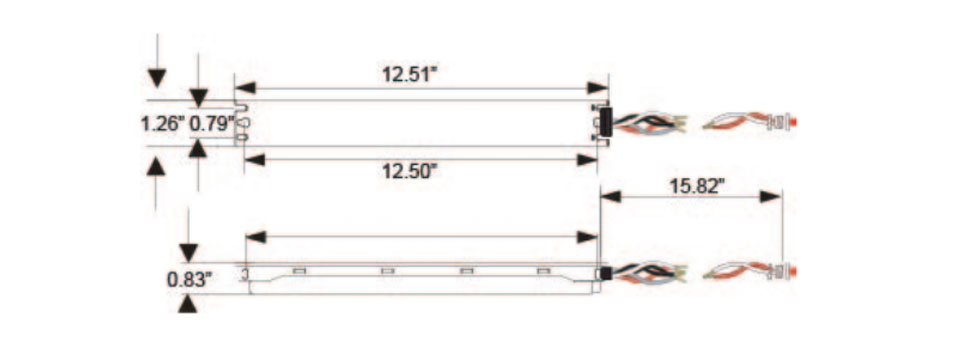

Dimensions

8W CoreTech Type C LED Emergency Driver by Espen

$133.00


The VEML8JV-1, LED emergency driver works in conjunction with the LED driver to allow the same LED fixture to be used for both normal and emergency operations. When power fails, VEML8JV-1 switches to emergency mode and keeps the luminaire illuminated at a reduced lumen output for a minimum of 90 minutes. VEML8JV-1 is suitable for use in new LED fixtures or LED retrofit applications. Includes LED charging indicator light, single-pole test switch, battery and installation hardware.

  • Multi-voltage (120-347VAC 50/60Hz)
  • Compatible with LED driver
  • Operates with Espen CoreTech type C LED lamp, VersaLinear LED module, or any other Class 2 LED lamp or module
  • Maintenance-free, long-life, high-temperature Lithium-ion battery
  • Safety extra low output voltage: 30-60 VDC
  • Ambient temperature: 0°C/30°F - 50°C/120°F
  • 5-Year Warranty

Model # VEML8JV-1


SKU :
VEML8JV-1
Brand :
Espen
Max Wattage :
8W
Input Voltage Range :
120-347V
Output Voltage :
30-60V
Current Range :
100mA
Certifications :
RoHS, UL, cUL 924
Classification :
Class 2
CEC Compliant :
No
Illumination Time :
90 min
Power Factor :
Not Available
Dimmable :
No
Wire Type :
Not Available
Mounting Method :
Ceiling Mount, Adhesive Mount
Dimensions (L x W x H) : :
12.51" x 1.26" x 0.83"
