Home High and Low Bays XFit 1.5' Linear 90W High Bay by Keystone
Specification Sheet

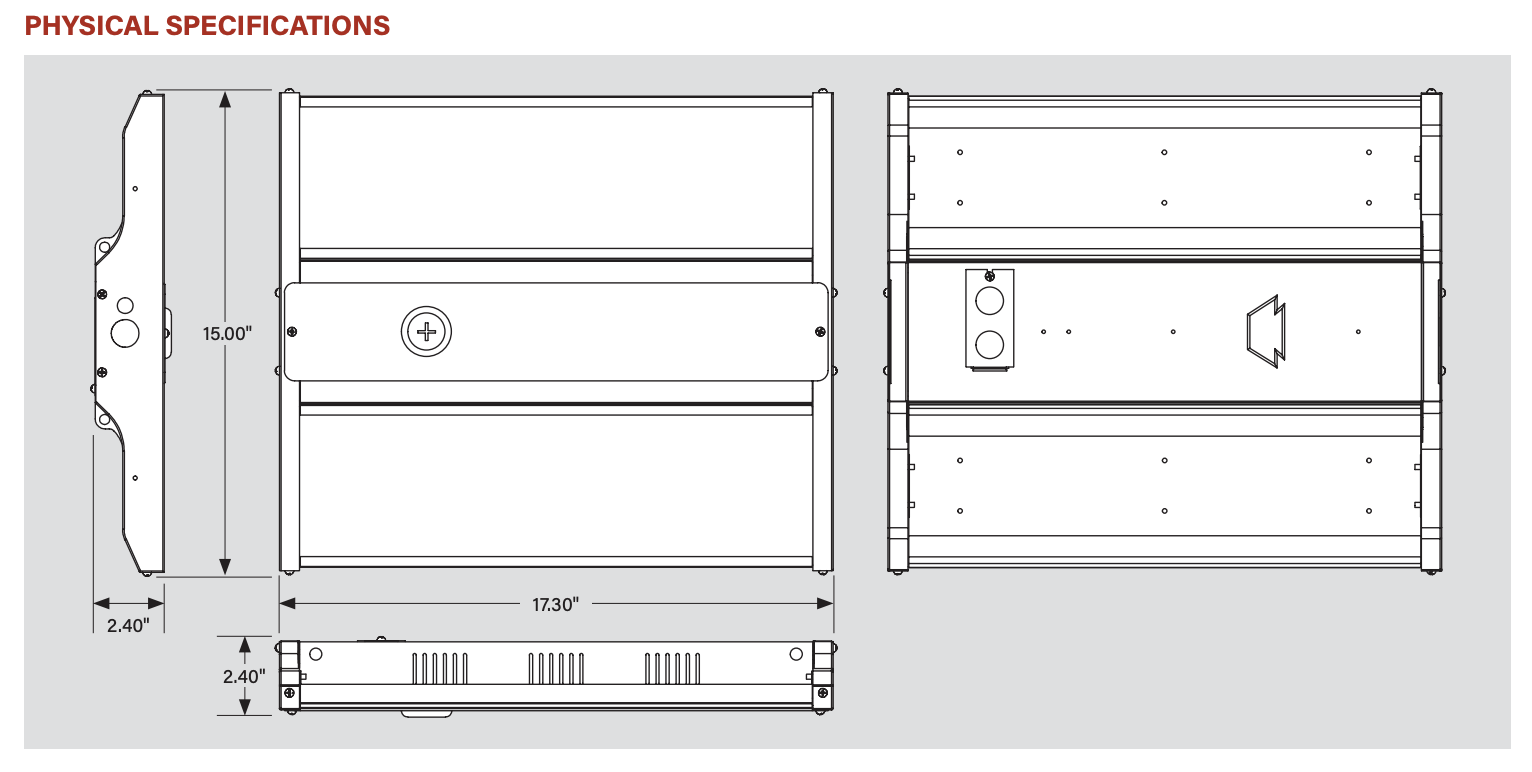

Dimensions

XFit 1.5' Linear 90W High Bay by Keystone

From : $215.50


90W Complete Compact LED High Bay Fixture

  • Architectural grade compact design
  • Designed to accept easy screw-in installation of optional sensors via 1/2" threaded receptacle in driver cover
  • Compatible with Keystone SmartSafe emergency LED drivers (see accessories section for details)
  • Powered by Keystone 0–10V dimming LED drivers with 12V Aux
  • Frosted lens eliminates glare
  • V-hook and chain mounting accessories included
  • UL Listed 1598: Suitable for dry and damp locations
  • Ambient operating temperature: −20ºC/−4ºF to 50ºC/122ºF
  • THD: < 20%
  • PF: > 0.90
  • LED chip lifetime: L70 >100,000 hrs @ 25Cº/77Fº ambient fixture temp.




Color Temperature :
Sensor :
Sensor Remote Control :
Emergency Battery Backup :
Wire Guard :
Mounting :
Stepdown Transformer :
Brand :
Keystone
Model Number :
KT-HBLED90-1.5F-840-VDIM-P /G2, KT-HBLED90-1.5F-850-VDIM-P /G2
Type :
Linear
Lumens :
13,000 lm
Watts :
90W
Voltage :
120–277V
Color Temperature :
4000K, 5000K
CRI :
80+
Optics :
Wide
Mounting :
Ceiling, Suspended
Environment :
Damp Location, Dry Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
1598, Damp Location
Safety Certification :
DLC 5.1 Premium, UL
Dimensions (L x W x H) :
17.3" x 15" x 2.4"
Weight :
9.99
