2' A-Line A-BEAM Single Circuit Track Channel, Black Finish by Liteline

A-BEAM122 is a track channel for single circuit track and ideal for install in commercial, retail, hospitality and other similar settings. A-BEAM requires fewer suspension points for cleaner ceiling space, while providing five size options, and the ability to add up-lighting, including tape lighting, for design flexibility.

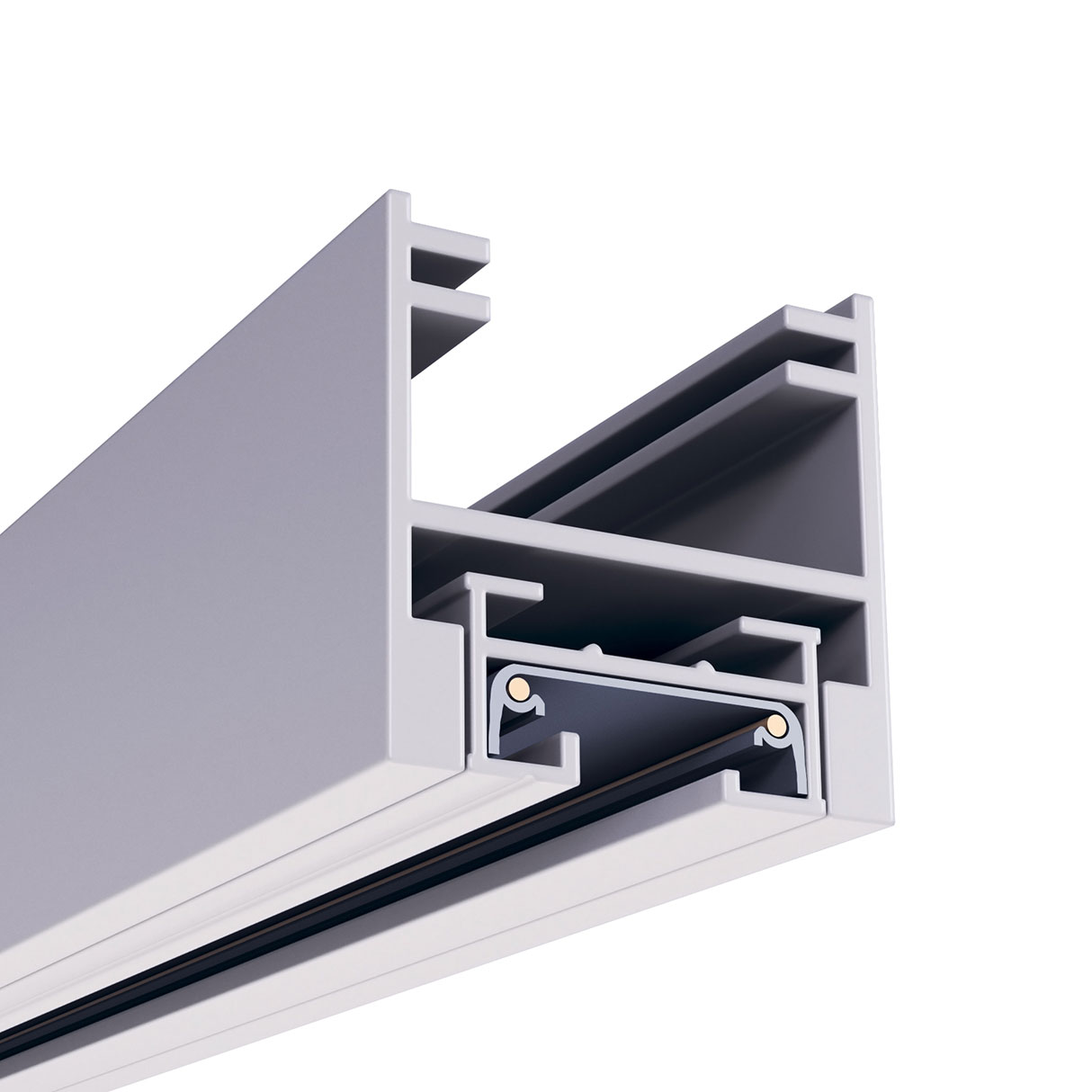

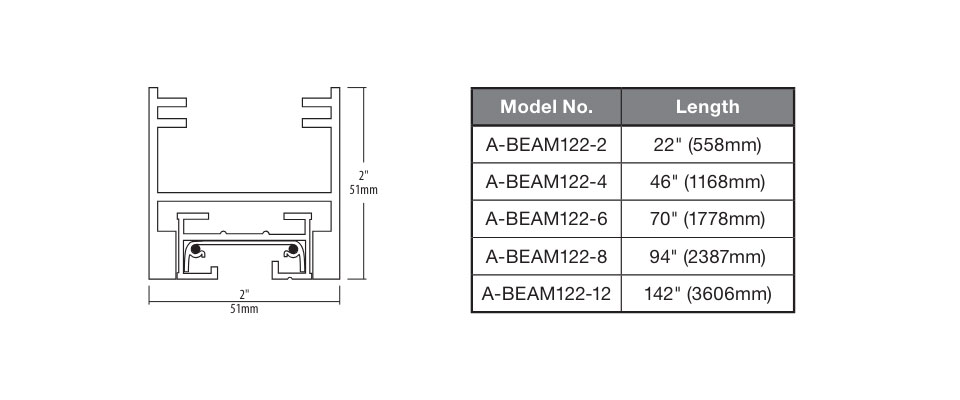

• Channel Construction - A-BEAM is a 2"×2" rigid Aluminum extrusion that allows for track section housing and provides added support for track fixtures.
• Track Extrusion - Constructed of 0.06" extruded aluminum with 0.045" PVC bus bar support holding 12 gauge round bus bars. Polarity groove is located on face of track to indicate location of grounding conductor.
• Electrical - Single circuit power distribution system designed to supply lighting unit flexibility. Single hot and neutral conductors are rated for max. 20 Amps, providing 2400W maximum power rating. Copper electrical conductors are concealed in thermo-plastic, low-profile track section. Electrical connections can be established at connectors (end connector, straight connector, L-connector, T-connector or X-connector).

• Lighting Compatibility - Track system is compatible with all A-Line style track fixtures, accessories and connectors. The A-BEAM channel can also accommodate tape lighting for an up-lighting effect.
• Mounting - A-BEAM is suspended from ceiling with available adjustable suspension kits that can be mounted onto an octagon box or support structure.
• Fixture Support - A-BEAM is rated to support 85 lbs per section supported by two (2) mounting kits.
