Home Area, Site, and Roadway AAL1 Area Light, PowerSet 100/80/60W, 4000K, Type 5 Lens, 120-277V, Dimming, Bronze by Eiko
Specification Sheet
Installation Instructions

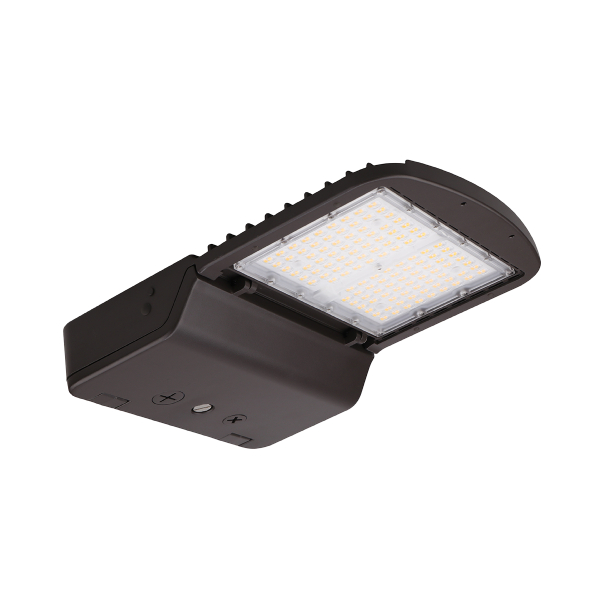

AAL1 Area Light, PowerSet 100/80/60W, 4000K, Type 5 Lens, 120-277V, Dimming, Bronze by Eiko

$91.67

The Eiko AAL1-PS100-40T5-U LED Area Light delivers selectable 100/80/60W power at 4000K color temperature with Type 5 lens and photometric shield distribution for controlled wide coverage, 120-277V universal voltage, and 0-10V dimming compatibility. It achieves 140 lm/W efficacy with 14,000/11,200/8,400 lumens output, featuring IP65 wet location rating, IK08 impact resistance, and 10kV surge protection for harsh outdoor environments. UL listed, cULus certified, and DesignLights Consortium (DLC) Premium qualified, this bronze-finished fixture offers a slim architectural profile, tool-less arm adjustment, polycarbonate shield lens, and 100,000-hour L70 lifespan backed by a 5-year warranty.


Brand :
Eiko
Model Number :
AAL1-PS100-40T5-U
Shape :
Square
Optics :
Type V
Mounting :
Slip Fitter, Trunnion, Wall Adjustable, Wall Fixed
Voltage :
120-277V
Lumens :
14,000 / 11,200 / 8,400 lm
Watts :
100/80/60W
Color Temperature :
4000K
CRI :
80+
Dimmable :
Yes
Finish :
Bronze
Ratings :
DLC Premium, Wet Location
Safety Certification :
UL Listed
Dimensions (L x W x H) :
13.75" x 10.31" x 2.31"
Weight :
