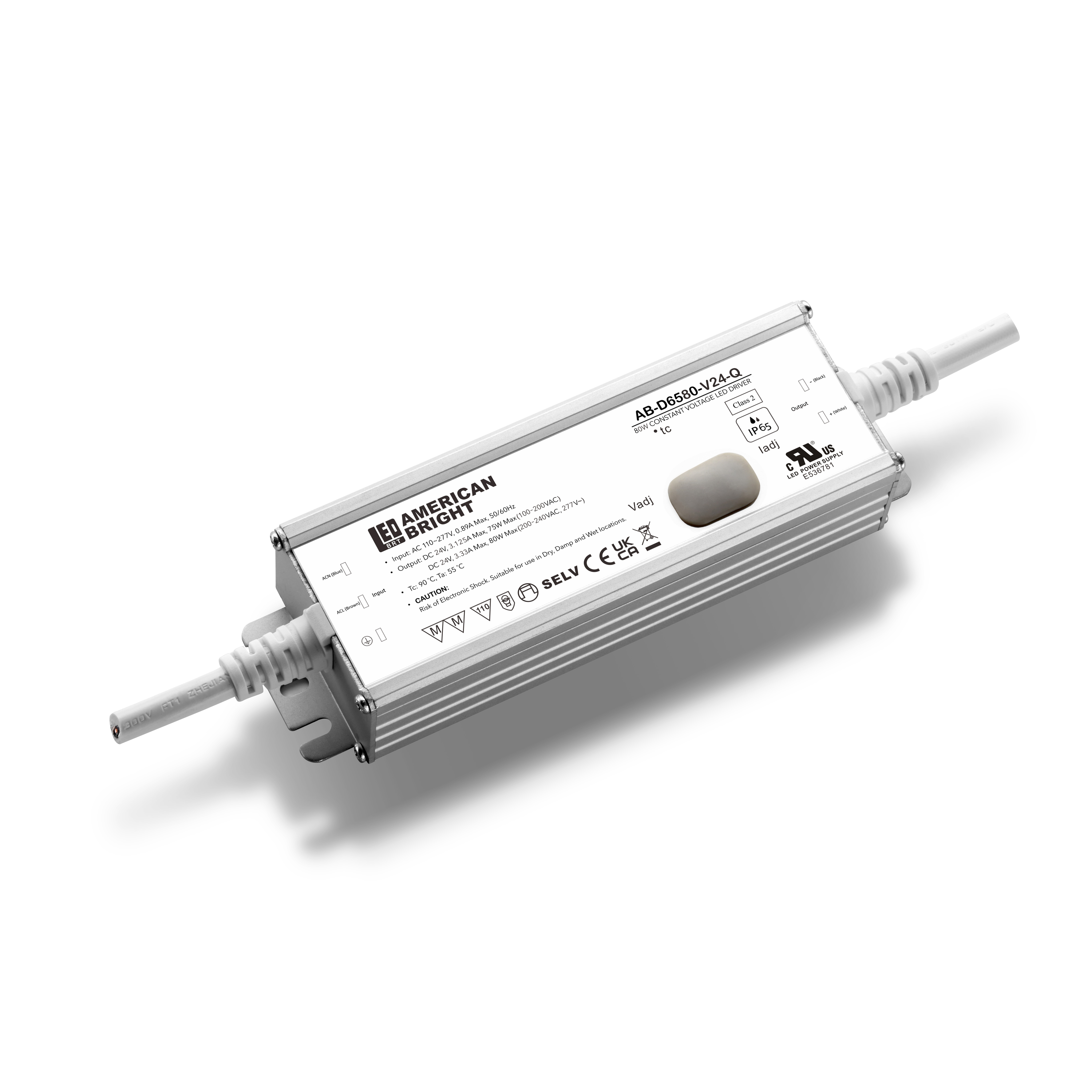

AB-D6580-V12-Q - Constant Voltage 80W, 12V by American Bright LED

AB-D6x80-Vxx-Q series is an outdoor waterproof power supply featuring the dual mode constant voltage and constant current output. Its input voltage range is 90-305Vac, with a high efficiency of up to 87.5%, fan-less design, working in the temperature range of - 40 ° C to + 55 ° C under free air convection. It has an ultra-high power factor, ultra-low total harmonic distortion, and low standby power consumption, with all-around protection functions such as lightning protection and waterproof function, which not only greatly improves the product's reliability, but also ensures the product's life cycle. This series is designed for LED lighting such as road lighting, floodlights, stage lighting, advertising lights, etc., suitable for almost all kinds of applications where LED lamps can be installed. The product is designed completely in accordance with the world's lighting equipment safety regulations to ensure the safety of both the user and the luminaire system during installation.

• Universal AC input / Full range (Max 305VAC)
• Built-in active PFC function
• P65/IP67, Metal Case, Suitable for dry, humid, and rainy environments
• Protections: Short circuit / Over Voltage / Over Temperature
• Adopt metal shell and internal glue filling, which can be used in dangerous situations
• Built-in lightning protection device can meet the requirements of DM 4KV / CM 6kV
• Compliance with worldwide safety regulations for lighting
• 5 Years Warranty
