Home Area, Site, and Roadway AR Area Light Roadway Series by SLG
Specification Sheet
Installation Instructions
Dimensions

AR Area Light Roadway Series by SLG

From : $238.33

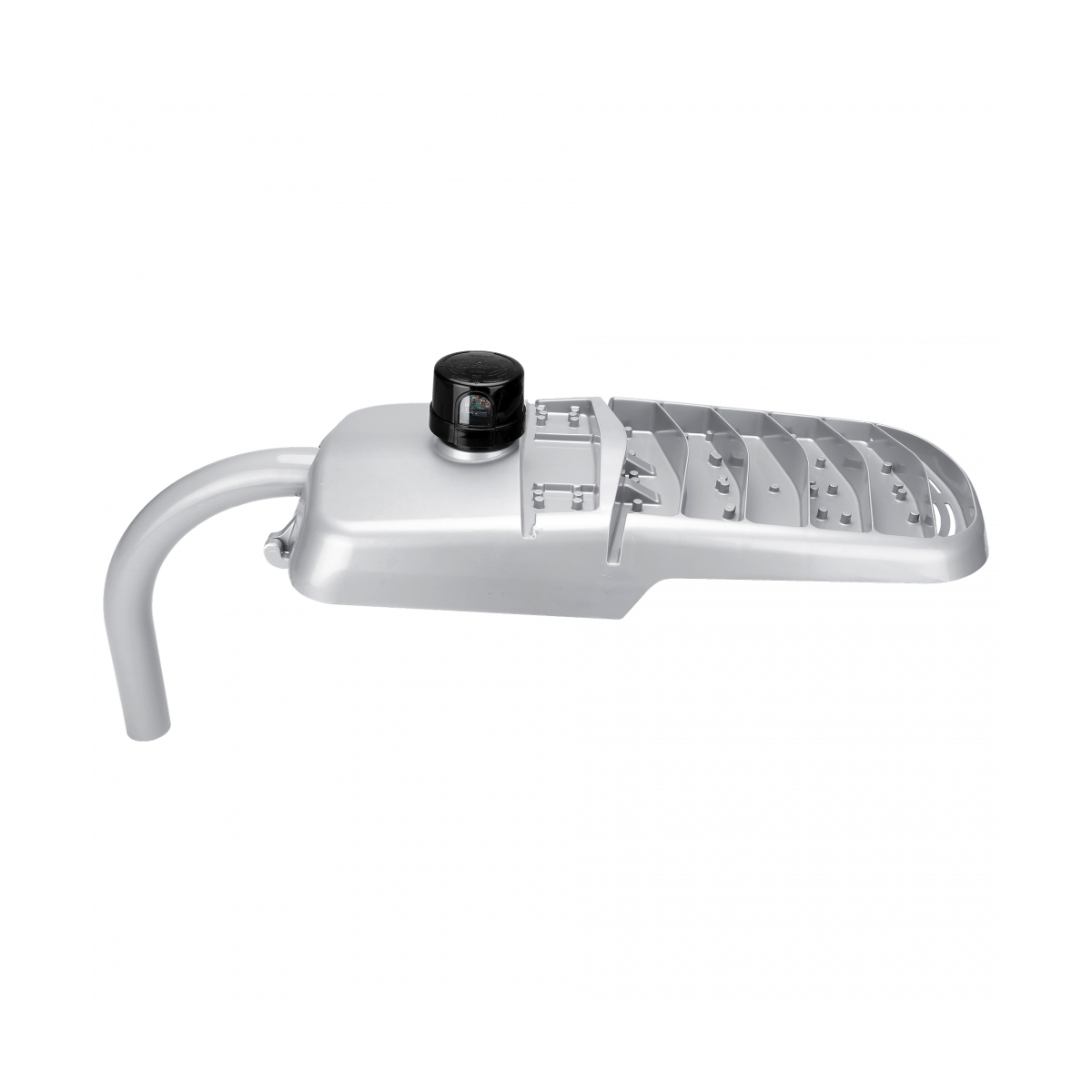

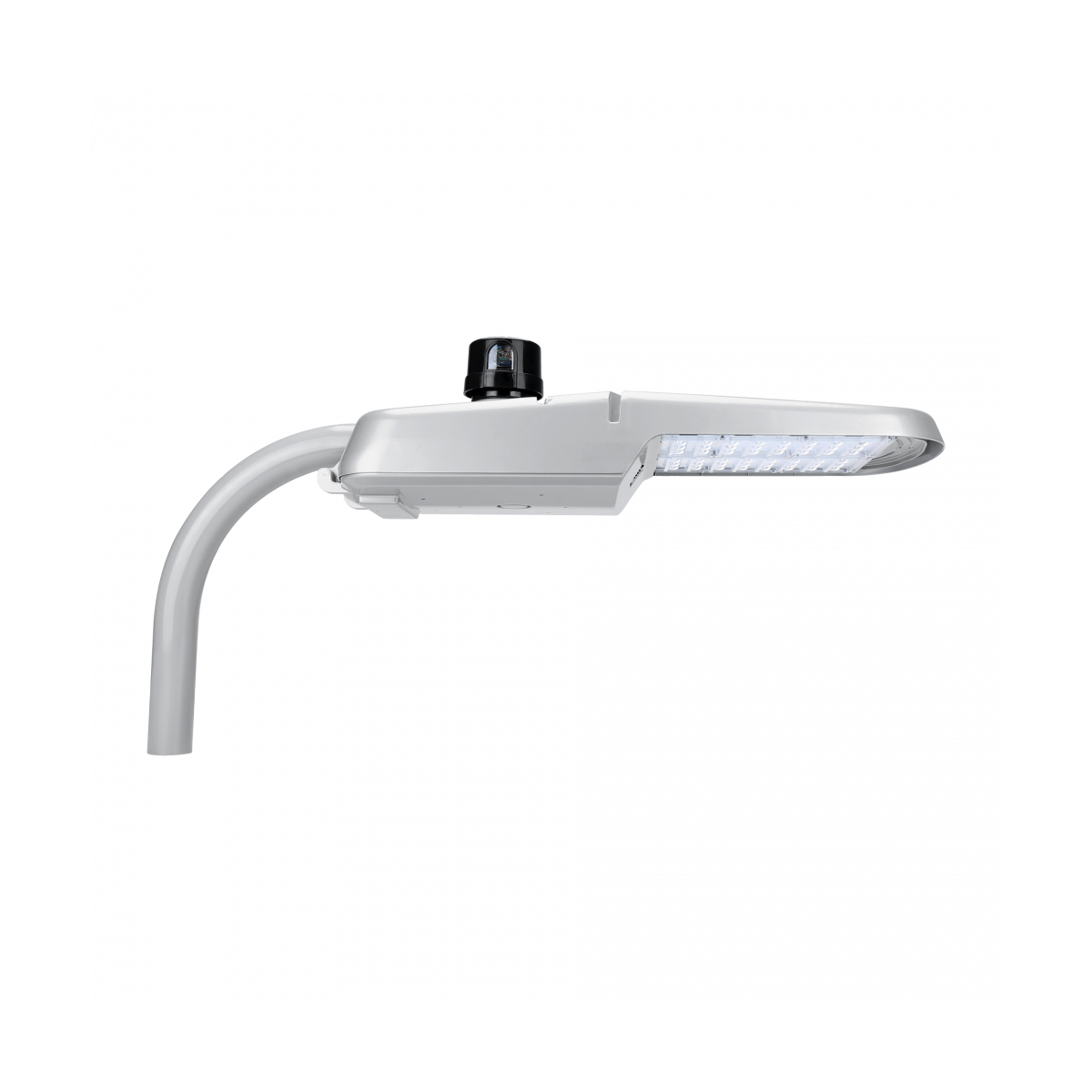

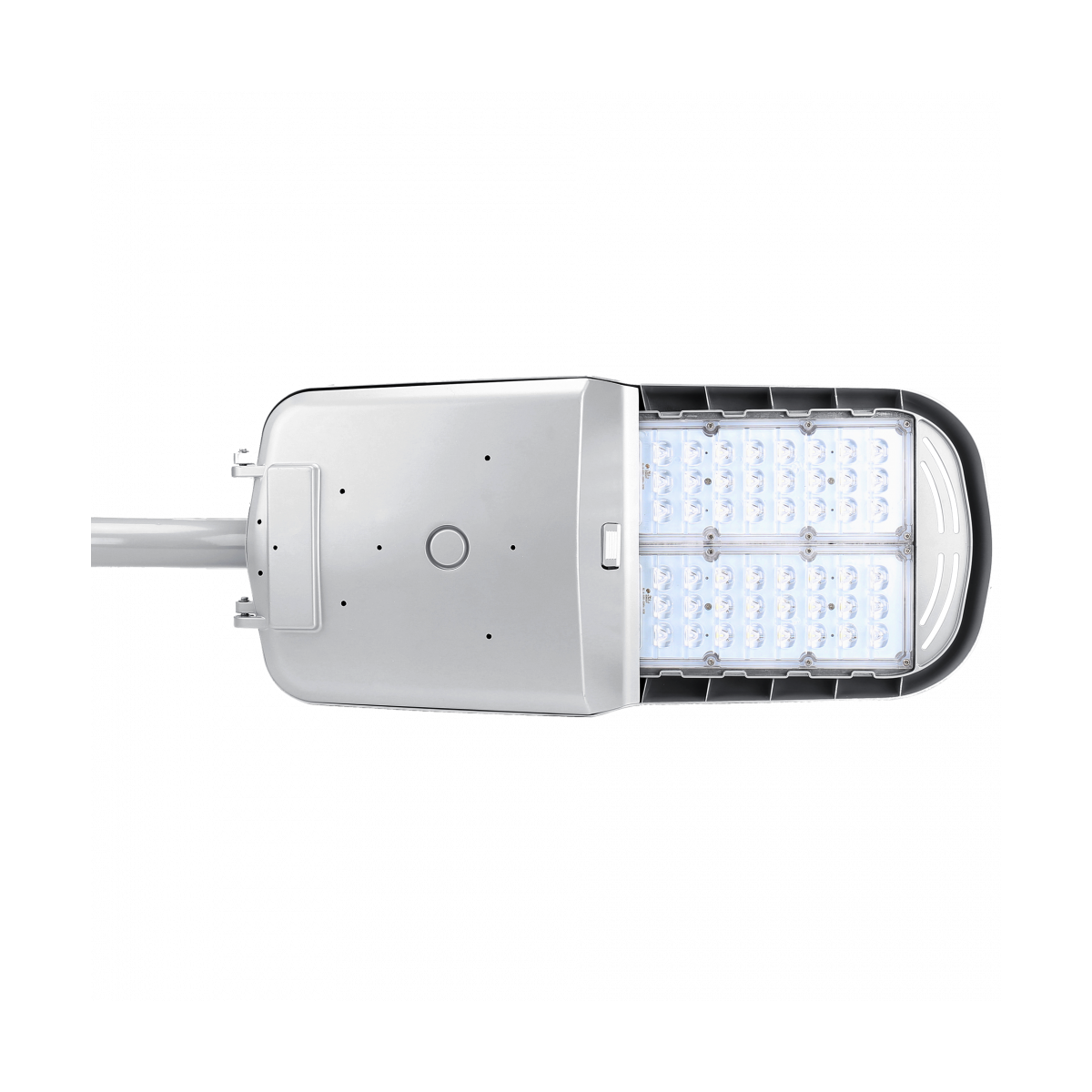

The AR Roadway Series Gen 1 luminaire provides superior optical performance and outstanding versatility for a wide variety of area and roadway applications. Features include single latch toolless entry, industry leading surge protection options and high lumen maintenance and performance.

Housing: One-piece die-cast aluminum housing for optimal thermal management with conductive and convective cooling. The driver is directly assembled on the casting for low operating temperature and long server life. The removable door is 3G vibration rated that follows roadway and area lighting standards set by ANSI C136.31. This fixture is UL listed for wet locations.

Applications: Parking Lots, Walkways, Roadways, Plazas and Campuses


Power :
Voltage :
Color Temperature :
Brand :
SLG
Model Number :
AR-XX-T3-G1
Shape :
Rectangular
Optics :
Type III
Mounting :
Direct To Pole
Voltage :
120-277V, 347-480V
Lumens :
6,350-20,000 lm
Watts :
45W-150W
Color Temperature :
4000K, 5000K
CRI :
70+
Dimmable :
Yes
Finish :
Silver
Ratings :
DLC Premium, IP66, Wet Location
Safety Certification :
UL Listed

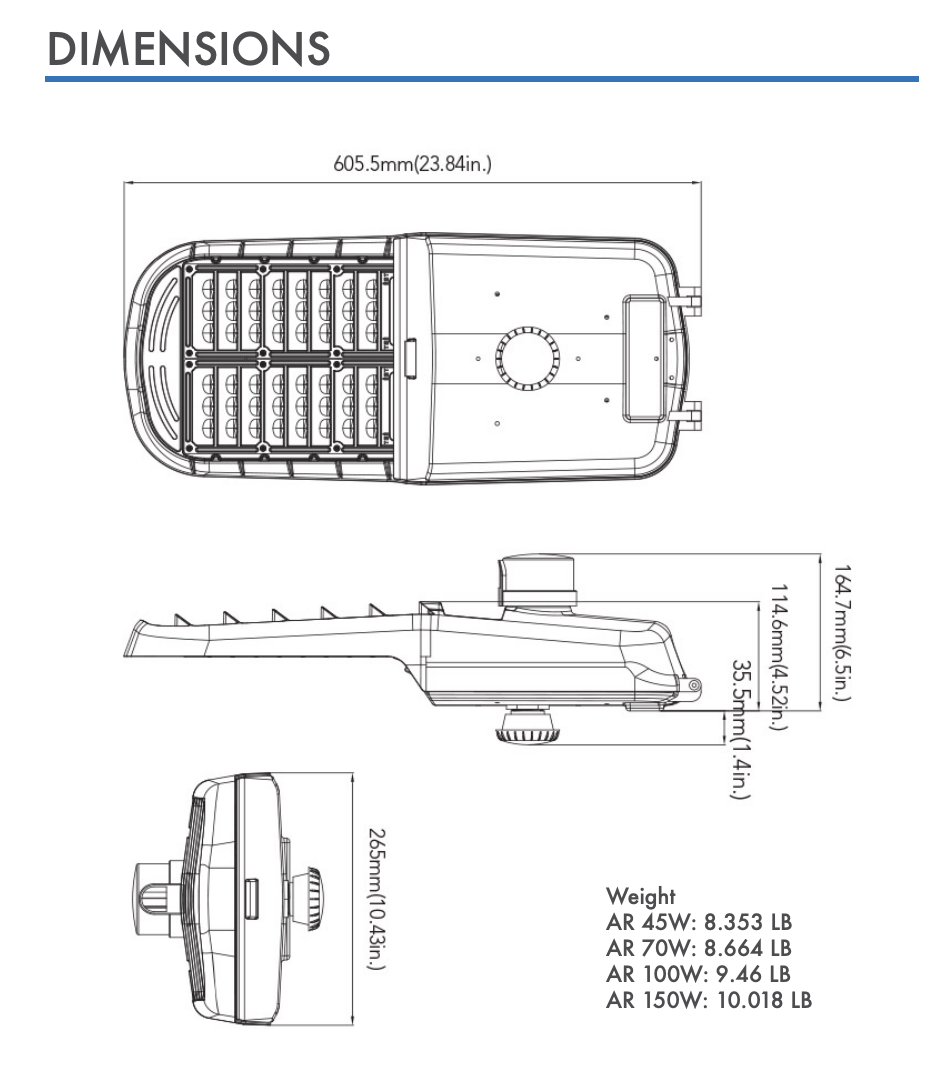

Dimensions (L x W x H) :
23.84" x 10.43" x 7.9"
Weight :
8.5
