Home High and Low Bays UHB2 High Voltage Premium High Bay UFO by ASD
Specification Sheet

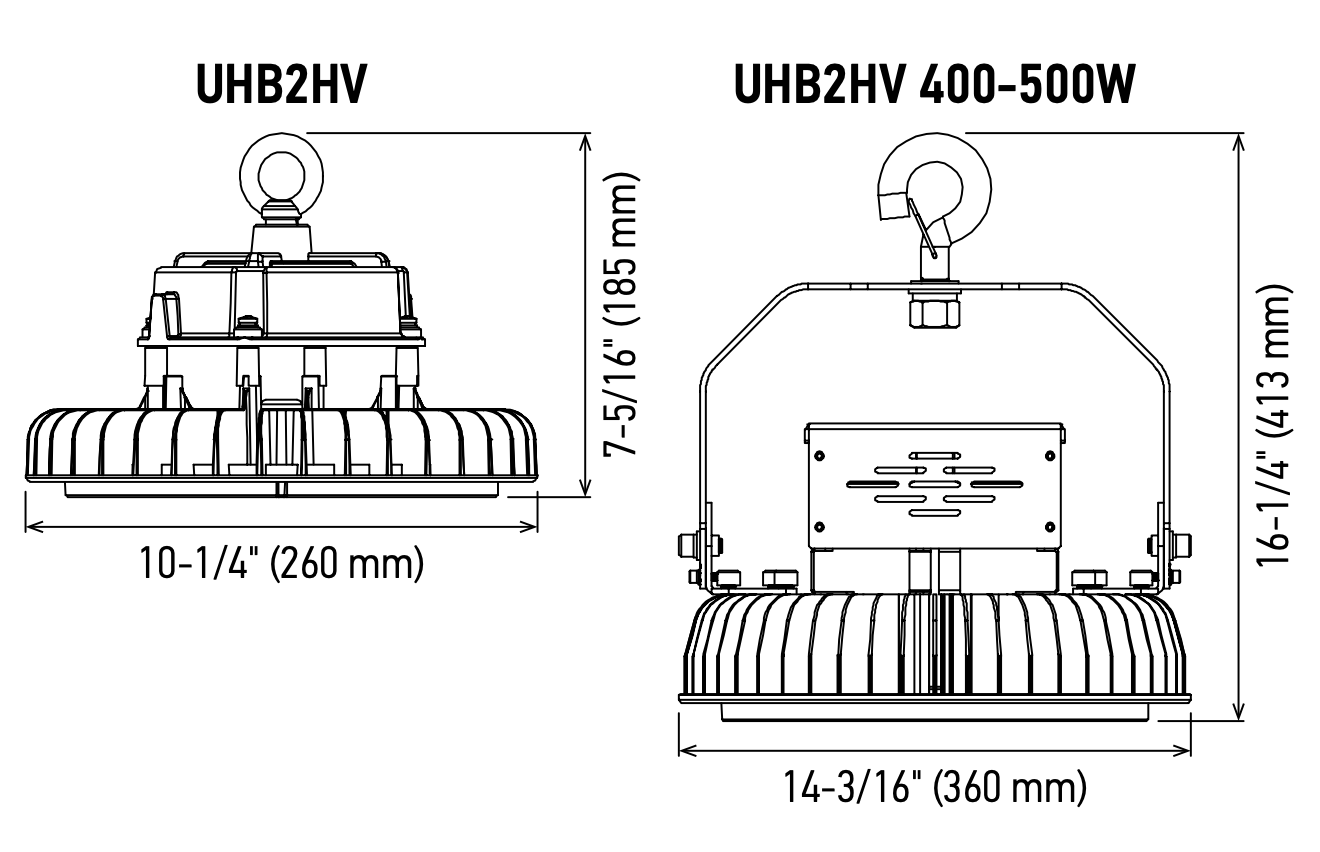

Dimensions

UHB2 High Voltage Premium High Bay UFO by ASD

From : $570.60

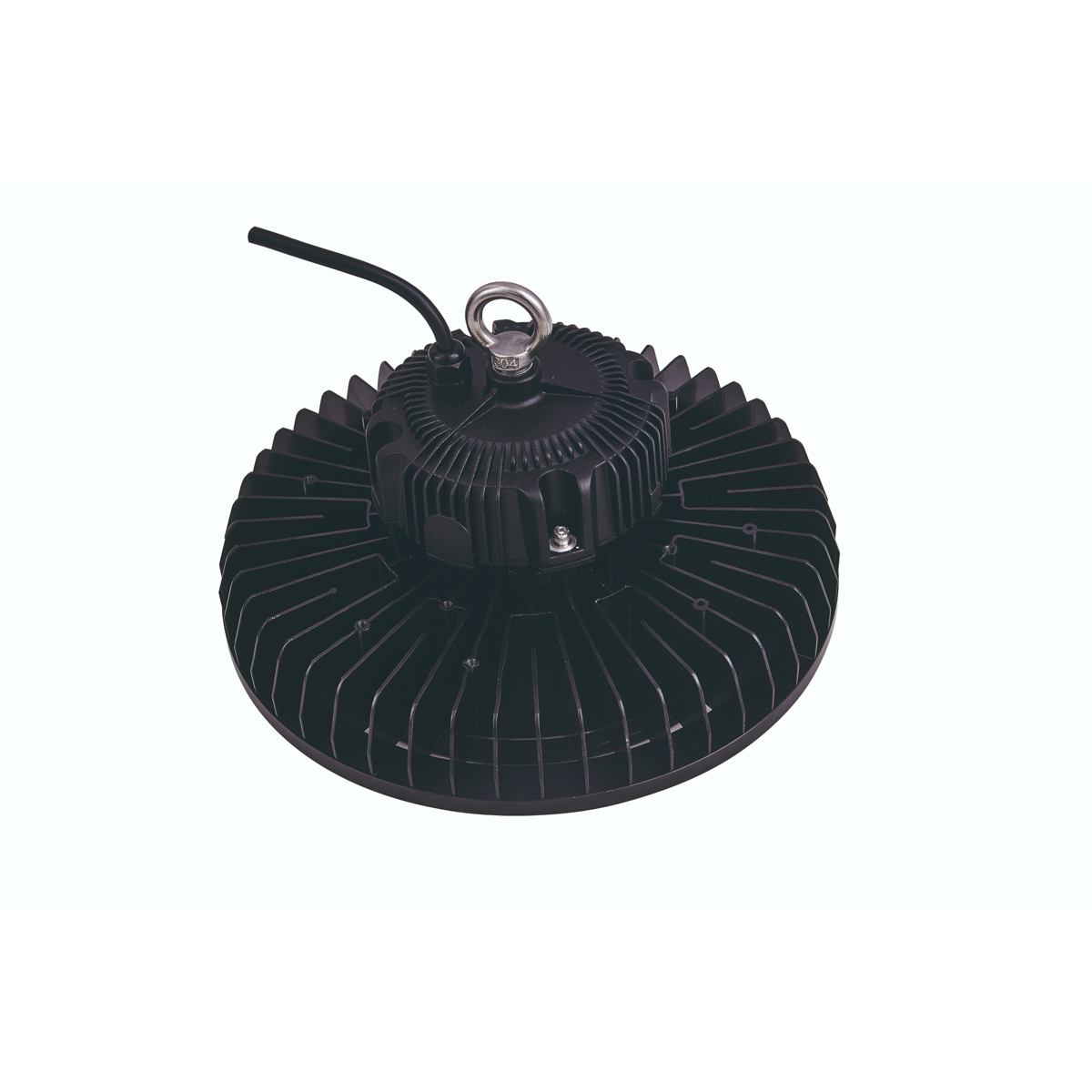

DESIGN. LED UFO HIGH BAY is extremely efficient with a 150lm/W output. Die-cast aluminum housing with excellent heat dissipation along with an antiglare PC lens provide many years of use. It can operate in temperatures ranging from -40 to 140°F. It is designed to operate on 277-480V circuits with a 0-10V dimmable driver.

IP69K rating provides protection against ingress of dust and high temperature, high pressure water.

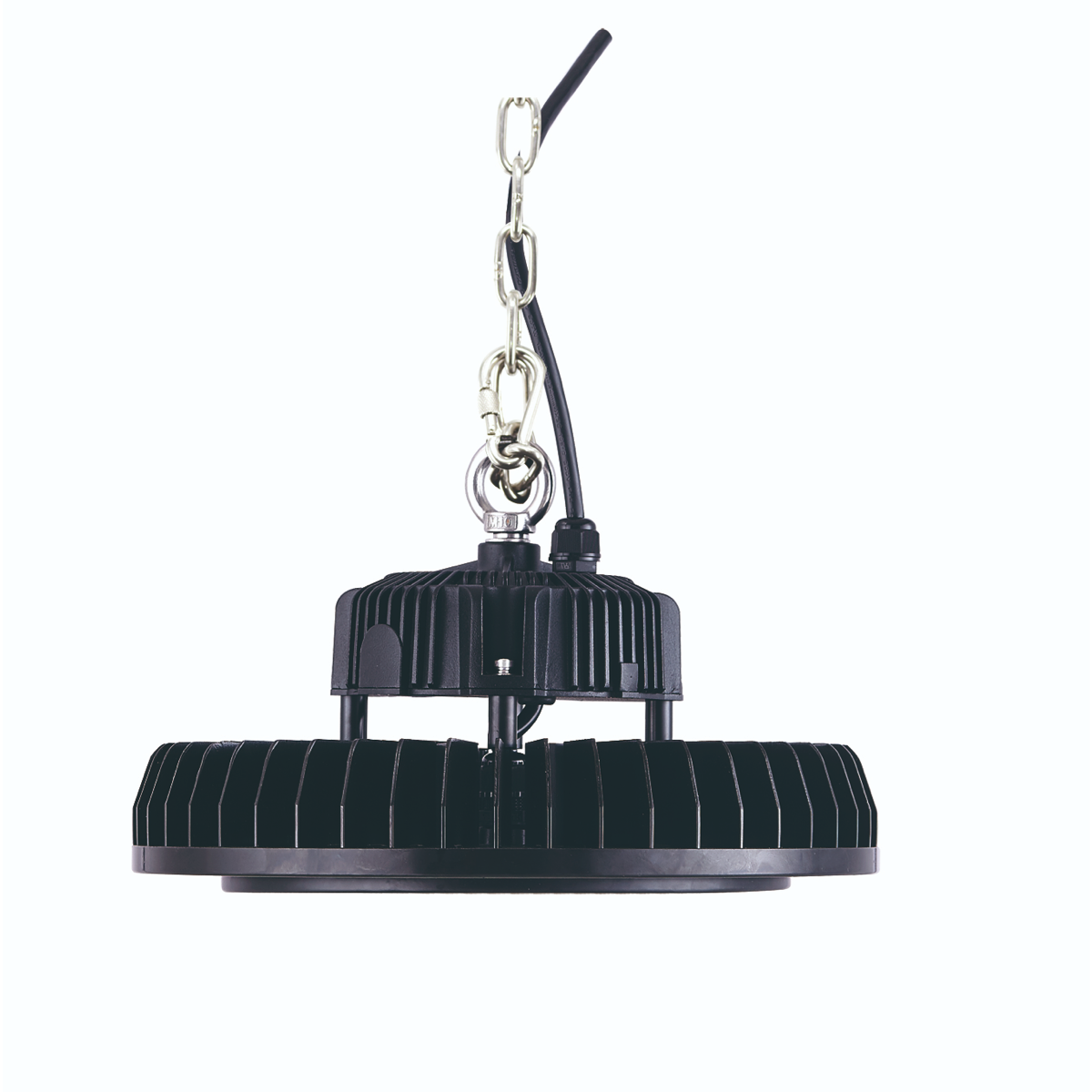

INSTALLATION. This fixture has three different mounting options: suspended, surface, and pendant. It comes with 4 ft cord. Perfect commercial or industrial solution for warehouses, supermarkets, retail stores, gyms, and many other applications.

ADVANTAGES. With calculated lifespan up to 152,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!



Note: Product has been discontinued by manufacturer. Available while supplies last.


Wattage :
Sensor :
Remote Control for Sensor :
Emergency Battery Backup :
Remote Control for Battery Backup :
Hook :
Pendant Mount Bracket :
Surface Mount Bracket :
Lens :
Reflector :
Brand :
ASD
Model Number :
ASD-UHB2HV
Type :
UFO
Lumens :
22,500 and 70,000 lm
Watts :
150W, 200W, 300W, 400W, 500W
Voltage :
277-480V
Color Temperature :
5000K
CRI :
70+
Optics :
Wide
Mounting :
Ceiling, Pendant, Suspended
Environment :
Dry Location, IP65, Wet Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
IP65, IP69, Wet Location
Safety Certification :
DLC 5.1 Premium, UL
Dimensions (L x W x H) :
14.19" x 14.19" x 12.13"
Weight :
6.6
