Home Troffers ASD-BSP-24A50 2x4 30/40/50W BSP Series LED Back-Lit Surface Mount Panel, 3CCT Selectable by ASD
Specification Sheet

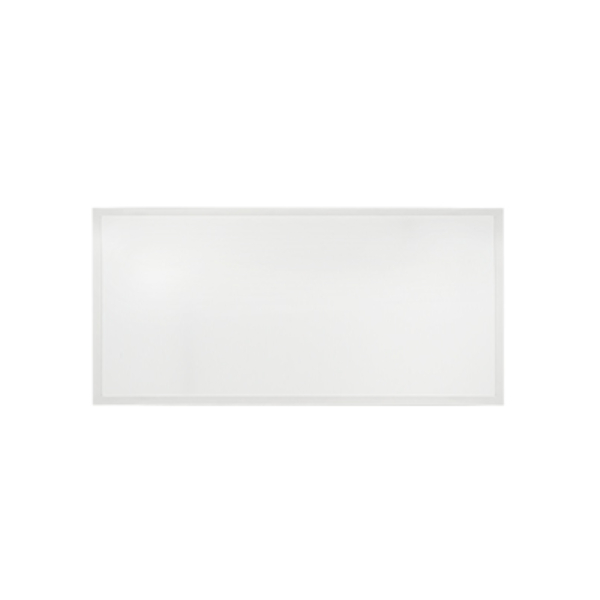

ASD-BSP-24A50 2x4 30/40/50W BSP Series LED Back-Lit Surface Mount Panel, 3CCT Selectable by ASD

$126.40

The ASD-BSP-24A50 is a 2x4 LED back-lit surface mount panel featuring selectable 30W/40W/50W output and selectable 3500K/4000K/5000K color temperatures. Operating on 120–277V with 0–10V dimming, it delivers up to 6,214 lumens with a CRI of 80+. The fixture features a durable commercial-grade housing with an anti-corrosion aluminum frame, anti-glare PS lens, and includes all required surface mounting hardware for fast installation, making it ideal for offices, hospitals, schools, retail spaces, workshops, and other commercial or industrial applications.


Brand :
ASD
Model Number :
ASD-BSP-24A50
Type :
Back Lit
Size :
2x4
Lumens :
6,214 lm
Watts :
Selectable 30W/40W/50W
Color Temperature :
3500K, 4000K, 5000K, Color Selectable
CRI :
80+
Voltage :
120-277V
Driver :
0-10V
Dimmable :
Yes
Environment :
Damp Location
Ratings :
Damp, DLC Premium
Safety Certification :
ETL Listed
Dimensions (L x W x H) :
47.81" x 23.75" x 1.75"
