Home
Cylinders
BETA 3” Square Cylinder Warm Dim by Alphabet
Additional Information
Specification Sheet
Download

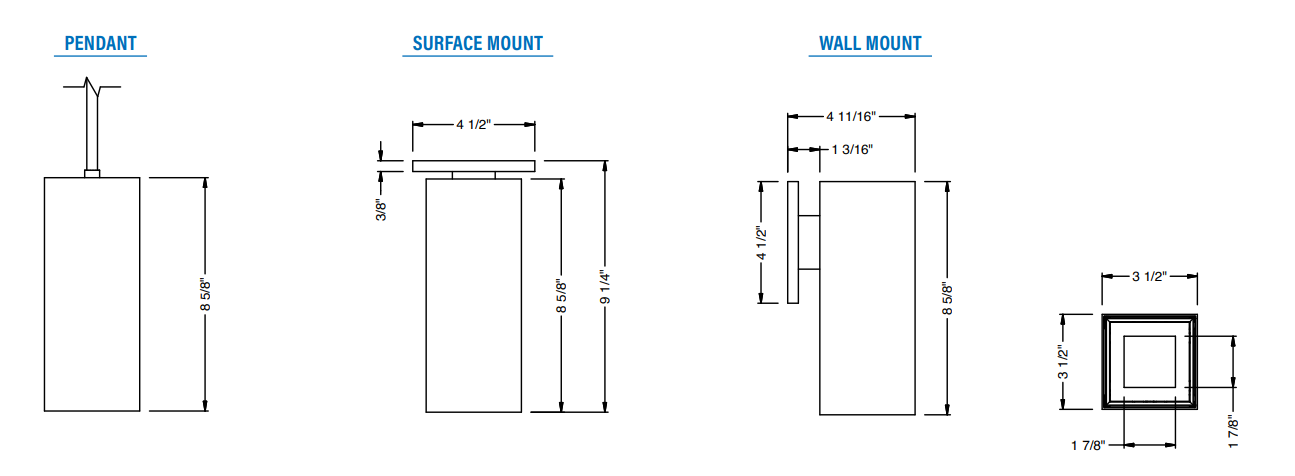

Dimensions
Download

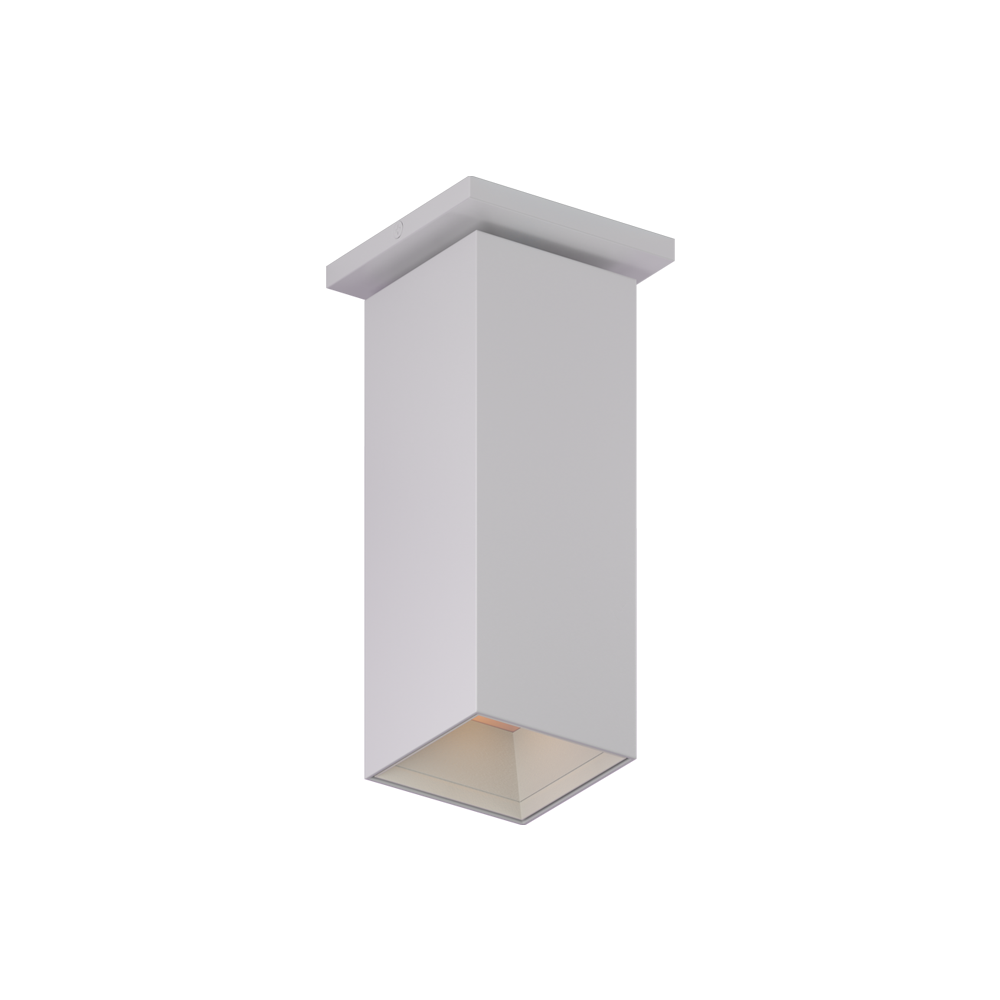

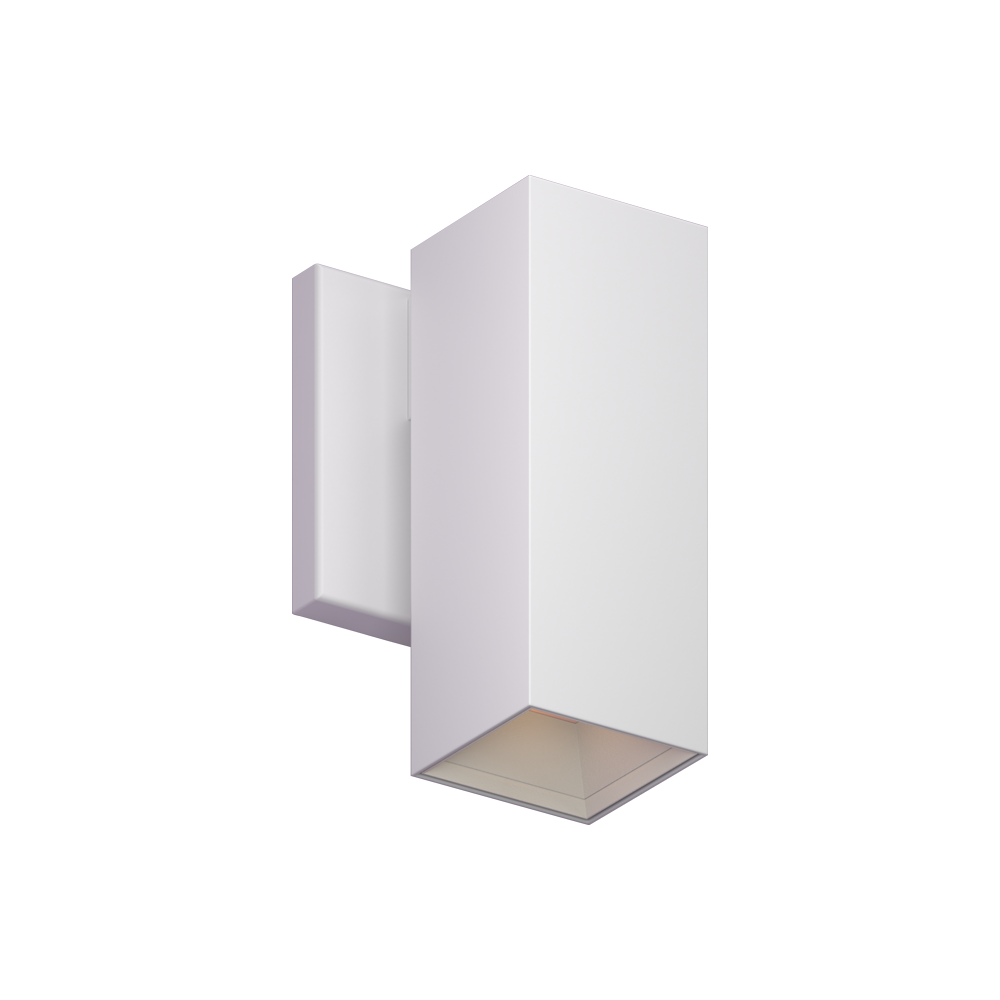

BETA 3” Square Cylinder Warm Dim by Alphabet
From :
$475.00
Seamless extrusion with powder coated finish for clean aesthetics
Thermally optimized for longevity
60° - 80° beam spread
UGR < 19
Micro slim canopy option at 1/4"-3/8" depth plus 1/2" diameter stem.
Multiple mounting, glare control options, trims and finishes available
ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
Suitable for dry and damp locations
Made in the USA - meets the requirements of the Buy American provision within the ARRA
5 Year Limited warranty
Lumens :
Choose an option
810 lm (10LM)
1160 lm (15LM)
Color Temperature (CCT) :
Choose an option
3000K, dim to 1800K (3018)
CRI :
Choose an option
97 CRI (97)
Optic and LM Multiplier :
Choose an option
65° high efficiency diffused lens (HE65)
80° high efficiency diffused lens (HE80)
65° diffused with clear lens (D65)
75° brilliant white with clear lens (WH75)
Trim Color :
Choose an option
Black (BK)
White (WH)
Matte Chrome (MC)
Bezel Color :
Choose an option
Black (BK)
White (WH)
Matte Chrome (MC)
Bronze (BZ)
Wheat (WT)
Mounting Options :
Choose an option
Wall Mount (W)
Surface Mount (S)
Pendant, 108" flexible cord (P)
Conduit Junction Box Cover with knockouts, surface (JCOV-S)
Rigid Pendant 4' stem with swivel stem/canopy (RP)
Rigid Pendant 5' stem with swivel stem/canopy (RP5)
Rigid Pendant 6' stem with swivel stem/canopy (RP6)
Rigid Pendant 8' stem with swivel stem/canopy (RP8)
Rigid Pendant 10' stem with swivel stem/canopy (RP10)
Rigid Pendant 2' with fixed stem/canopy (RPF2)
Rigid Pendant 3' with fixed stem/canopy (RPF3)
Rigid Pendant 4' with fixed stem/canopy (RPF4)
Rigid Pendant 6' with fixed stem/canopy (RPF6)
Conduit Junction Box Cover with knockouts, complete XX code with desired pendant mount (JCOV-XX)
Voltage :
Choose an option
120V (120)
120V-277V (UNV)
Dimming :
Choose an option
0-10V dimming to 1% (DIM10)
Lutron Hi-lume Premier Ecosystem dimming to 0.1%, Soft-on & Fade-to-Black (LUTP)
leading & trailing edge (Triac/ELV) dimming to 1% (ELV1)
Casambi Bluetooth control with flicker free 1% dimming (CAS)
Emergency Battery Back-Up :
Choose an option
Remote Emergency Battery Backup, 90 minutes at 7 watts to LED (EM7)
Remote Emergency Battery Backup, 90 minutes at 12 watts to LED (EM12)
Remote Emergency Battery Backup, 90 minutes at 10W to LED, CA title 20 (EM10CA20)
X clear
Add to Cart
Brand :
Alphabet
Model Number :
BETA-3Q-WD
Mounting :
Pendant, Surface, Wall Mount
Type :
Adjustable, Direct
Aperture :
3"
Shape :
Square
Lumens :
810 lm - 1160 lm
Watts :
11 - 17W
Input Voltage :
120-277V
Color Temperature :
Dim to Warm
CRI :
97
Beam Angle :
65° - 80°
Dimmable :
0-10V, Casambi, ELV, Lutron EcoSystem, Triac
Dimensions (L x W x H) :
3.50" x 3.50" x 8.63"
