Home
Cylinders
BETA 4” Square Cylinder Standard White by Alphabet
Additional Information
Specification Sheet
Download

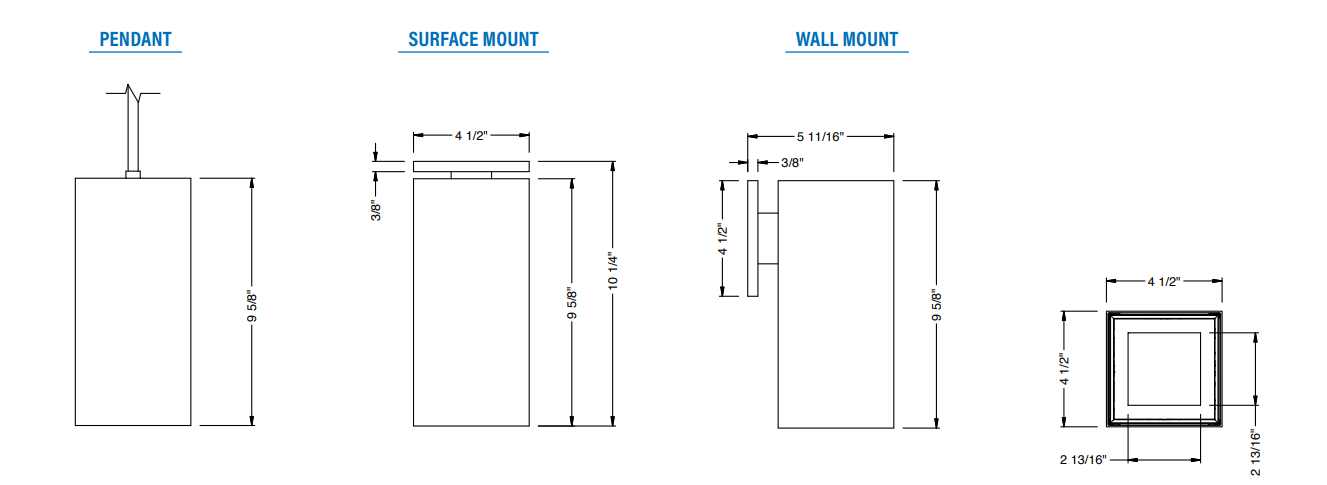

Dimensions
Download

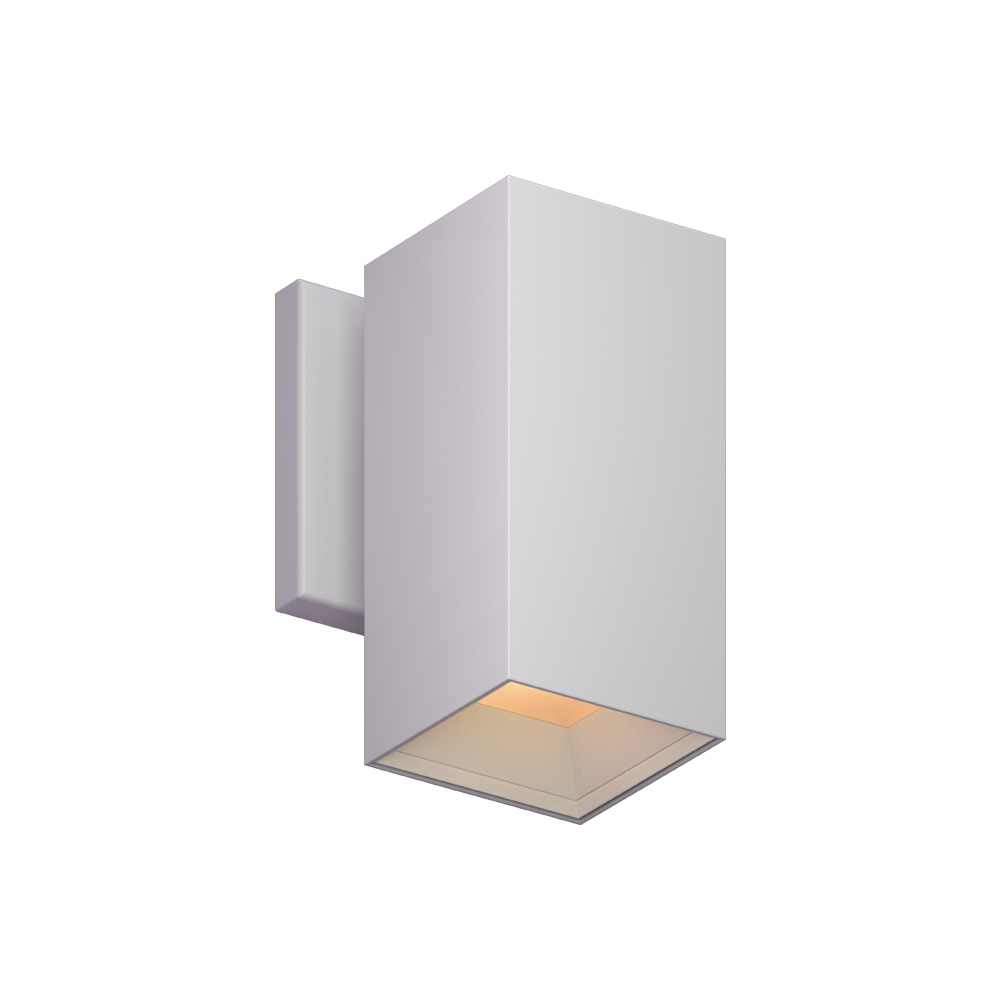

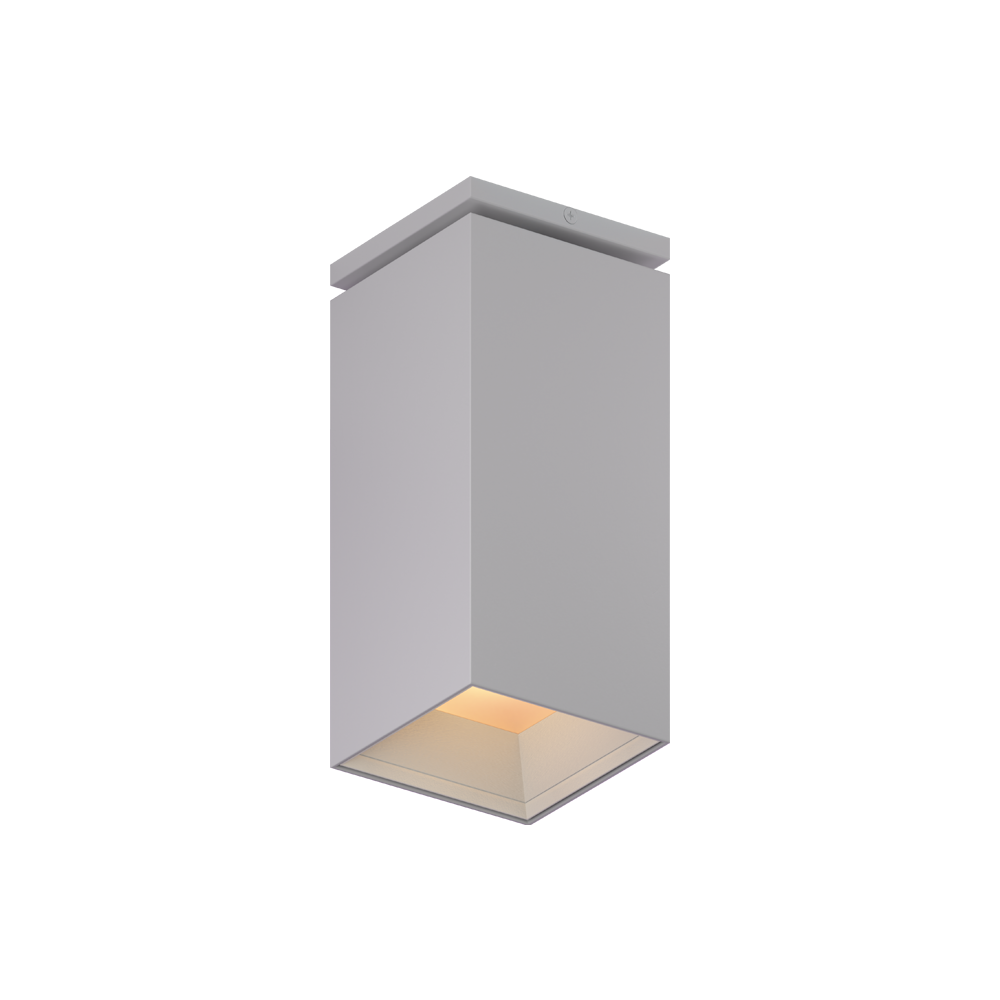

BETA 4” Square Cylinder Standard White by Alphabet
From :
$408.33
Seamless extrusion with powder coated finish for clean aesthetics
Thermally optimized for longevity
60° - 80° beam spread
UGR < 19
Micro slim canopy option at 1/4"-3/8" depth plus 1/2" diameter stem
Multiple mounting, glare control options, trims and finishes available
ULus Listed to UL1598 & UL2108; cUL Listed to CSA C22.2 #250.0
Suitable for dry and damp locations
5 Year Limited warranty
Lumens :
Choose an option
1120 lm (10LM)
1350 lm (15LM)
1870 lm (20LM)
2160 lm (25LM)
2900 lm (30LM)
3590 lm (35LM)
Color Temperature (CCT) :
Choose an option
2700K (27K)
3000K (30K)
3500K (35K)
4000K (40K)
CRI :
Choose an option
80 CRI (80)
90 CRI (90)
Optic and LM Multiplier :
Choose an option
60° high efficiency diffused lens (HE60)
70° high efficiency diffused lens (HE70)
80° high efficiency diffused lens (HE80)
65° diffused with clear lens (D65)
80° brilliant white with clear lens (WH80)
Bezel Lens :
Choose an option
No Lens (NL)
Finish :
Choose an option
Black (BK)
White (WH)
Matte Chrome (MC)
Bezel Color :
Choose an option
Black (BK)
White (WH)
Matte Chrome (MC)
Bronze (BZ)
Wheat (WT)
Mounting Options :
Choose an option
Wall Mount (W)
Surface Mount (S)
Pendant, 108" flexible cord (P)
Conduit Junction Box Cover with knockouts, surface (JCOV-S)
Rigid Pendant 4' stem with swivel stem/canopy (RP)
Rigid Pendant 5' stem with swivel stem/canopy (RP5)
Rigid Pendant 6' stem with swivel stem/canopy (RP6)
Rigid Pendant 8' stem with swivel stem/canopy (RP8)
Rigid Pendant 10' stem with swivel stem/canopy (RP10)
Rigid Pendant 2' with fixed stem/canopy (RPF2)
Rigid Pendant 3' with fixed stem/canopy (RPF3)
Rigid Pendant 4' with fixed stem/canopy (RPF4)
Rigid Pendant 6' with fixed stem/canopy (RPF6)
Conduit Junction Box Cover with knockouts, complete XX code with desired pendant mount (JCOV-XX)
Voltage :
Choose an option
120V (120)
120V-277V (UNV)
Dimming :
Choose an option
0-10V dimming to 1% (DIM10)
Lutron Hi-lume Premier Ecosystem dimming to 0.1%, Soft-on & Fade-to-Black (LUTP)
leading & trailing edge (Triac/ELV) dimming to 1% (ELV1)
Casambi Bluetooth control with flicker free 1% dimming (CAS)
Emergency Battery Back-Up :
Choose an option
None
Remote Emergency Battery Backup, 90 minutes at 7 watts to LED (EM7)
Remote Emergency Battery Backup, 90 minutes at 12 watts to LED (EM12)
Remote Emergency Battery Backup, 90 minutes at 10W to LED, CA title 20 (EM10CA20)
X clear
Add to Cart
Brand :
Alphabet
Model Number :
BETA-4Q-SW
Mounting :
Pendant, Surface, Wall Mount
Type :
Adjustable, Direct
Aperture :
4"
Shape :
Square
Lumens :
1120 lm - 3590 lm
Watts :
11 - 37W
Input Voltage :
120-277V
Color Temperature :
2700K, 3000K, 3500K, 4000K, Color Selectable
CRI :
80, 90
Beam Angle :
60° - 80°
Dimmable :
0-10V, Casambi, ELV, Lutron EcoSystem, Triac
Dimensions (L x W x H) :
4.50" x 4.50" x 9.63"
