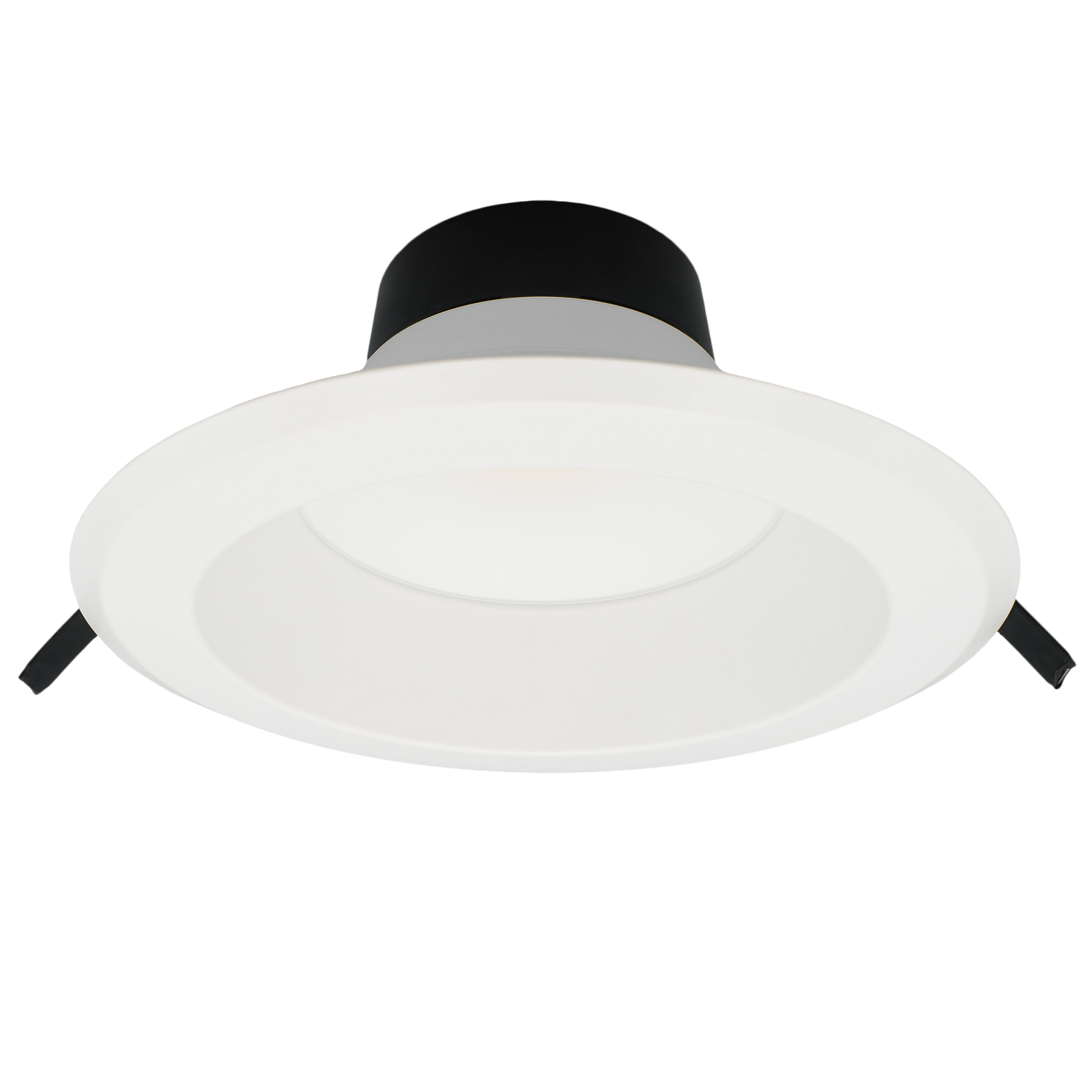

Capella 8" Commercial Downlight CCDL-8-LB3-9CP4-MV-LVD by ETI

$56.32

Part # CCDL-8-LB3-9CP4-MV-LVD

Model 63316101

8" Capella Commercial Downlight, 120V-277V, Color Preference, Lumen Boost

ETI Lighting's Capella Commercial Downlights offer quality and flexibility for 120-277V commercial applications—with 4 Color Preference, and 3 Lumen Boost. Luminaires have a deep recessed look with soft, diffused light quality for visual comfort and minimized glare.

These efficient commercial downlights have a classic feel, feature a 90+ CRI, and a wet-location rating. Ideal for new construction projects (can also be used for retrofits) in multifamily, retail, restaurants, hospitality, offices, and more.


Brand :
ETI
Model Number :
63316101
Style :
Fixed Recessed
Aperture Size :
8"
Shape :
Round
Lumens :
Selectable 2,400/ 2,800/ 3,300 lm
Watts :
Selectable 25/29/35W
Input Voltage :
120-277V
Color Temperature :

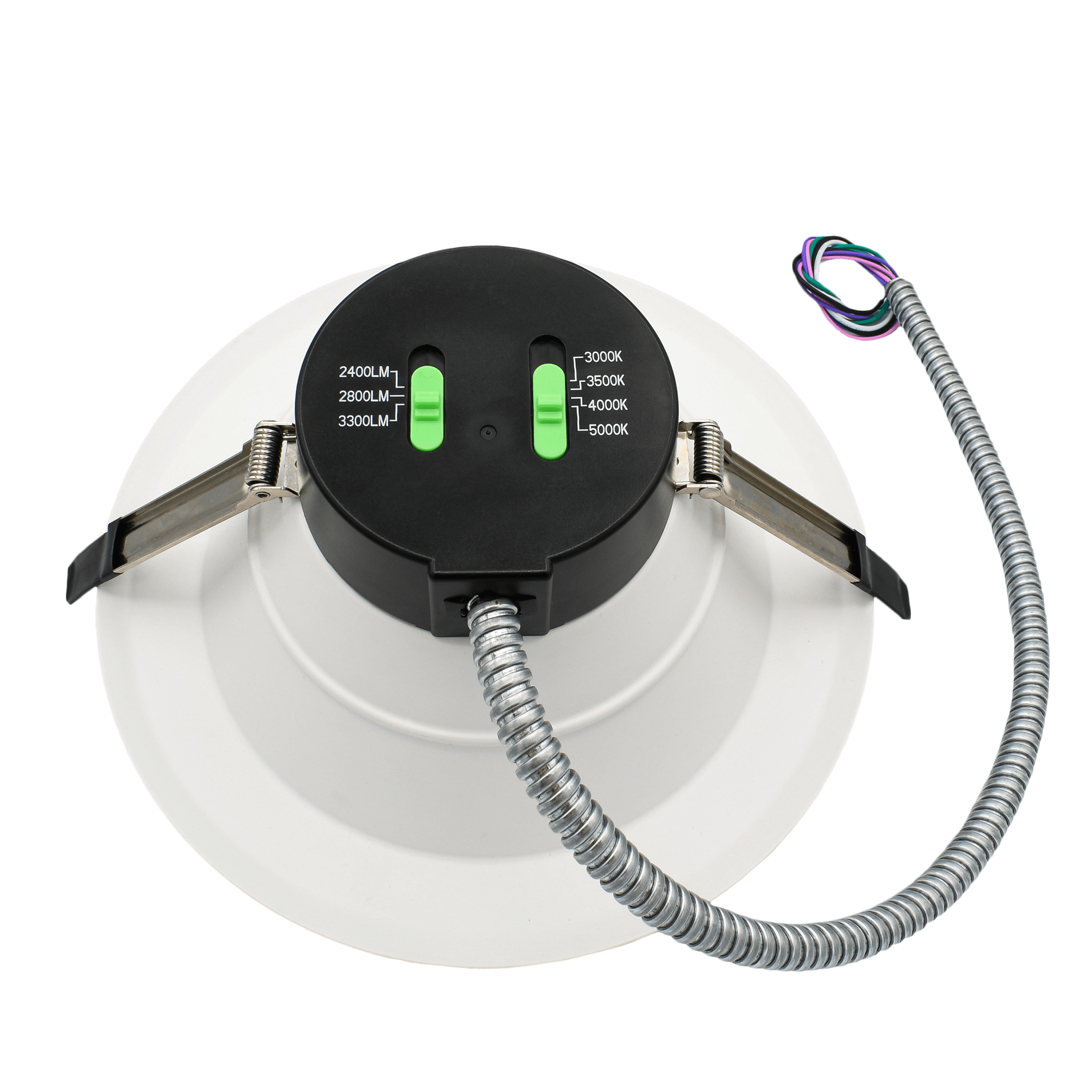

Selectable, 3000K, 3500K, 4000K, 5000K
CRI :
90+
Beam Angle :
91°
Housing :
Canless, IC Rated, Shallow - Low Profile
Dimmable :
Yes
Trim Finish :
White
Baffle Finish :
White
Ratings :
Energy Star, IC, JA8, Title 24, Wet
Safety Certification :
ETL Listed, FCC, RoHS Compliant
Dimensions (L x W x H) :
9.44" x 9.44" x 4.35"
