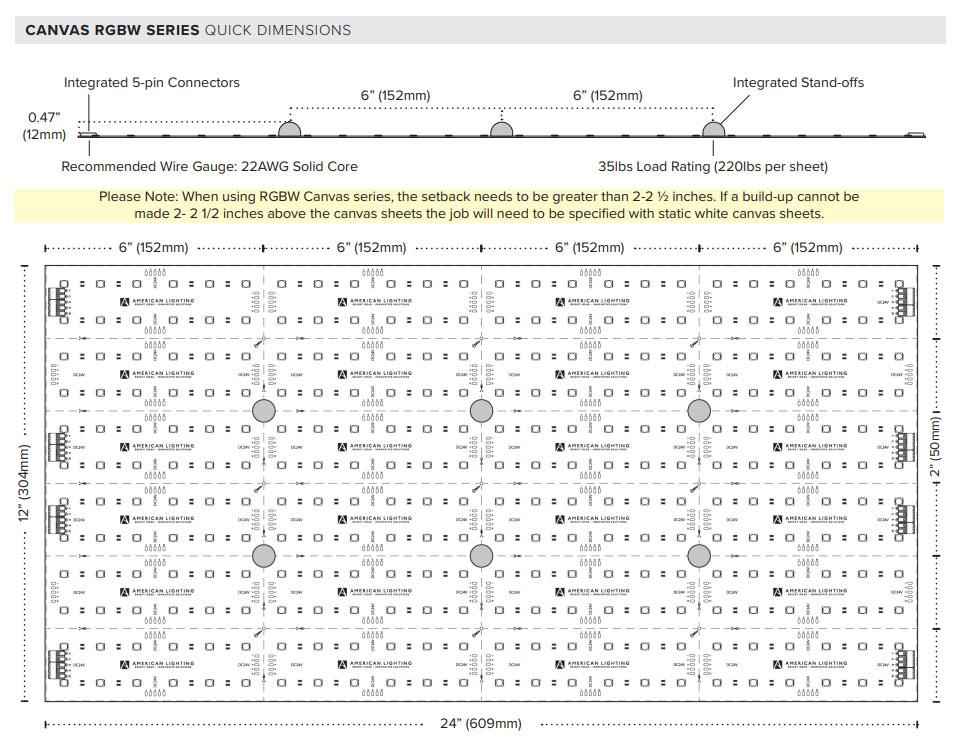

Dimensions

CNVS-RGBW-12x24 Canvas Sheet RGBW White Finish by American Lighting

$646.17

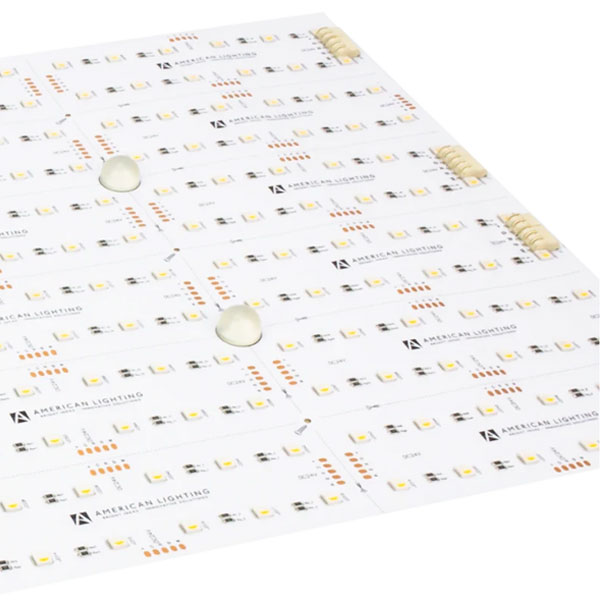

The Canvas Light Sheet is the ideal product for backlighting semi-transparent countertops and architectural features. Cut the 12” x 24” sheet to size at the job site to achieve a perfect fit for your application. Built-in spacers help lift your material a half-inch off the light sheet for a leveled and diffused effect.

  • 4-in-1 RGB + 3000K Warm White
  • Ideal for backlighting semi-translucent materials
  • Up to 1000Lm output performance per sheet
  • Available in 12”H x 24”W sheet size
  • Field cuttable on-site for an accurate fit
  • 6” x 2” Cuttability and 1” X 1” LED spacing
  • 3M peel and stick backing for quick installation
  • Built-in terminal ports make it easy to run power from any side
  • Integrated 1/2” stand-offs spaced every 6 inches:
  • Each Stand-off is rated up to 35lb load rating (220lbs per sheet)




Brand :
American Lighting
Model Number :
CNVS-RGBW-12x24
Type :
Flexible LED Sheet
Mounting :
Self-Adhesive Tape
Input Voltage :
24V
Environment :
Interior
CRI :
90+
Color Temperature :
3000K, RGBW
Lumens per Foot :
Up to 500 lm
Dimmable :
PWM
Watts per Foot :
10W
Beam Angle :
120°
Maximum Distance :
2 ft.
Ratings :
Damp
